CDB01.1C-SE-EN2-EN2-EN2-EN2-L1-S-NN-FW

Request a quote

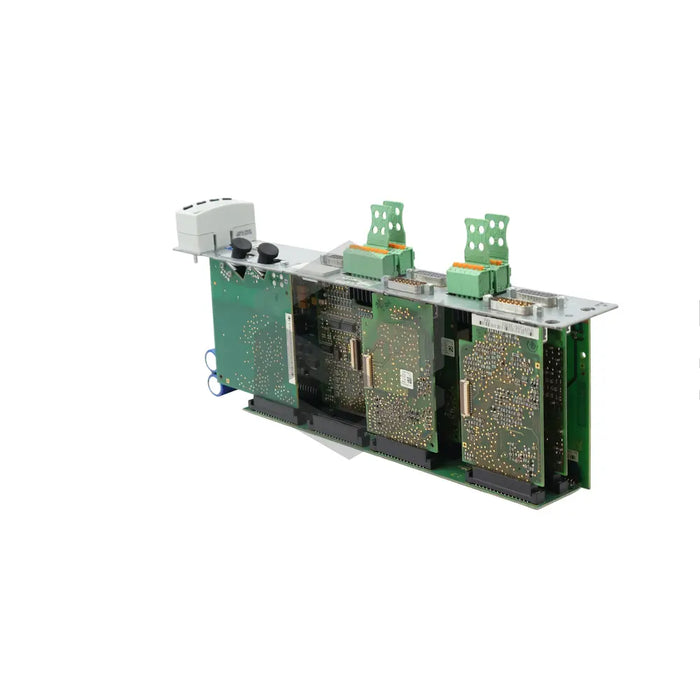

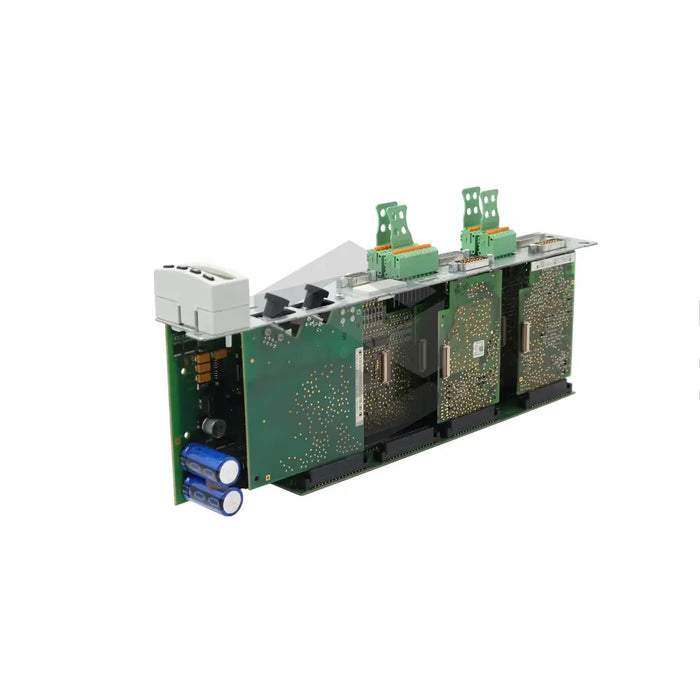

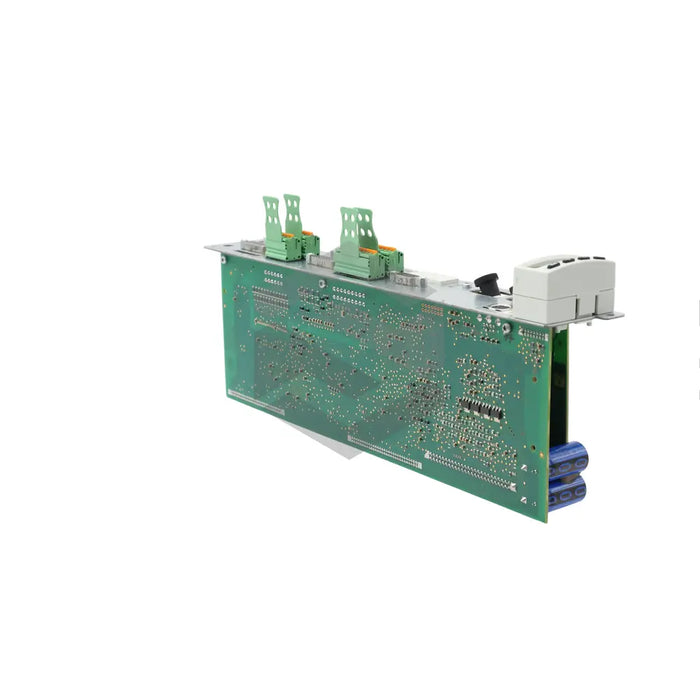

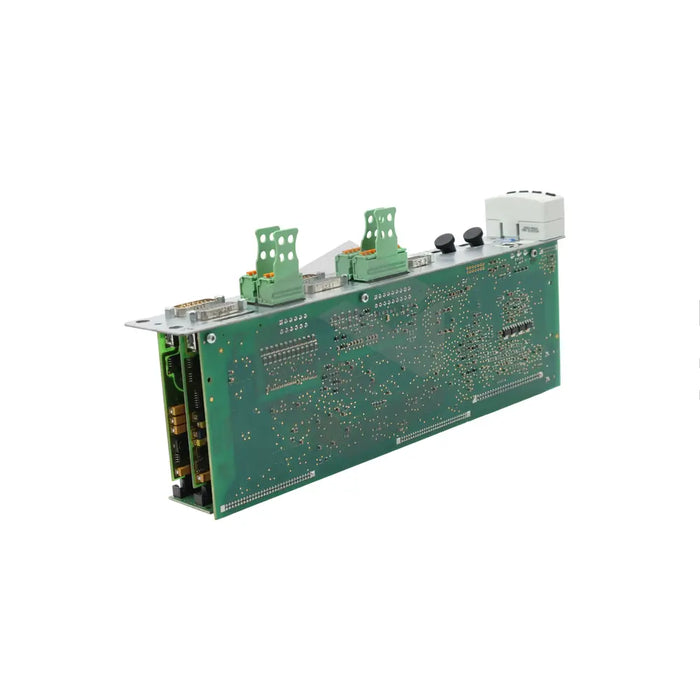

The Bosch Rexroth Indramat CDB01.1C-SE-EN2-EN2-EN2-EN2-L1-S-NN-FW is a customizable control section, adaptable for diverse customer necessities via the use of specific firmware and hardware modules. This modular unit comes equipped with five slots inclusive of pre-installed hardware modules, four of which are installed with encoder EnDat 2.1 modules. The fifth, reserved for security purposes, supports starting lockout. It uses a SERCOS master communication module and can also support single-axis positioning and analogue. The device is controllable from its built-in control panel with a display for monitoring and command inputting. The unit caters to dual-axis applications and includes an integrated RS-232 serial interface for communication with other compatible devices. All communication interfaces and module slots are front-facing on the unit, which is conventionally cooled and runs on 24 Volts DC located on the front panel. Operation is recommended under ambient conditions of 0 to 40 degrees Celsius and up to 1000 meters altitude. It should be handled only by qualified personnel.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: CDB01.1C-SE-EN2-EN2-EN2-EN2-L1-S-NN-FW
  • Product Type: Configurable Control Section
  • Modularity: Yes
  • Hardware and Firmware: Ordered Separately
  • Number of Plugin Module Slots: 5
  • Encoder Modules: EnDat 2.1 modules in Slots 1 to 4
  • Safety Module: Safety Module Supporting Starting Lockout in Slot 5
  • Master Communication Module: SERCOS
  • Control Configurability: Standard Control Panel with Display and Keypad
  • Application: Double-Axis
  • Integrated Interface: RS-232 Serial Interface
  • Unit Mounting: Vertical
  • Power Supply: 24 Volts DC
  • Cooling Method: Convection
  • Operating Temperature: 0 to 40 Degrees Celsius
  • Operating Altitude: 0 to 1000 Meters
  • Handling: Qualified Personnel Only
