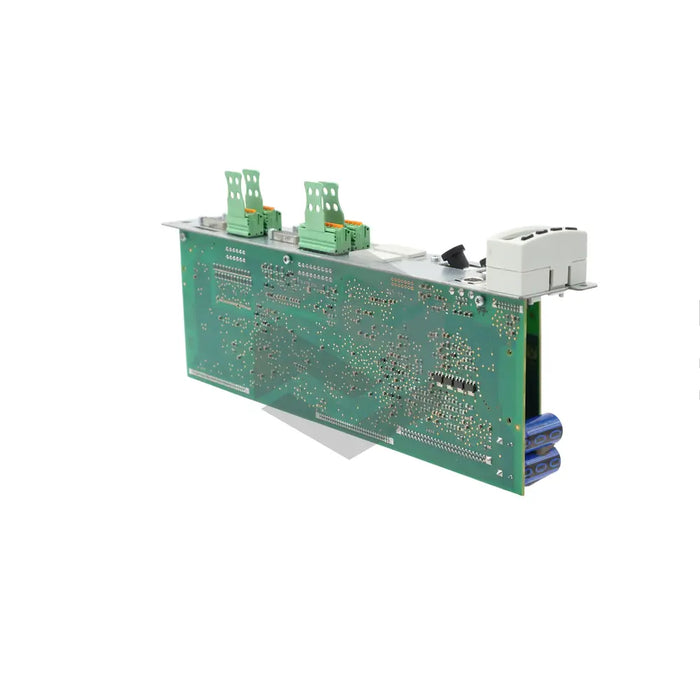

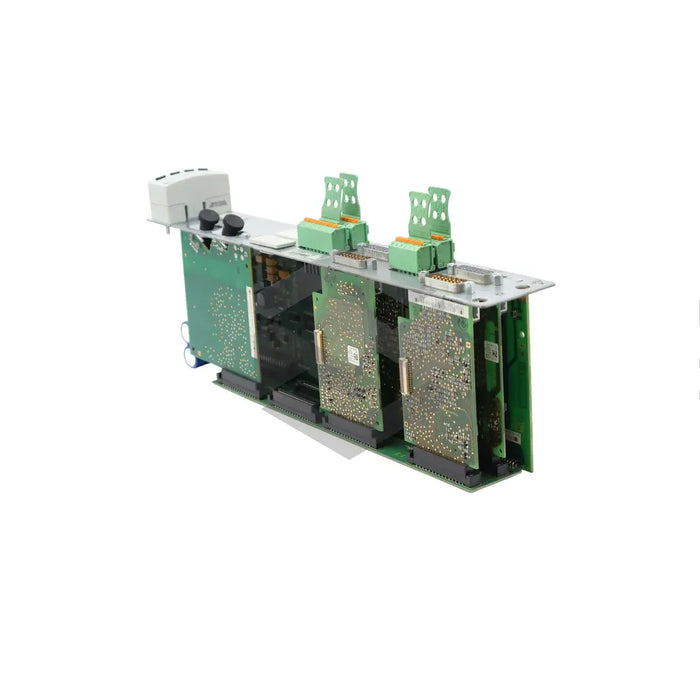

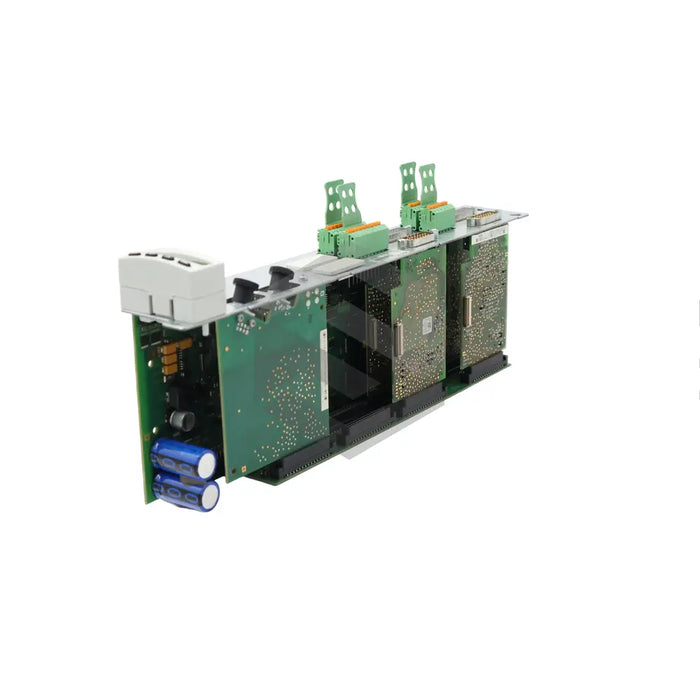

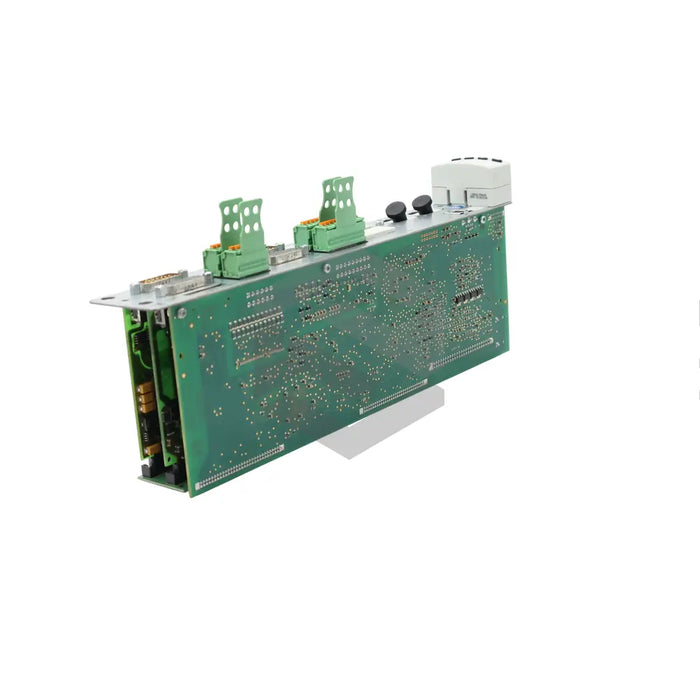

series image of CDB01.1C-SE-EN2-EN2-EN2-EN2-NN-S-NN-FW

CDB01.1C-SE-EN2-EN2-EN2-EN2-NN-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CDB01.1C-SE-EN2-EN2-EN2-EN2-NN-S-NN-FW is a versatile control section produced by leading motion and logic industry manufacturer Bosch Rexroth Indramat. Designed for use in numerous applications including handling systems, food machines, and machine tools, it offers configurable interfaces and variable pulse frequencies. The standard control panel facilitates transmission power setting, extended diagnostics, and simple command inputs. The single-line display provides vital information on operating states, error diagnostics, and active warnings. Four encoder evaluation interfaces allow for 5V encoder connections, and the protective extra-low voltage system between 5V and 50V safeguards against electric shock. The unit is removable, but limited to 20 installation cycles. The SERCOS interface is employed for communication with other control units via fiber optic cables, guaranteeing secure data transmission. Power to the control section is supplied via the 24V and 0V terminal connectors, encompassing spring terminals and screw terminal blocks for versatile wiring options.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: CDB
  • Product Model: CDB01.1C-SE-EN2-EN2-EN2-EN2-NN-S-NN-FW
  • Product Application: Handling and mounting systems, packaging and food machines, printing and paper processing machines, and machine tools
  • Control Panel Type: Standard
  • Functions: Set transmission power, extended diagnosis, trigger simple commands
  • Display: Single-line
  • Encoder Evaluation Interfaces: Four
  • Encoder Supply Voltage: 5V
  • Connections and Terminals Voltage: Between 5V and 50V
  • Mounting Limit: Not more than 20 times
  • Communication Module: SERCOS interface
  • Fiber Optic Cables: For safe data exchange and must be ordered separately
  • Power Supply: Terminal connectors 24V and 0V
  • Connection Points Type: Equipped with spring terminals and screw terminal blocks
  • Wiring: Spring terminals can be wired with or without ferrules, screw terminal blocks are wired with wire ends with ferrules.
