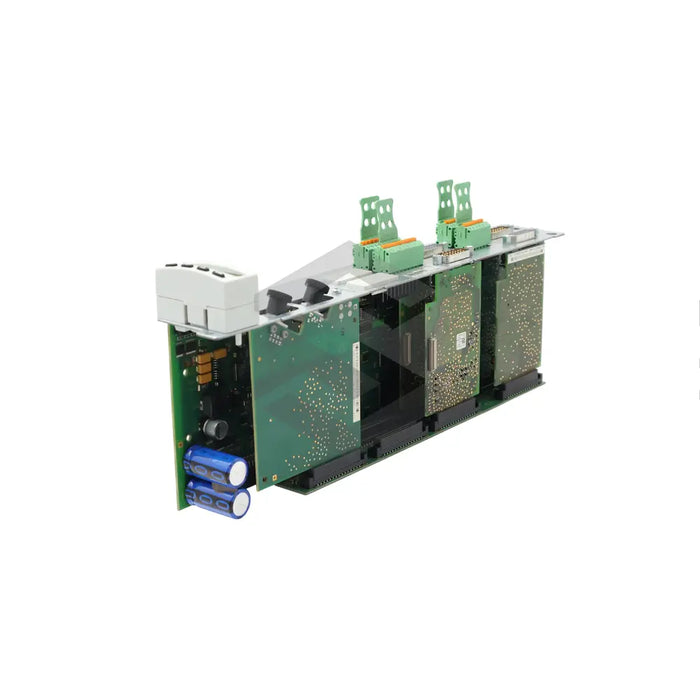

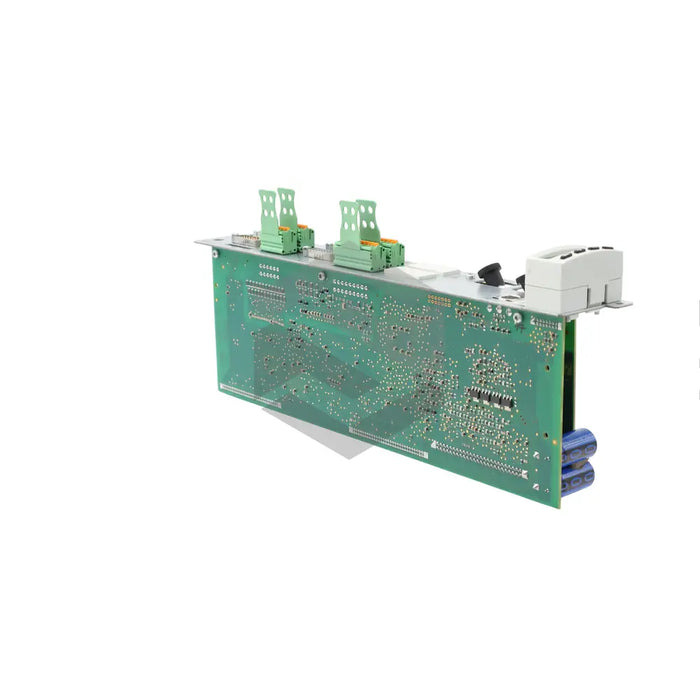

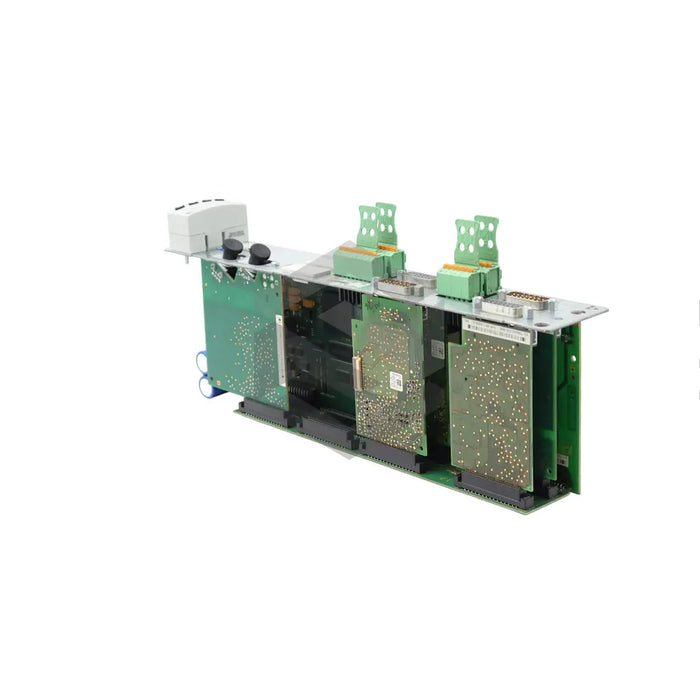

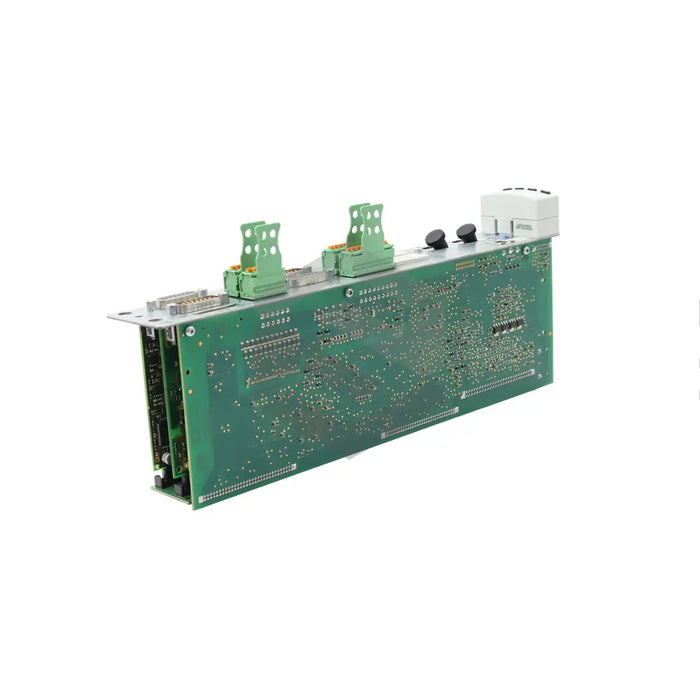

series image of CDB01.1C-SE-EN2-EN2-MEM-MA1-NN-S-NN-FW

CDB01.1C-SE-EN2-EN2-MEM-MA1-NN-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CDB01.1C-SE-EN2-EN2-MEM-MA1-NN-S-NN-FW, manufactured by Bosch Rexroth Indramat, is a drive controller component with a wide range of applications. It is used in systems like packaging and food machines, machine tools, and printing machinery. This configurable control section from the CDB series is part of the BASIC UNIVERSAL range and can function in double-axis operations. Its encoder system works off a 5V supply supporting sin-cos encoder and 5V-TTL square wave encoder. With two digital inputs, it can also operate as a single analog voltage input, and includes an analog I/O extension for greater resolution. The model uses SERCOS interface for fiber-optic communications and offers a range of pulse switching frequencies. It can emulate absolute and incremental encoder signals, meets IEC 61800-3 category C3 standards, and can be initiated using a standard control panel, with optional firmware support.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: CDB01.1C-SE-EN2-EN2-MEM-MA1-NN-S-NN-FW
  • Product Type: Drive Controller Control Section
  • Applications: Handling and mounting systems, Packaging and food machines, Machine tools, Printing and paper processing machines
  • Series: CDB
  • Device Version: Configurable Version 1
  • Range: BASIC UNIVERSAL
  • Operation: Double-axis
  • Encoder Evaluation Interface: 5V Supply Voltage
  • Encoder Systems: Sin-cos encoder (1 Vpp) with reference track, 5V-TTL square wave encoder with a reference track.
  • Digital Inputs: Two
  • Analog Voltage Input: Single
  • Analog I/O Extension: Included
  • Communication Technology: SERCOS Interface
  • Pulse Switching Frequencies: 2kHz, 4kHz, 8kHz
  • Encoder Emulation Interface: Functions without an external power supply
  • Product Category: C3 (According to IEC 61800-3)
  • Commissioning Method: Standard Control Panel
  • Firmware Support: Yes (Ordered separately)
