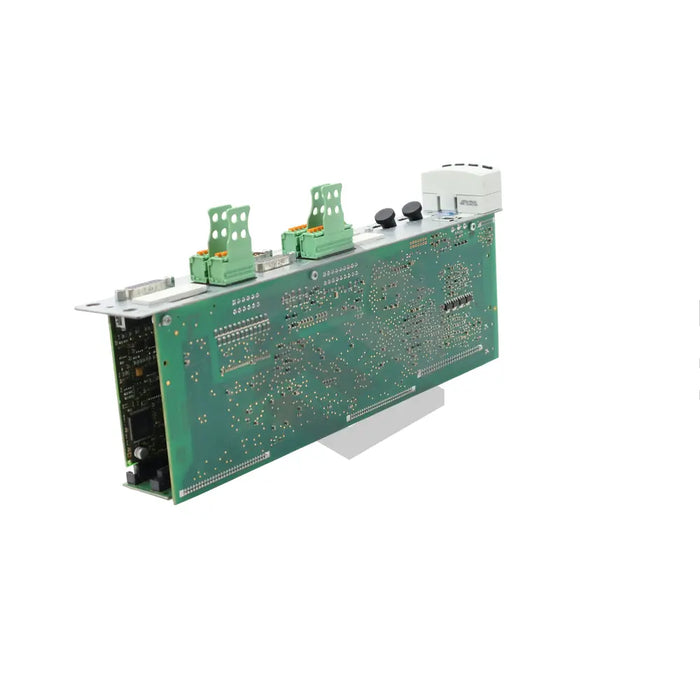

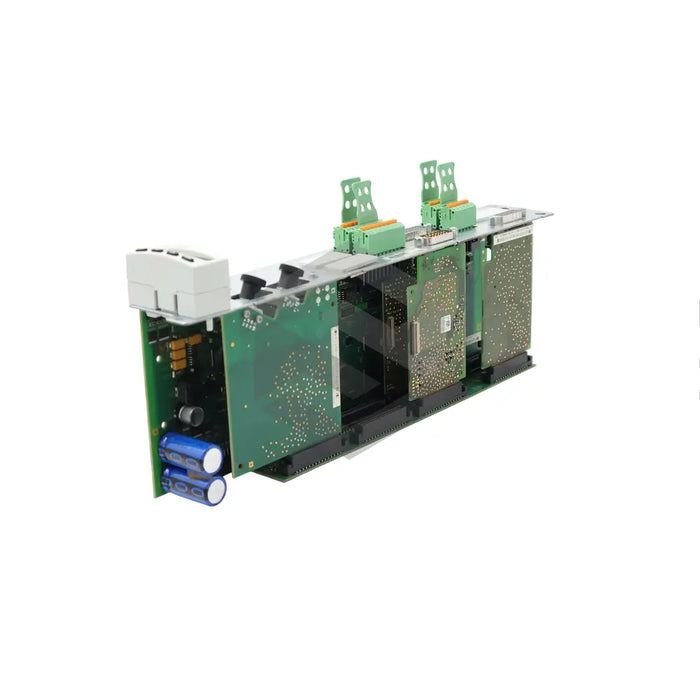

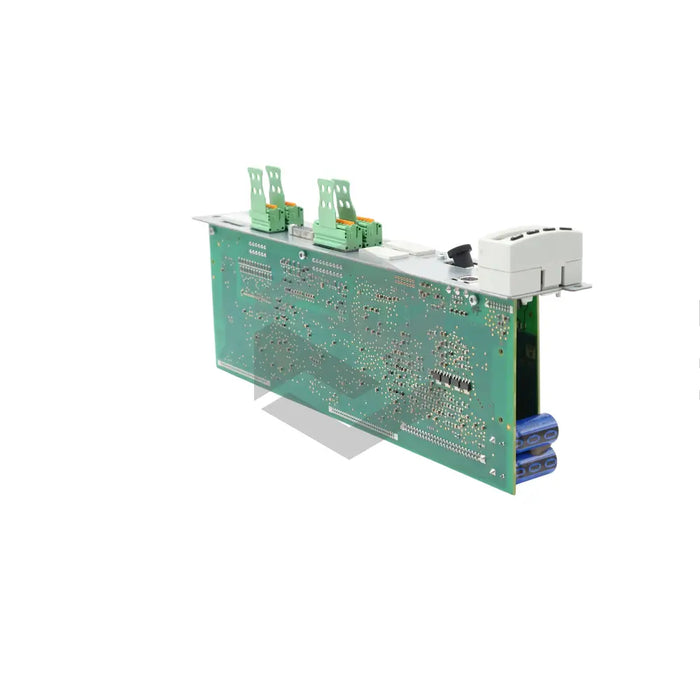

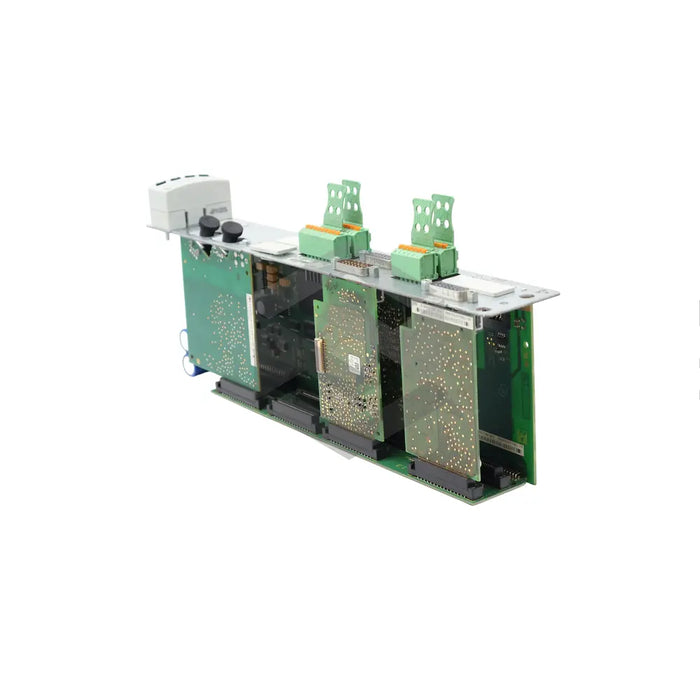

CDB01.1C-SE-EN2-EN2-NNN-MA1-NN-S-NN-FW

Request a quote
The CDB01.1C-SE-EN2-EN2-NNN-MA1-NN-S-NN-FW, a product manufactured by Bosch Rexroth Indramat, is a versatile double-axis drive controller capable of monitoring and control motor operations. Designed for use in a variety of machines, including packaging, food processing, and more, its features make it a highly flexible part of the Rexroth IndraDrive system. The controller incorporates both a power section and a configurable control section with varying interfaces supporting specific use-cases. This model leverages SERCOS communication technology with a minimum cycle time of 1000μs, and offers four combined I/Os for digital input or output. It also includes an encoder evaluation interface for 5V encoder systems. An in-built analog I/O extension supports two differential analog input and two analog output channels. Additionally, with frequencies of 2kHz, 4kHz, and 8kHz, its pulse-switching capabilities are commendable. Safety features include Protective Extra-Low voltage systems for protection against electric shocks.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: CDB01.1C-SE-EN2-EN2-NNN-MA1-NN-S-NN-FW
  • Product Type: Double-axis control section
  • Product Series: CDB01
  • Range: BASIC UNIVERSAL
  • Communication Technology: SERCOS
  • SERCOS Cycle Time: 1000μs
  • Velocity Cycle Times: 250μs and 500μs
  • Combined I/Os: 4
  • Encoder Supply Voltage: 5V
  • Encoder Interface: D-sub interface with 15 poles
  • Analog I/O Extension: Built-in
  • Analog Input Channels: 2 differential
  • Analog Output Channels: 2
  • Resolution: 12-bit
  • Pulse Switching Frequencies: 2kHz, 4kHz, and 8kHz
  • Commissioning: Standard control panel
  • Safety Feature: Protective Extra-Low voltage systems (PELV)
