series image of CDB01.1C-SE-EN2-EN2-NNN-MEM-NN-S-NN-FW

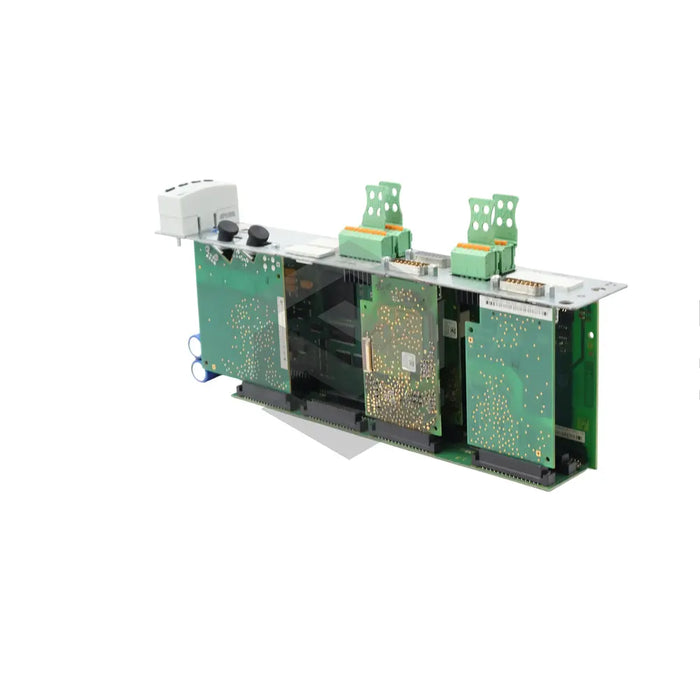

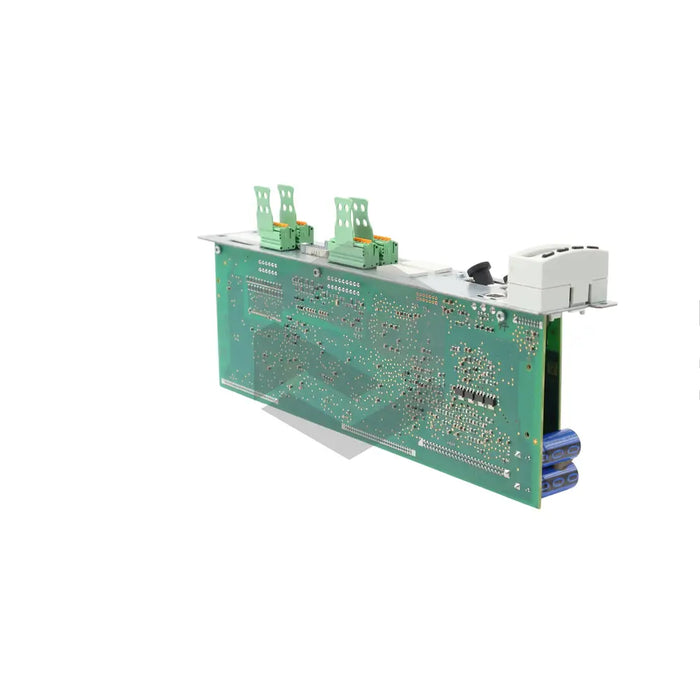

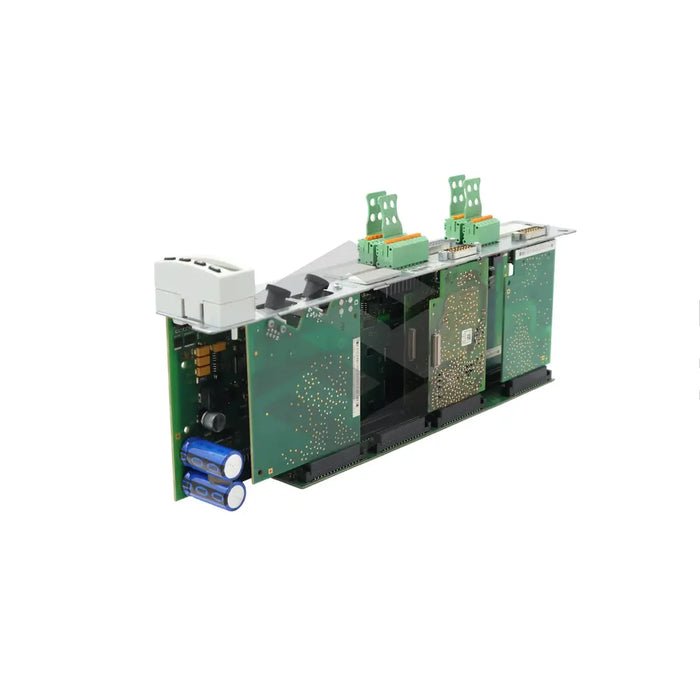

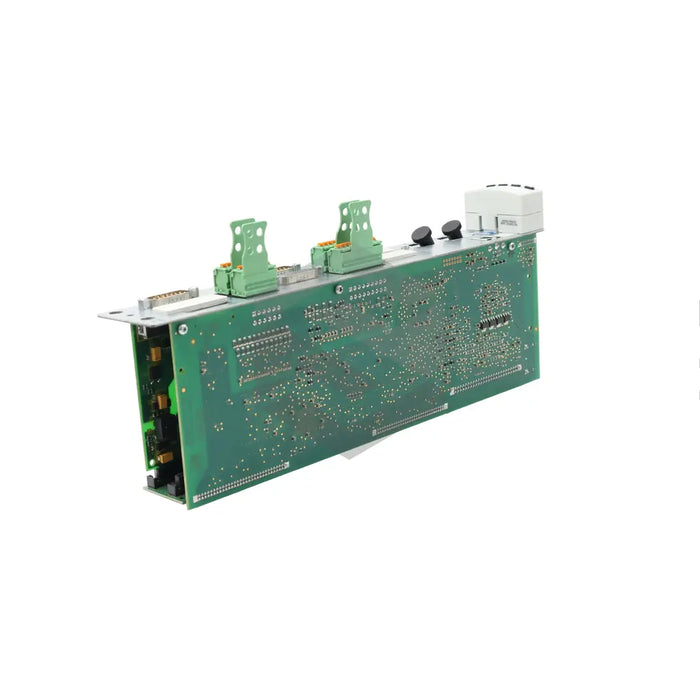

CDB01.1C-SE-EN2-EN2-NNN-MEM-NN-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CDB01.1C-SE-EN2-EN2-NNN-MEM-NN-S-NN-FW is a dual-axis control section from Bosch Rexroth's IndraDrive system. Created for industrial use in mounting systems, machining tools and food packaging machines, the control section, part of a two-component drive controller, can be fitted into or detached from the power component up to 20 times. The controller has two integrated digital axes, and two encoder evaluation interfaces which connect to encoders with a 5V supply voltage rating, including sin-cos encoders and 5V-TTL square-wave encoders. The CDB01.1C-SE-EN2-EN2-NNN-MEM-NN-S-NN-FW utilises a SERCOS communication interface and an encoder emulator that doesn't require an external power supply. Along with a standard control panel with a single-line display for configuration and diagnostics, the SERCOS module's data rate and transmission power can be adjusted.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Controller
  • Model: CDB01.1C-SE-EN2-EN2-NNN-MEM-NN-S-NN-FW
  • Series: CDB
  • Configuration: Double-Axis
  • Functional Range: BASIC UNIVERSAL
  • Encoder Interfaces: 2
  • Encoder Interface Power Supply: 5V
  • Encoder Types: Sin-Cos Encoder (1 Vpp) with EnDat 2.1, Sin-Cos Encoder (1 Vpp) with Reference Track, 5V-TTL Square-Wave Encoder with Reference Track
  • Communication Interface: SERCOS
  • Control Panel Display: Single-Line
  • Memory Access: Error Memory Access, Position Data Reference Setting
  • SERCOS Module Configurations: Data Rate and Transmission Power Setting
