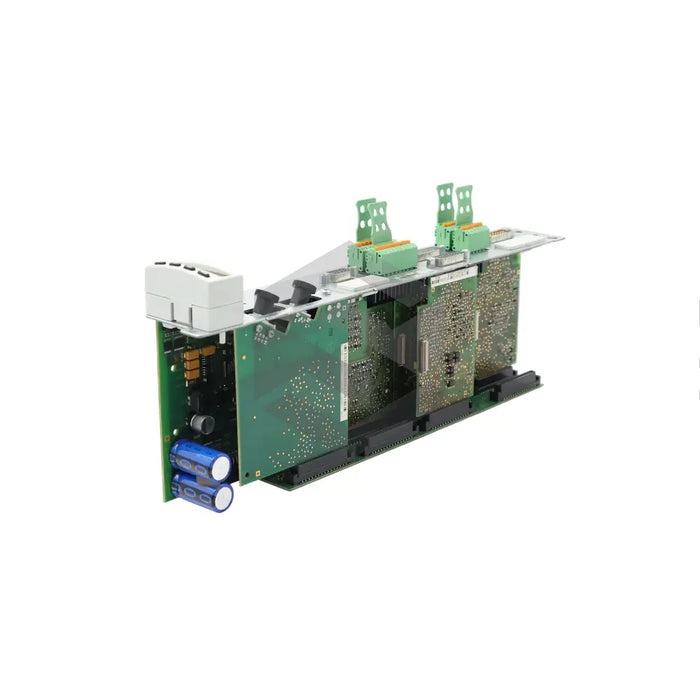

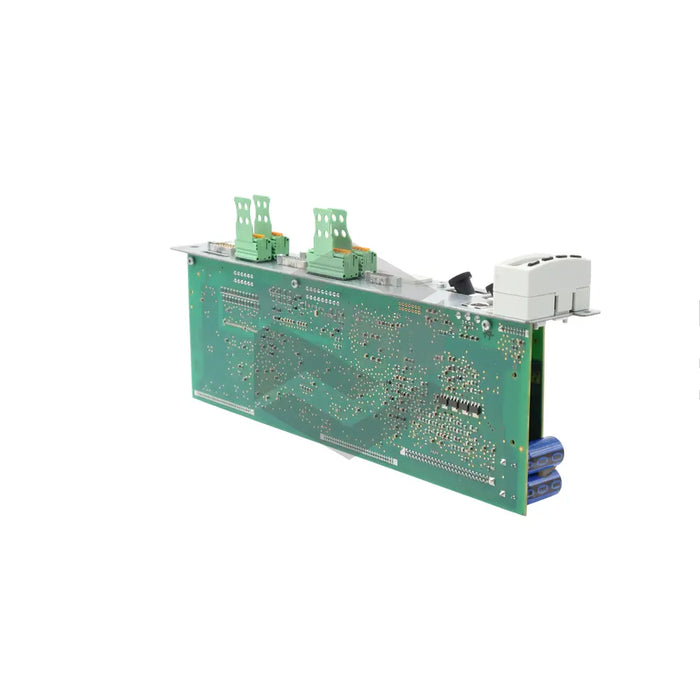

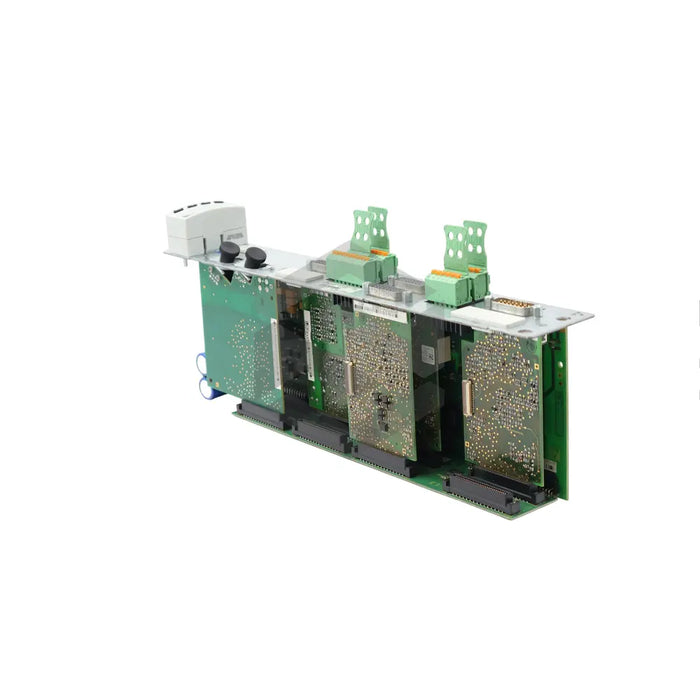

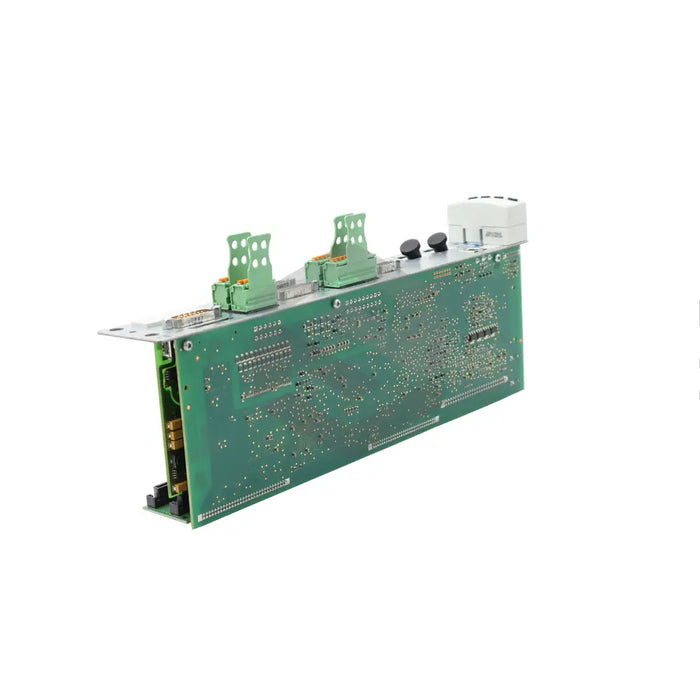

S image of CDB01.1C-SE-ENS-EN1-EN2-NNN-S1-S-NN-FW

CDB01.1C-SE-ENS-EN1-EN2-NNN-S1-S-NN-FW

by Bosch Rexroth Indramat
$2,356.19 - $2,356.19
$2,356.19
$2,356.19 - $2,356.19
$2,356.19

In Stock, Ships 1 - 3 Days

The CDB01.1C-SE-ENS-EN1-EN2-NNN-S1-S-NN-FW Control Section, manufactured by Bosch Rexroth Indramat, is a high-tech product with both an analog input and two analog outputs. It integrates seamlessly with two variants of PFM02.1 multimedia card, outfitted with preloaded firmware for uncomplicated parameter transmission. The product comes with Type 1 digital inputs and a configurable voltage range between -3V to 30V. It utilizes an RS 232 serial interface for convenient parameterization, diagnosis and programming. The device also includes an engineering interface compatible with 100Base-TX Ethernet as per IEEE 802.3u standards. Boasting an impressive power consumption of only 9W at 24VDC, the unit offers one-year backup support. It's important to note that it requires a separate power supply for its isolated inputs/outputs at the X31 and X32 connection points. The product is eco-friendly, being free from toxic compounds like asbestos and mercury, and must only be operated under supervised temperature variations to ensure maximum efficiency.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CDB01.1C-SE-ENS-EN1-EN2-NNN-S1-S-NN-FW

Design Code

1

Analog Input

1

Analog Output

2

Digital Inputs Type

Type 1

Input Voltage

-3V to 30V

Input Current

2mA to 5mA

Max Times of Attachment/Detachment

20 times

Axes Incorporated

2

Interface

RS 232

Transmission Rate

9.6kBaud to 115kBaud

Engineering Interface Inputs

2 differential inputs

Engineering Interface Outputs

2 differential outputs

Ethernet Compatibility

100Base-TX (IEEE 802.3u standards)

Power consumption

9W at 24VDC

Power Supply for I/O

Separate (X31 and X32 connecting points)

Connection Points

Screw terminal blocks and spring terminals

Environmental Impact

None

Hazardous Substances

None

Operating Condition

No extreme temperature variation
