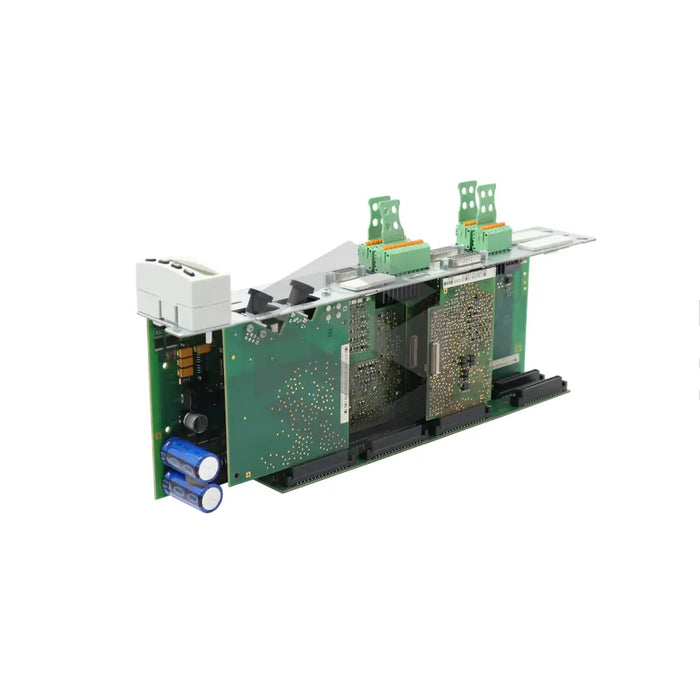

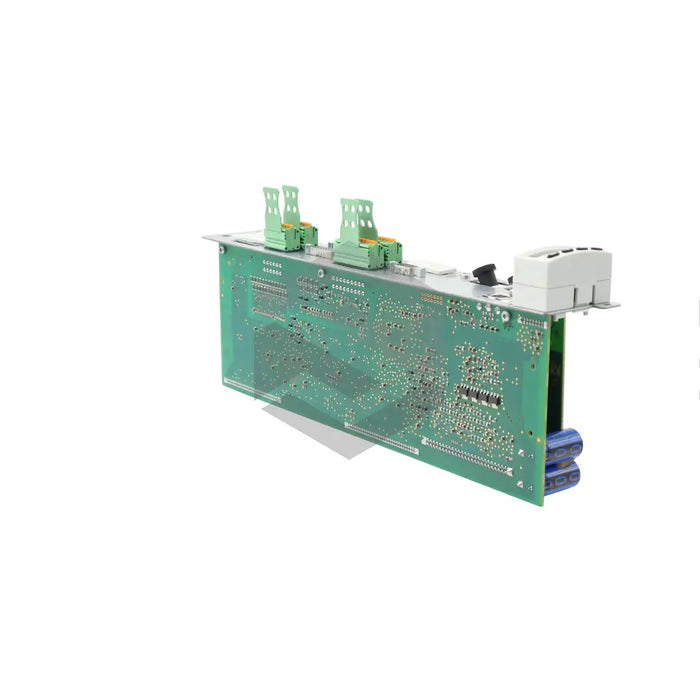

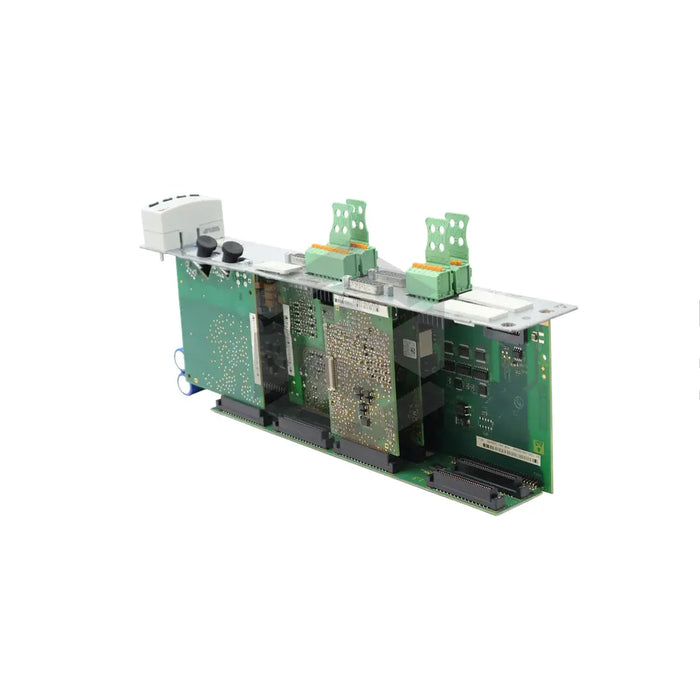

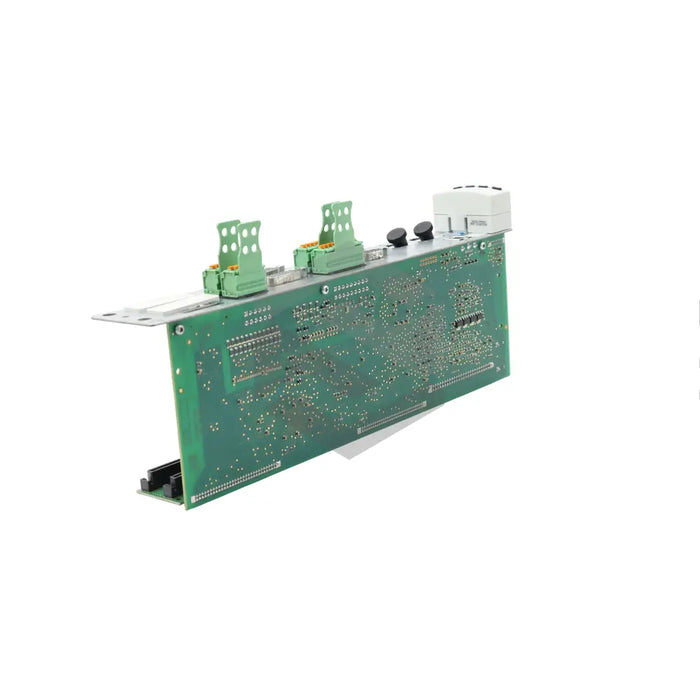

series image of CDB01.1C-SE-ENS-EN1-NNN-NNN-L1-S-NN-FW

CDB01.1C-SE-ENS-EN1-NNN-NNN-L1-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CDB01.1C-SE-ENS-EN1-NNN-NNN-L1-S-NN-FW is a double-axis drive controller produced by Bosch Rexroth Indramat, leaders in industrial automation systems. It's specifically designed for use in tool handling and mounting systems within the printing, packaging, and food processing industries. Its SERCOS interface achieves a minimum cycle time of 1000 milliseconds, and it includes an IndraDyn/hiperface encoder with an optional L1 safety feature. The dimensions are 49.5mm x 103mm x 322.5mm and it operates at 24V with 0.75 to 1.50mm twisted wire. It also includes 18-22 digital inputs, four digital outputs, one analog input, and an RS232 serial port. The cycle time function is adjustable for various microsecond ranges. Only qualified individuals should operate the model CDB01.1C-SE-ENS-EN1-NNN-NNN-L1-S-NN-FW, and must follow user guide parameters to avoid safety risks.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model Name: CDB01.1C-SE-ENS-EN1-NNN-NNN-L1-S-NN-FW
  • Product Type: Double-axis drive controller
  • Industry Use: Printing, Packaging, Food processing machine tools
  • Communication: SERCOS interface master
  • SERCOS Cycle Time: Minimum of 1000 milliseconds
  • Option 1 Encoder: IndraDyn/hiperface encoder
  • Safety Option: L1 (starting lockout)
  • Control Section Dimensions: 49.5 mm (depth) x 103 mm (width) x 322.5 mm (height)
  • Option 2 Encoder: HSF/RSF encoder
  • Control Panel: Standard
  • Wire Diameter: 0.75 to 1.50mm
  • Voltage Input: 24V
  • Digital Inputs: 18 to 22
  • Serial Port: Single RS232
  • Digital Outputs: Four
  • Analog Input: One
  • Cycle Time function: Regulate velocity between 250 and 500 microseconds, current between 125 and 1000 microseconds, position between 500 and 1000 microseconds.
