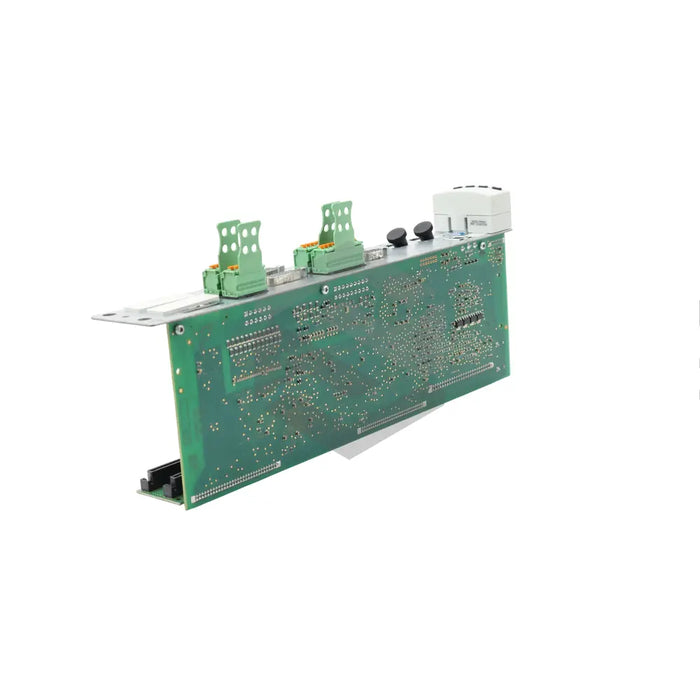

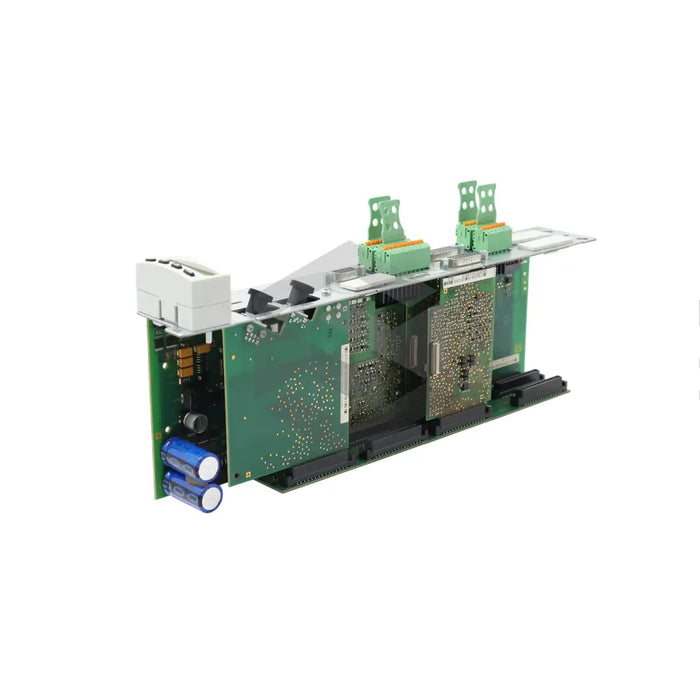

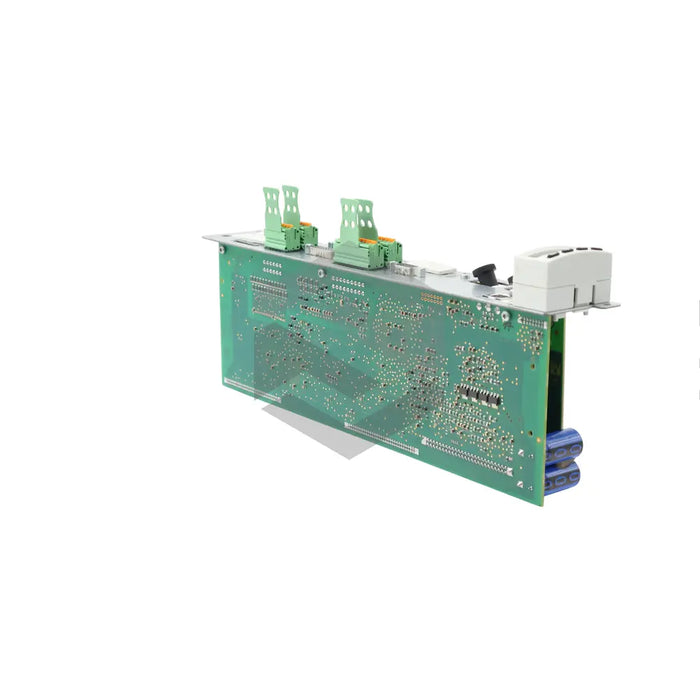

S image of CDB01.1C-SE-ENS-EN1-NNN-NNN-S1-S-NN-FW

CDB01.1C-SE-ENS-EN1-NNN-NNN-S1-S-NN-FW

by Bosch Rexroth Indramat
$14,897.02 - $14,897.02
$14,897.02
$14,897.02 - $14,897.02
$14,897.02

In Stock, Ships Fast

The Bosch Rexroth Indramat CDB01.1C-SE-ENS-EN1-NNN-NNN-S1-S-NN-FW is a two-axis universal control section engineered to regulate electric motor performance as part of drive controller systems. This technical component, typically paired with the drive controller, features an IndraDyn/Hiperface/1 Vpp/TLL encoder and an optional module for I/O extension. All conductive sections require grounding and discharging prior to contact, with usage reserved for industrial settings under precise installation guidelines. The device communicates via a SERCOS interface, which includes an optical receiver, transmitter, and distortion LED, and can be set using a standard control panel or the X2 serial interface. Relay contacts in the control section offer a 10ms pick-up and drop-out delay and have a load rating of 10mA. The digital inputs can handle voltages from -3V to 30V and manage a current from 2mA to 5mA.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

CDB01.1C-SE-ENS-EN1-NNN-NNN-S1-S-NN-FW Two-Axis Basic Universal Control Section

Main Function

Monitor and control the performance of electrical motors

Connectivity

IndraDyn/Hiperface/1 Vpp/TLL encoder at X4.1 connector

Operational Environment

Industrial only

Additional Features

Supports use of an AN optional module for I/O extension, Grounded and discharged conductive parts, SERCOS interface for master communication with an optical receiver, optical transmitter, and distortion LED

Handling Instructions

Must be dispatched or stored in conductive packaging

Delay Rating for Relay Contacts

Pick-up and drop-out delay of 10ms

Load Rating for Relay Contacts

Minimum of 10mA

Permissible Input Voltage for Digital Inputs

Minimum of -3V, Maximum of 30V

Current Rating for Digital Inputs

Minimum of 2mA, Maximum of 5mA

Resistance for Digital Inputs

Non-linear, based on the input voltage

Probe Inputs Functionality

Operate as rapid inputs.
