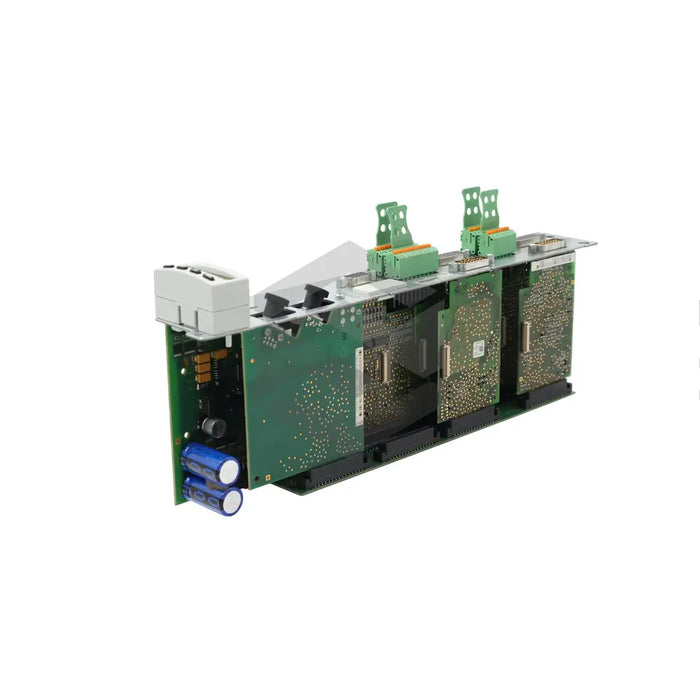

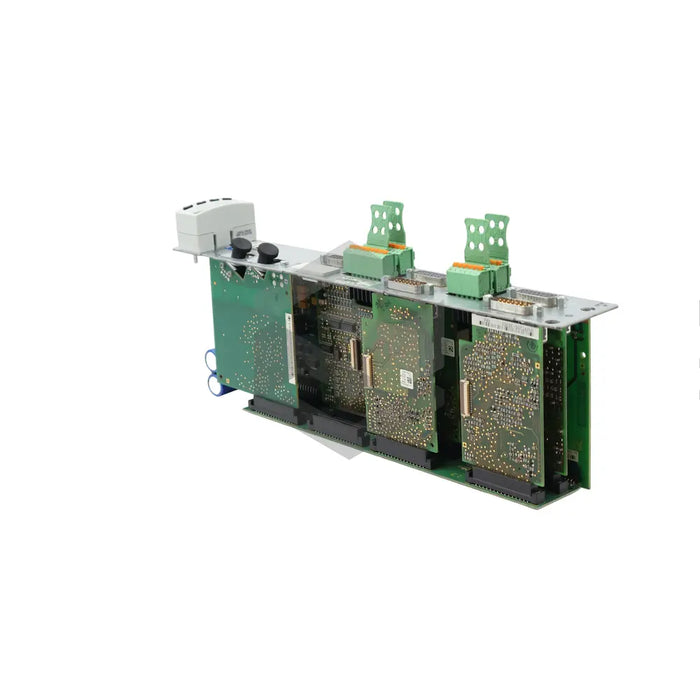

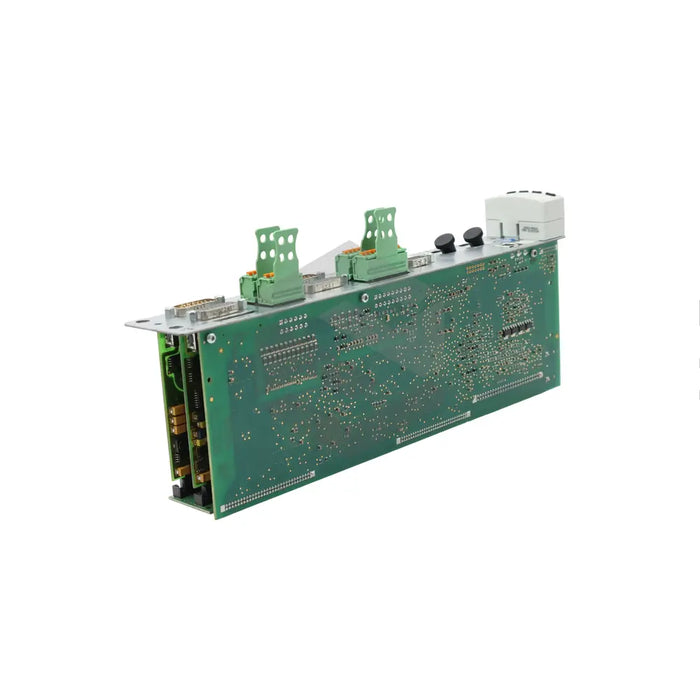

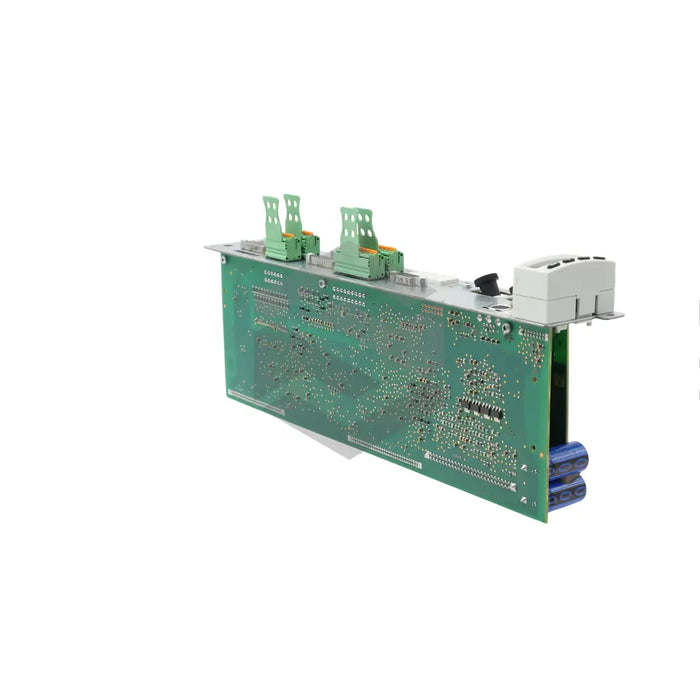

S image of CDB01.1C-SE-ENS-EN2-EN2-EN2-S2-S-NN-FW

CDB01.1C-SE-ENS-EN2-EN2-EN2-S2-S-NN-FW

by Bosch Rexroth Indramat
$2,356.19 - $2,356.19
$2,356.19
$2,356.19 - $2,356.19
$2,356.19

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat CDB01.1C-SE-ENS-EN2-EN2-EN2-S2-S-NN-FW is a dual-axis drive controller, designed specifically for applications in demanding industrial environments such as machine tools, handling and mounting systems in the printing, packaging and food processing sectors. Built with 18 to 22 digital inputs and an RS232 serial interface port, the controller delivers cycle time functionality offering control over velocity, current, and position parameters. The appliance uses the CDB01.1 control section, with SERCOS interface master communication, integral to Rexroth's Indramat drive system. The device operates with a minimum SERCOS cycle time of 1000 milliseconds, though it can vary based on the firmware version. It features an EnDat2.1 option 4 encoder with a physical dimension of 49.5 mm (depth) x 103 mm (width) x 322.5 mm (height). The device operates on a 24V voltage input and recommends using a twisted wire of 0.75 to 1.50mm in diameter for setup. Please refer to the user manual for the specific environmental operating conditions.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

CDB01.1C-SE-ENS-EN2-EN2-EN2-S2-S-NN-FW

Purpose

Industrial Automation Equipment

Digital Inputs

18 to 22

RS232 Serial Interface Port

1

Velocity Control

250 to 500 microseconds

Current Control

125 microseconds

Position Control

500 to 1000 microseconds

Communication Interface

SERCOS Interface Master

Applicable Industries

Printing, Packaging, Food Processing

SERCOS Cycle Time

Minimum 1000 milliseconds

Safety Option

S2 (safe motion)

Physical Dimensions

49.5 mm (depth) x 103 mm (width) x 322.5 mm (height)

Option 1 Encoder

IndraDyn hiperface encoder

Option 2 Encoder

EnDat2.1 encoder

Control Panel

Standard

Option 4 Encoder

EnDat2.1 encoder

Voltage Input

24V

Wire Type

Twisted

Wire Diameter

0.75 to 1.50mm
