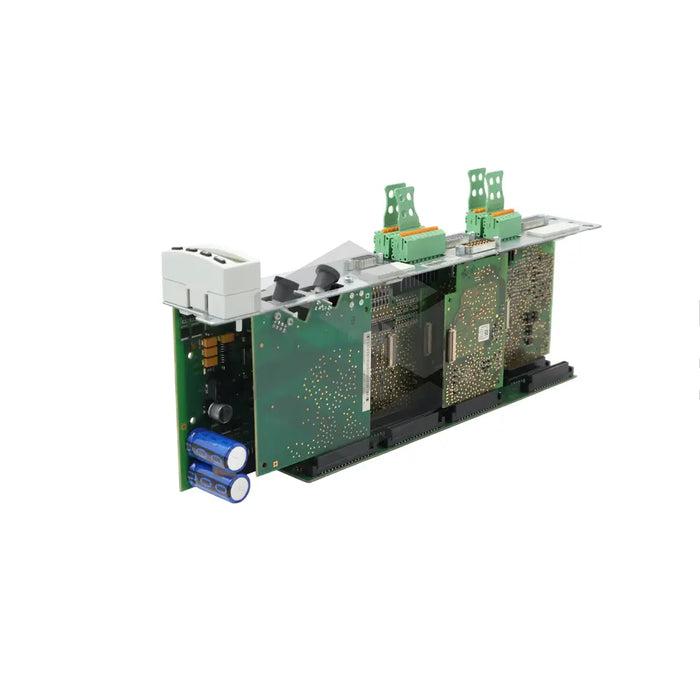

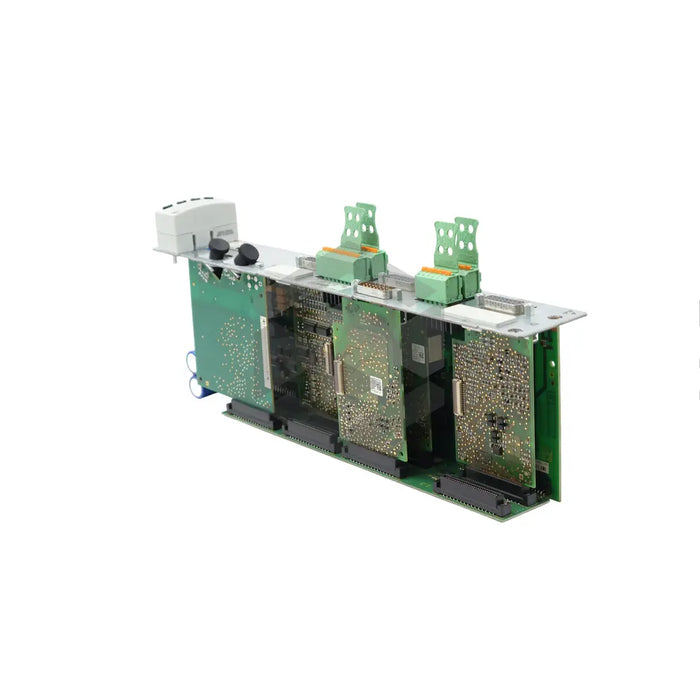

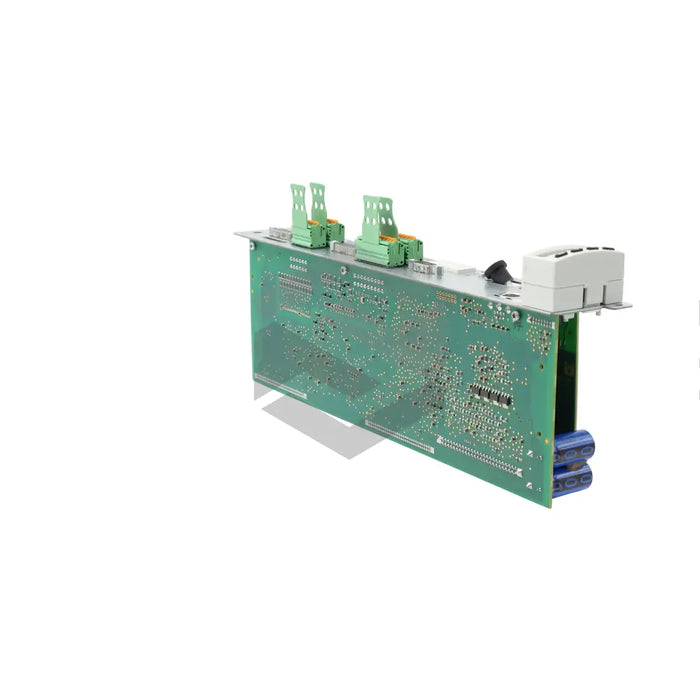

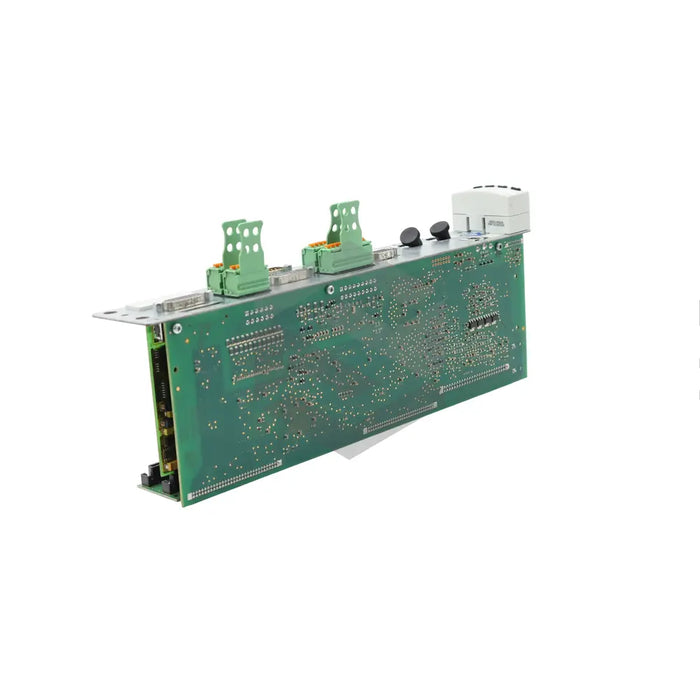

series image of CDB01.1C-SE-ENS-EN2-EN2-NNN-L1-S-NN-FW

CDB01.1C-SE-ENS-EN2-EN2-NNN-L1-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CDB01.1C-SE-ENS-EN2-EN2-NNN-L1-S-NN-FW, produced by industry leader Bosch Rexroth Indramat, is a prime example of their advanced industrial automation components. This double-axis control section works efficiently with a 24-volt DC power supply utilizing 9 watts and having a 6-amp inrush current. It includes an independent control section, two analog outputs, and a single RS232 serial interface input. Its cycle time function delivers nuanced control over velocity, current, and position within specified ranges. Supplementary features include a standard control panel, SERCOS interface master communication, and L1 safety technology. Part of the broader Rexroth Indramat drive system, it contains optional EnDat2.1 encoders and 22 digital inputs with four outputs. A user-configurable model, it comes with one relay contact, with control sections typically shipped with the drive controller. Compact in design, it measures 49.5mm (depth), 103mm (width), and 322.6mm (height).
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model Number: CDB01.1C-SE-ENS-EN2-EN2-NNN-L1-S-NN-FW
  • Power Supply: 24 volt DC
  • Power Consumption: 9 W
  • Inrush Current: 6 Amp
  • Control Section Attachment: Attached to the power section and is independent of it
  • Outputs: Two analog outputs
  • Inputs: Single RS232 serial interface input
  • Cycle Time Control: Velocity between 250 and 500 microseconds, current between 125 and 1000 microseconds, and the position between 500 and 1000 microseconds
  • Included Features: Standard control panel, SERCOS interface master communication, L1 (starting lockout) safety technology
  • System Components: EnDat2.1 encoders as options 2 and 3 encoders
  • Intended Use: Printing, packaging, food processing machines, handling systems, and installation systems
  • Additional Encoders: IndraDyn hiperface encoder as an option 1 encoder
  • Digital Inputs and Outputs: 22 digital inputs and 4 digital outputs
  • Maximum Pulse Width: 60 milliseconds
  • Minimum SERCOS Cycle Duration: 1000 microseconds
  • Additional Outputs: Two analog outputs with user-configurable settings and one relay contact
  • Delivery: Drive controller is usually provided with the control section, though control sections may be shipped separately in rare cases
  • Physical Dimensions: 49.5 mm (depth), 103 mm (width), and 322.6 mm (height)
