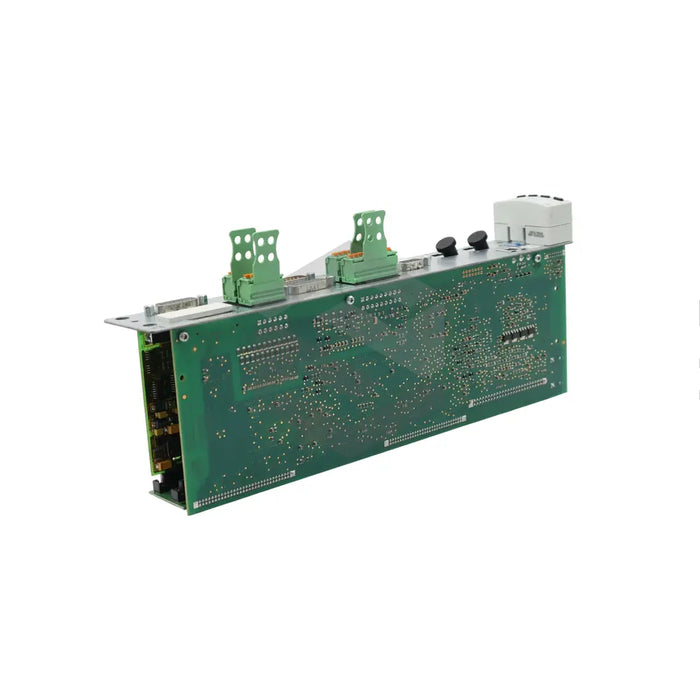

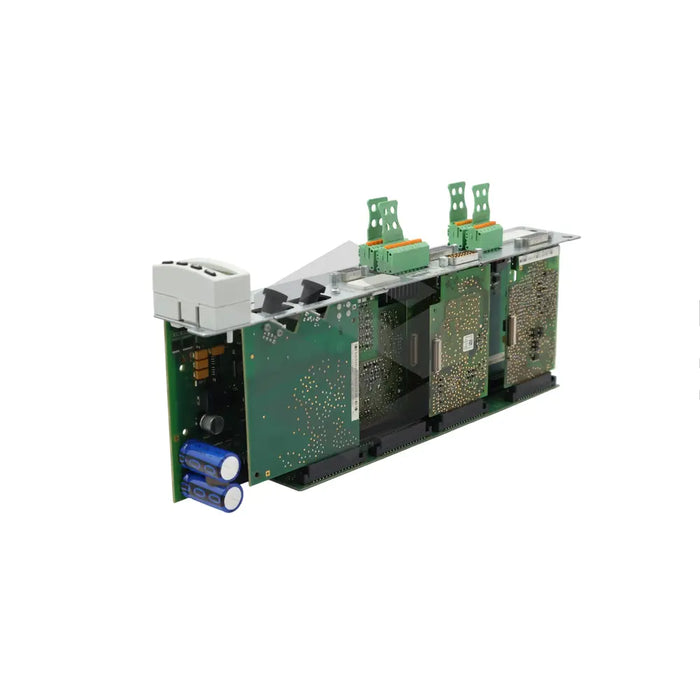

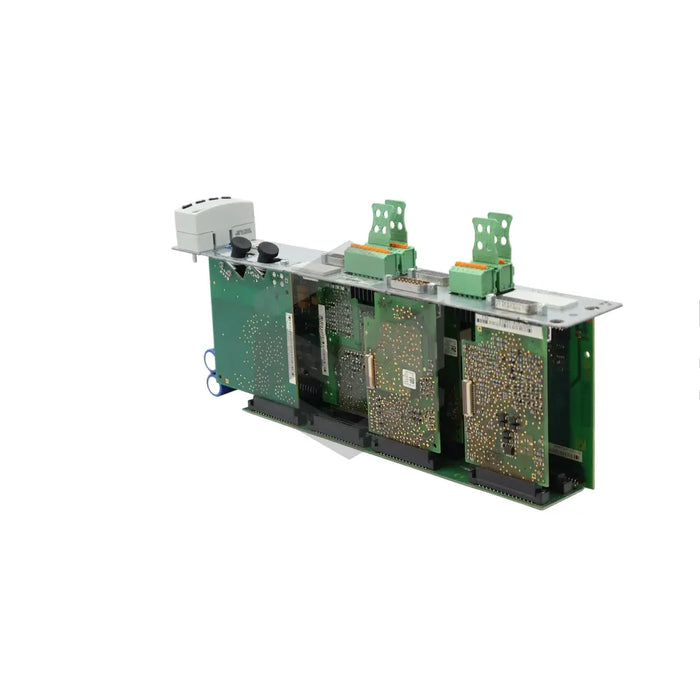

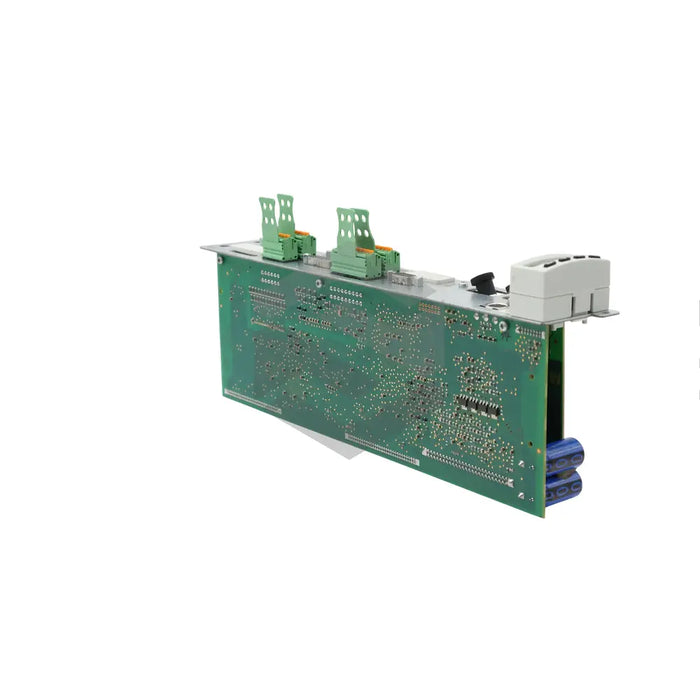

CDB01.1C-SE-ENS-EN2-NNN-EN1-S1-S-NN-FW

Request a quote
The Bosch Rexroth Indramat CDB01.1C-SE-ENS-EN2-NNN-EN1-S1-S-NN-FW is an integral control unit of the CDB01 control sections family. These control units, paired with power sections, form the core components of drive controllers adaptable for various applications such as machine tools, food and packaging machines, and more. This specific control unit belongs to the BASIC UNIVERSAL range, and includes two digital inputs, two analog outputs, and a 125µs current control cycle time. It supports connections to encoder systems with a supply voltage of 12V or 5V and features a Resolver and HSF encoder interface with 15 poles. To ensure safety, all connections and terminals with 5V and 50V are Protective Extra-Low Voltage (PELV) systems. This device adheres to category C3 as per IEC 61800-3, indicating it is appropriate for industrial use. Please note, any required firmware must be purchased separately.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Control Unit
  • Product Code: CDB01.1C-SE-ENS-EN2-NNN-EN1-S1-S-NN-FW
  • Product Range: BASIC UNIVERSAL
  • Number of Digital Inputs: 2
  • Number of Analog Outputs: 2
  • Current Control Cycle Time: 125µs
  • Encoder Supply Voltage (Standard Interface): 12V
  • Encoder Supply Voltage (Evaluation Interface): 5V
  • Additional Interface: Resolver and HSF encoder interface with 15 poles
  • Encoder Systems: Digital Servo Feedback Encoder, Hall Sensor Box SHL01.1, Resolver
  • Safety Systems: PELV for connections and terminals with 5V and 50V
  • IEC Classification: C3
  • Applicable Firmware: To be ordered separately
  • Applications: Machine tools, Food and packaging machines, Printing and paper processing machines, Handling and mounting systems.
