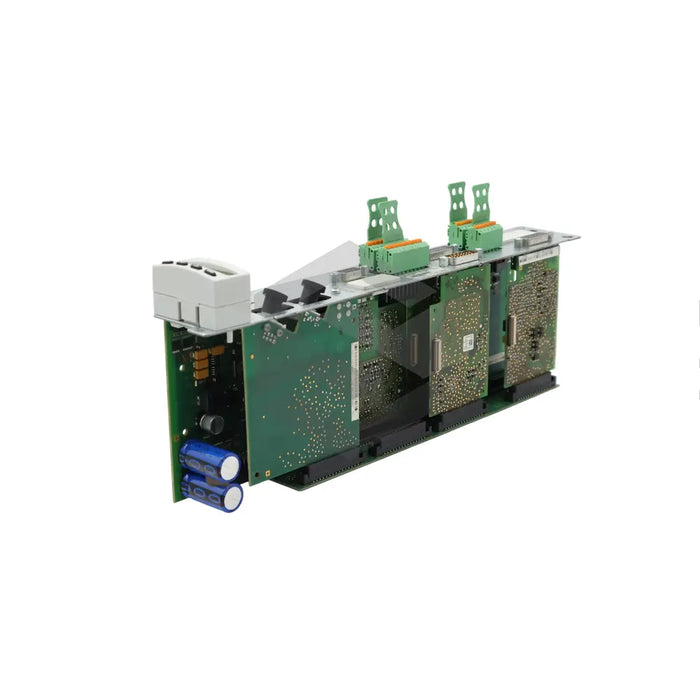

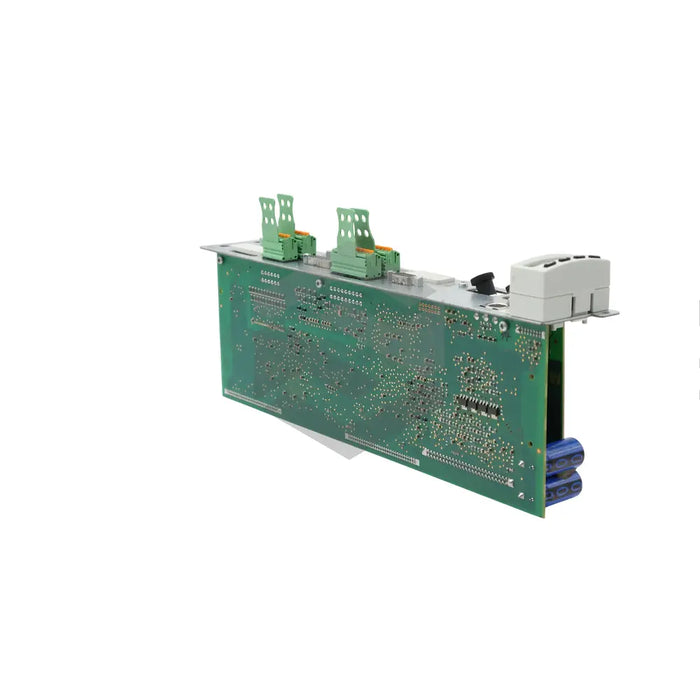

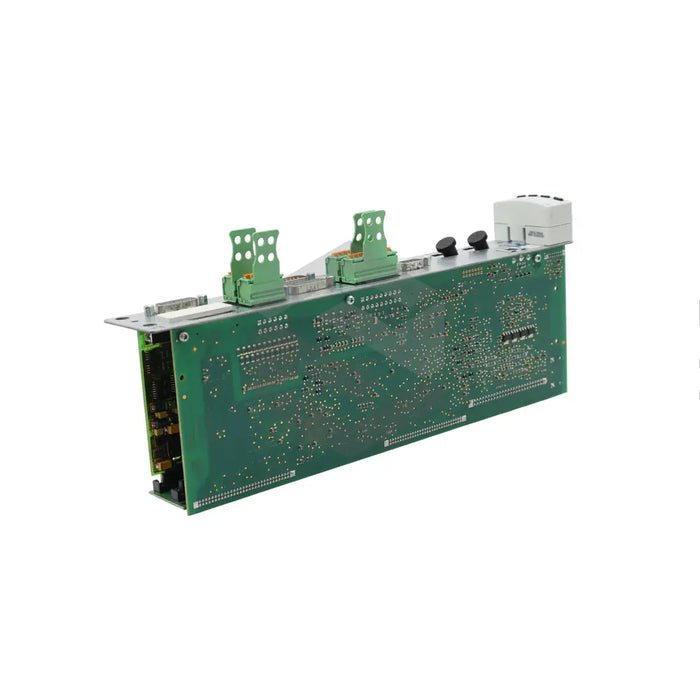

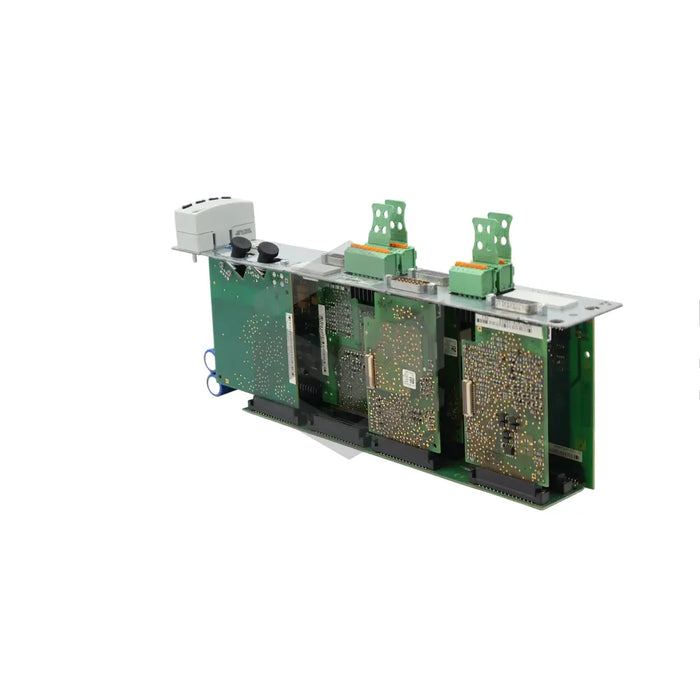

S image of CDB01.1C-SE-ENS-EN2-NNN-EN1-S2-S-NN-FW

CDB01.1C-SE-ENS-EN2-NNN-EN1-S2-S-NN-FW

by Bosch Rexroth Indramat
$2,356.19 - $2,356.19
$2,356.19
$2,356.19 - $2,356.19
$2,356.19

In Stock, Ships 1 - 3 Days

The CDB01.1C-SE-ENS-EN2-NNN-EN1-S2-S-NN-FW, a product by Bosch Rexroth Indramat, is a double-axis control section from the advanced IndraDrive system. It is specifically designed for use in machine tools, robotics, as well as handling and mounting systems. This compact device belongs to the CDB series and is a Model 1 type in the BASIC UNIVERSAL control section category. Notably, it comes with a SERCOS module that connects the drive controller to other control units via fiber optic cables. The device features a single-line display panel used for monitoring the state of the device, warning alerts, and error diagnosis. This control section is compatible with regular encoder systems rated at 12V. Furthermore, it comes with safety features like Safe Motion rated category 3 PL d/SIL 2. The connection points on the device include both spring terminals and screw terminal blocks.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

CDB

Product Model

CDB01.1C-SE-ENS-EN2-NNN-EN1-S2-S-NN-FW

Functionality

Double Digital Axis

System Compatibility

Machine Tools, Robotics, Handling and Mounting Systems

Type

Configurable Version 1 in BASIC UNIVERSAL Control Section Range

Integrated Module

SERCOS module with Fiber Optic Cable Connection

Data Rate and Transmission Power Adjustment

From Standard Control Panel or Serial Interface

Control Panel Functions

Display Operating State, Error Diagnoses, Pending Warnings, Adjust Drive Address, Access Error Memory, Set Analog Outputs

Encoder Interface

Standard, compatible with 12V Supply Voltage Encoders such as MSK Motor Encoder, Sin-Cos Encoder (1 Vpp) with Hiperface, 5V-TTL Square-Wave Encoder with Reference Track

Additional Encoder Interface

For Encoders with 8V DC or 18.2V AC Peak-Peak ratings

Encoder Evaluation Interface

For 5V Supply Voltage Encoders

Connection Points

Spring Terminals and Screw Terminal Blocks

Safety Module

Safe Motion, Category 3 PL d/SIL 2 Rating
