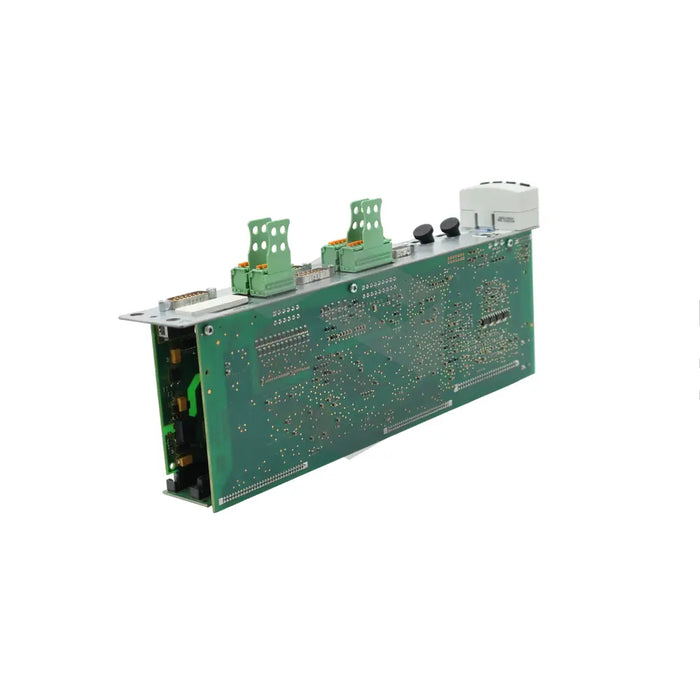

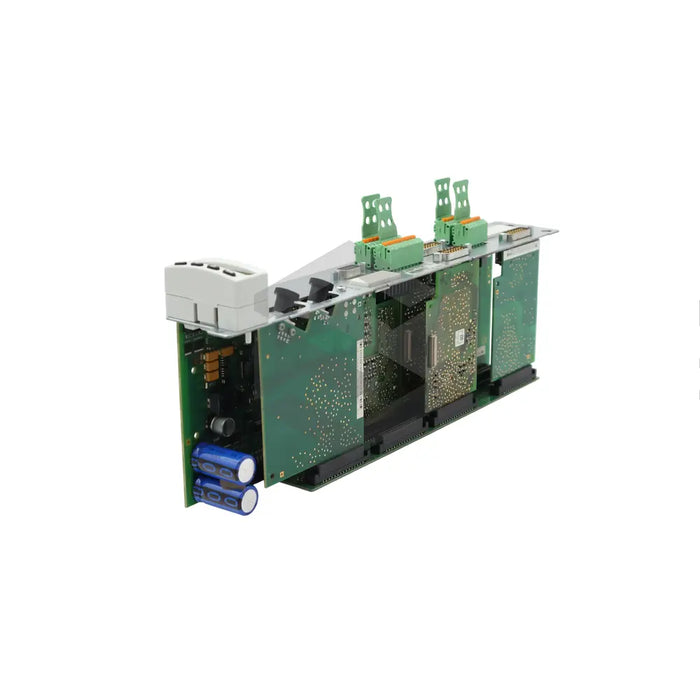

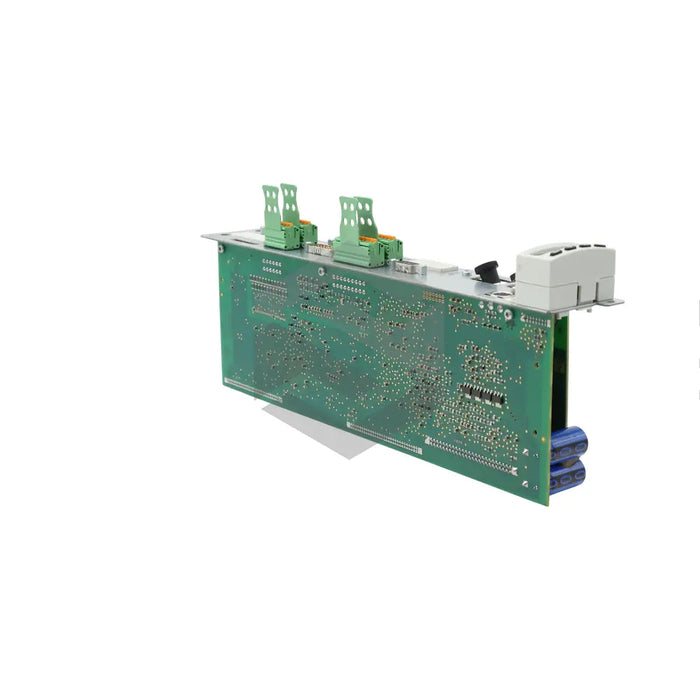

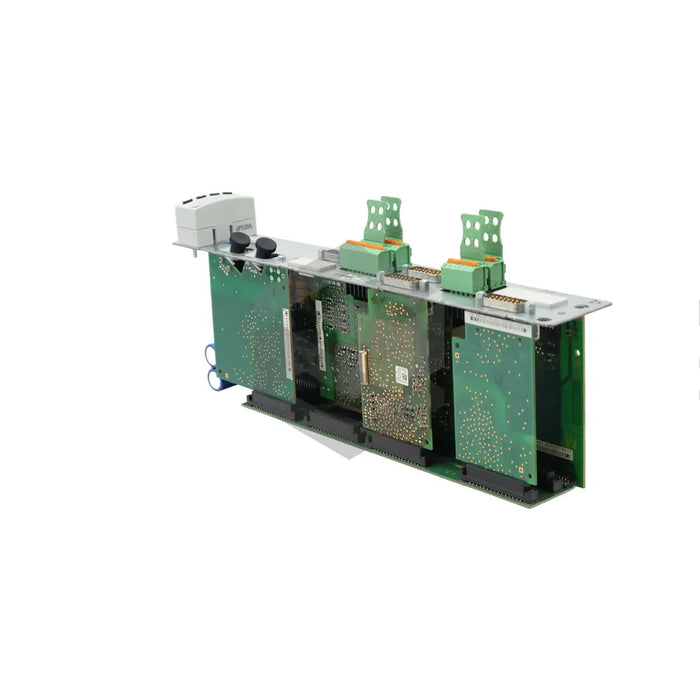

series image of CDB01.1C-SE-ENS-EN2-NNN-MEM-S2-S-NN-FW

CDB01.1C-SE-ENS-EN2-NNN-MEM-S2-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
Bosch Rexroth Indramat's CDB01.1C-SE-ENS-EN2-NNN-MEM-S2-S-NN-FW is a sophisticated control section featuring a standard control panel, inclusive of a single-line display and four operational buttons. It utilizes an exclusive X7 slot for a multimedia card, which can be either pre-loaded with firmware or preformatted for easy parameter transmission. The device is equipped with both analog and digital inputs/outputs, and if the union nut's tightening torque goes above 0.6Nm, the SERCOS interface may suffer damage. Using Safe Motion technology, this control section carries out a host of safety functions from safe stop and communication to determining safe direction. These safety features come into play only if an encoder is connected to the control section. The integral MEM optional module at the X8.2 port allows emulation of signals for encoder value assessment via control units, ensuring that these signals remain free of external power influence. Made from environmentally friendly material, the unit should never operate outside the specified ambient conditions and should only be installed after referring to its accompanying documentation. Temperature fluctuations must also be avoided during operation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: CDB01.1C-SE-ENS-EN2-NNN-MEM-S2-S-NN-FW
  • Control Panel: Standard, single-line display and four buttons
  • X7 Slot: Exclusively for multimedia card
  • Inputs and Outputs: Both analog and digital
  • SERCOS Interface: Union nut tightening torque not more than 0.6Nm
  • Safety Technology: Deploys Safe Motion technology for various safety functions
  • Encoder Association: Required for the deployment of safety options
  • MEM Optional Module: At X8.2 connecting point, helps emulate encoder signals
  • Signal Characteristics: Galvanically isolated, no need for external power supply
  • Connection Method: Wire ends with ferrules for screw terminal block connection
  • Material: Free of mercury, asbestos and harmful substances
  • Operating Conditions: Specific ambient conditions
  • Installation: After reading associated documentation
  • Operation: Not to be operated during extreme temperature fluctuation.
