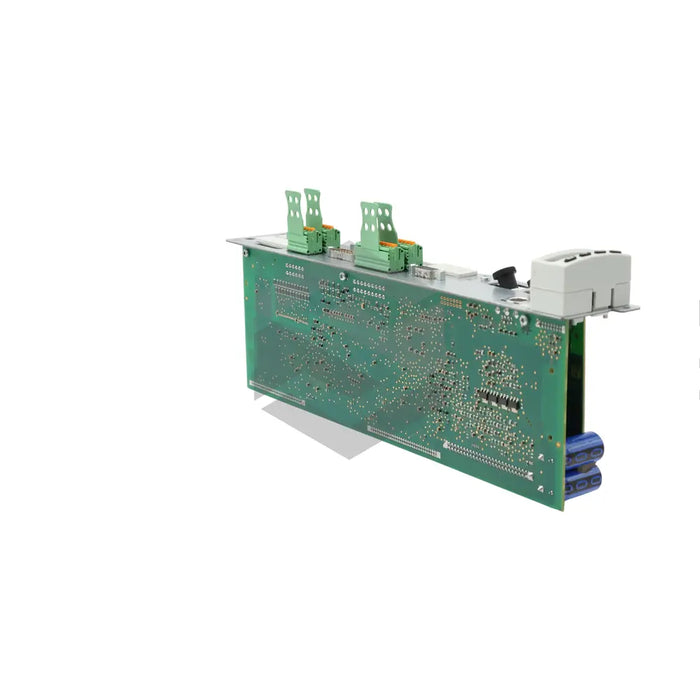

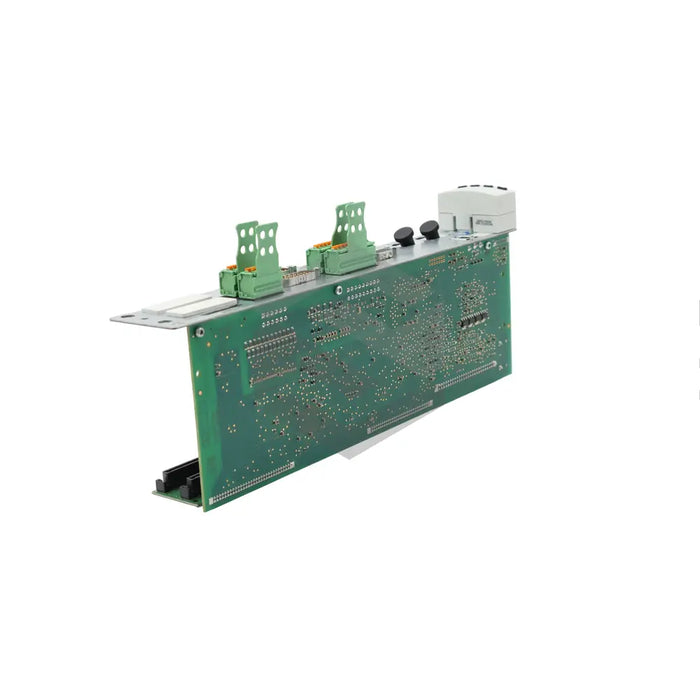

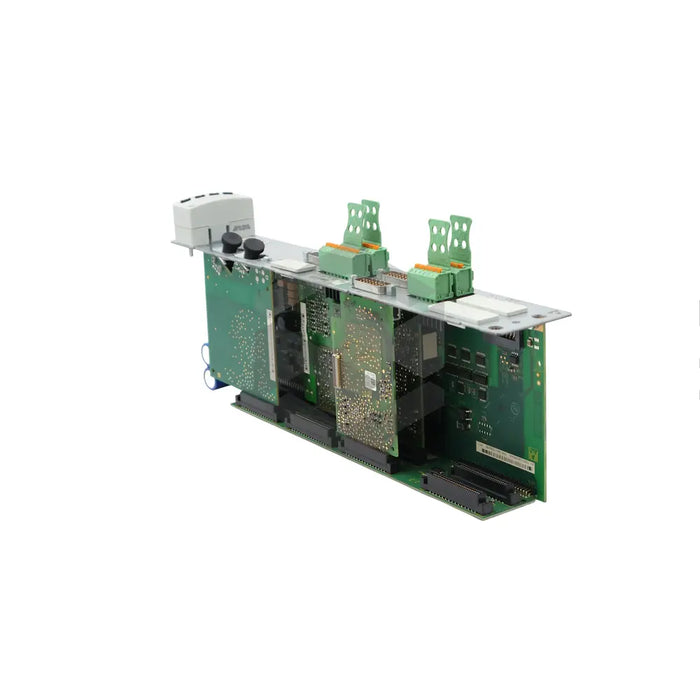

S image of CDB01.1C-SE-ENS-EN2-NNN-NNN-L2-S-NN-FW

CDB01.1C-SE-ENS-EN2-NNN-NNN-L2-S-NN-FW

by Bosch Rexroth Indramat
$2,356.19 - $2,356.19
$2,356.19
$2,356.19 - $2,356.19
$2,356.19

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat's CDB01.1C-SE-ENS-EN2-NNN-NNN-L2-S-NN-FW is a configurable control section designed with dual-axes. It meets IEC 61131 specifications with digital inputs and outputs with a voltage range from -3V to 30V. It features rapid-probe inputs, a SERCOS cycle time of 1000µs, two current control cycle times and an NO relay contact. Its spring terminals are suited for stranded wire connections without ferrules, and are designed for dual-conductor connections using wires of identical cross-sections or TWIN ferrules. The unit includes four I/Os which are configurable as either outputs or inputs. Safeguarding is achieved through a 9-pin, D-Sub female connector at its X41 connecting point, and with a built-in EnDat 2.1 / 1 Vpp / TTL encoder on X4.2 terminal. The device requires a separate power supply for its isolated inputs/outputs, and should never be manipulated when the supply power is ON. The product comes with a one-year backup support.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CDB01.1C-SE-ENS-EN2-NNN-NNN-L2-S-NN-FW

Axes

2

Digital Inputs and Outputs Specification

IEC 61131

Voltage Rating of Digital Inputs

-3V to 30V

SERCOS Cycle Time

1000µs

Control Cycle Times

2 (Current, position, velocity)

Relay Contact

1 (Normally Open)

Typical Inrush Current

6A

Terminal Connectivity

Two conductors in a single terminal connect point

Wiring Type

Stranded wires (No solid wires)

Combined I/Os

4 (Can be configured as digital outputs or inputs)

Safe Torque OFF connector

9-pin D-Sub female (X41 Connecting point)

Power Supply Requirement

Separate for isolated output and inputs

Encoder

Integrated with EnDat 2.1/1 Vpp/TTL at X4.2 connecting point

Dispatch

Through a trustworthy vendor network with a worldwide presence.
