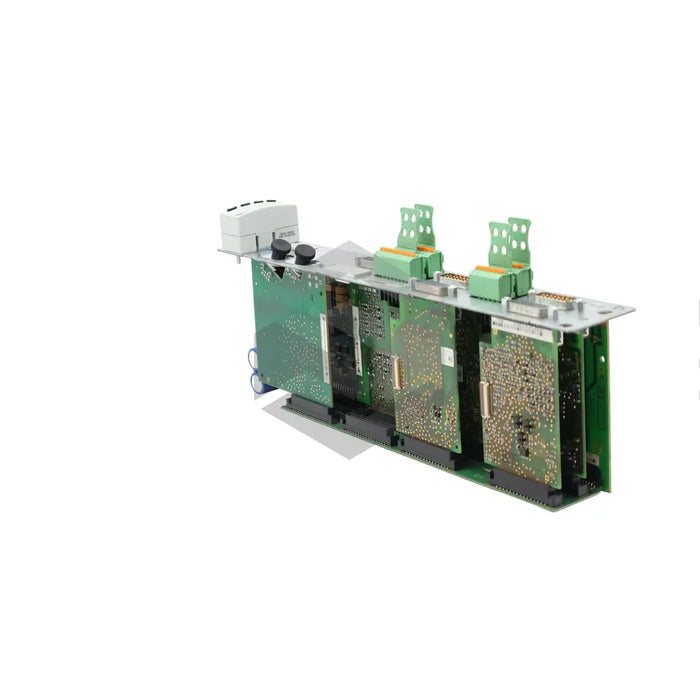

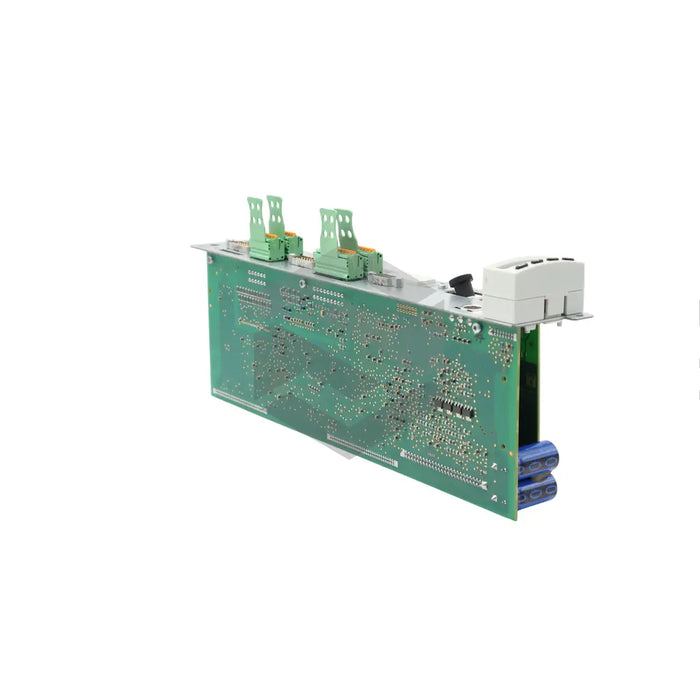

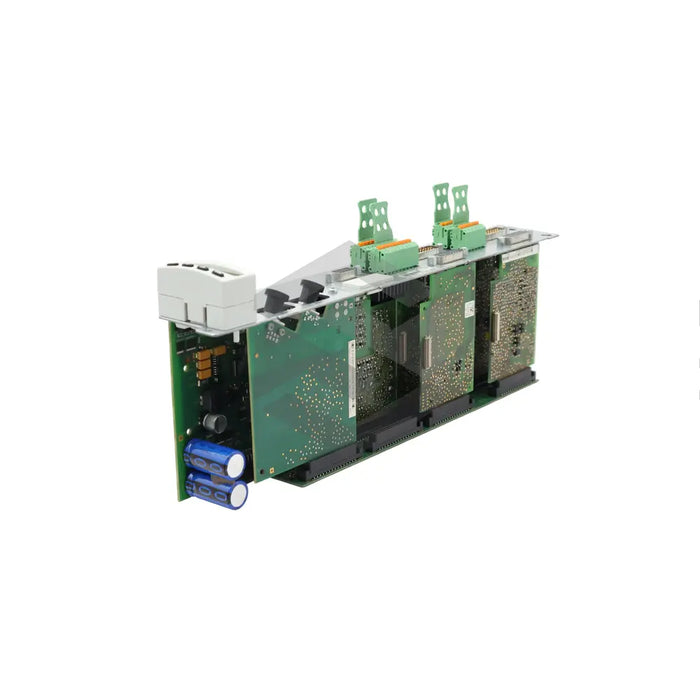

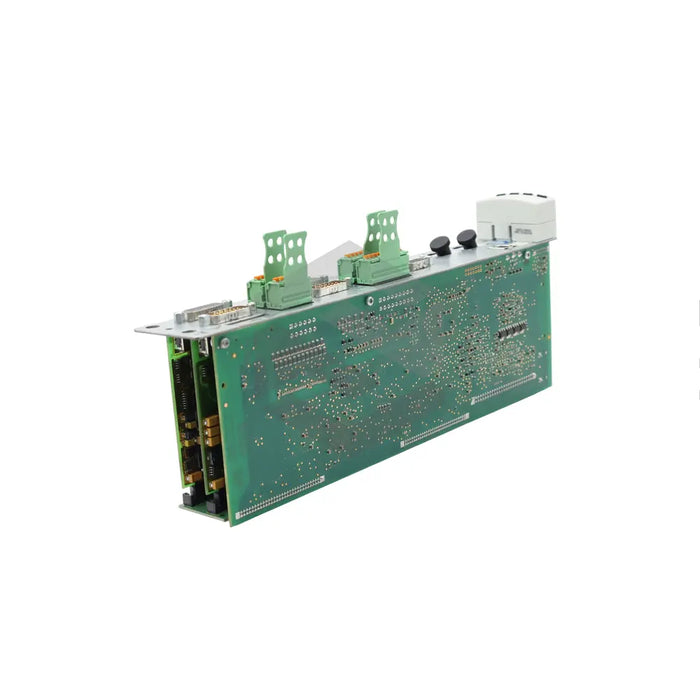

series image of CDB01.1C-SE-ENS-ENS-EN1-EN1-L1-S-NN-FW

CDB01.1C-SE-ENS-ENS-EN1-EN1-L1-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CDB01.1C-SE-ENS-ENS-EN1-EN1-L1-S-NN-FW, a control section produced by Bosch Rexroth Indramat, is designed for industrial applications and is primarily used in drive controllers for handling and mounting systems. Careful handling is crucial as the device is susceptible to damage if repeatedly detached and fitted to the power section. Prior to commissioning, it must be programmed for the motor to perform application-specific operations. The control section features two EN and EN1 optional modules, the latter typically outputting 18.2V AC with a maximum current of 70mA. Equipped with two Type 3 digital probe inputs, the digital outputs comply with IEC 61131 standards. The unit also supports two digital inputs as one analog voltage input and includes a multimedia memory card slot. Take note, for connections using spring terminals, wire ends without ferrules are recommended. Finally, this control section can be shipped in custom military-grade packaging if necessary.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Control Section
  • Product ID: CDB01.1C-SE-ENS-ENS-EN1-EN1-L1-S-NN-FW
  • Usage Environment: Industrial
  • Design Code: 1
  • Use Restrictions: Only for explicitly authorized applications
  • Interference Risk: High frequency interference in public low-voltage mains supplying residential areas
  • Optional Modules: Two EN and two EN1
  • EN1 module Specs: AC output Voltage 18.2V, Maximum output current 70mA, Minimum DC load resistance 35 Ohms
  • Digital Inputs: Two Type 3, functioning as probe
  • Digital Outputs: Complies with IEC 61131 specifications
  • Digital Input as Analog Voltage Input: Supported
  • Memory Card Slot: Available
  • Encoder Optional Modules Power Consumption: 6W each
  • Connection Type: Wire ends without ferrules for spring terminals
  • Maximum Pulse Width: 60ms
  • Packaging: Custom military-grade.
