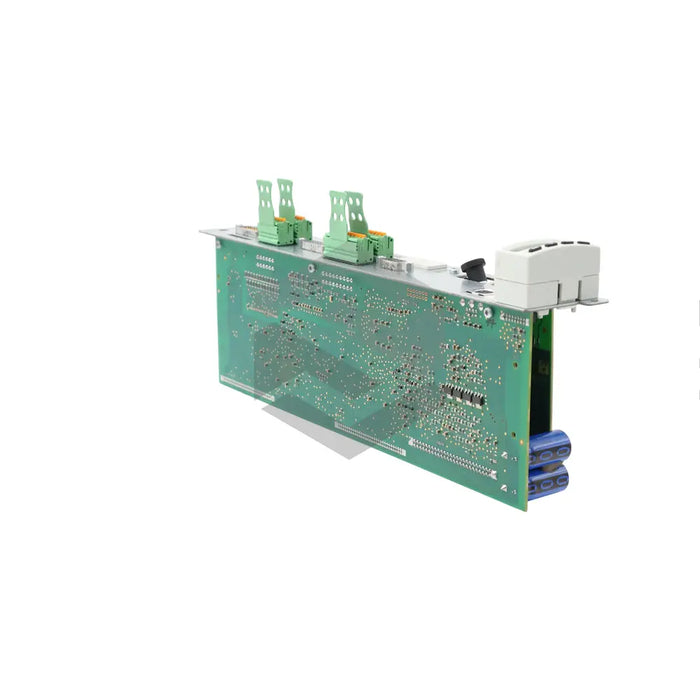

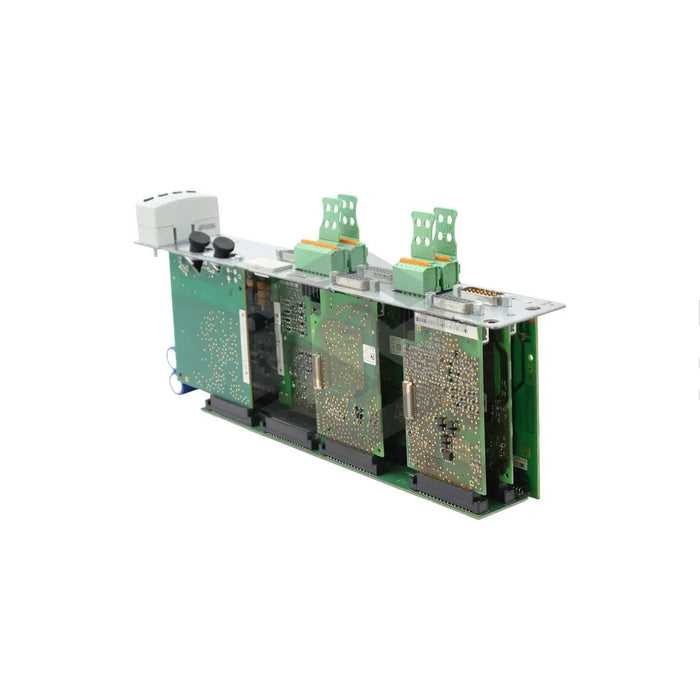

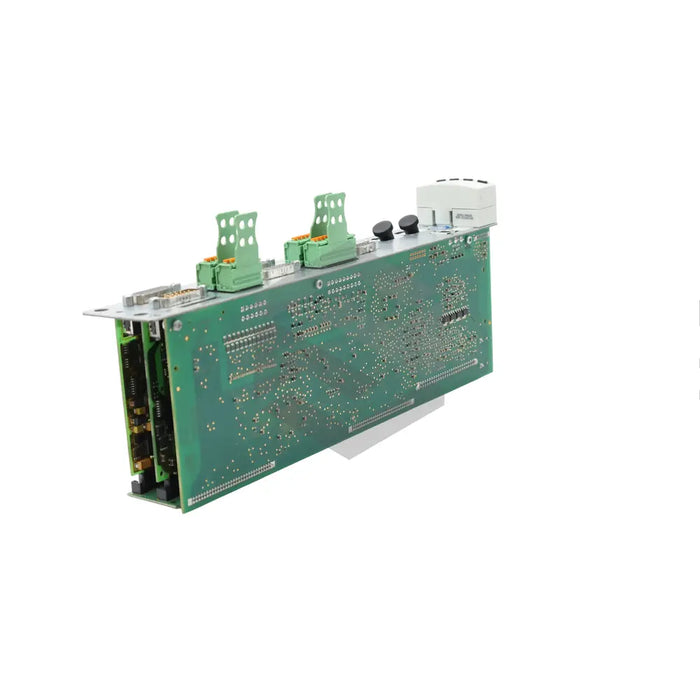

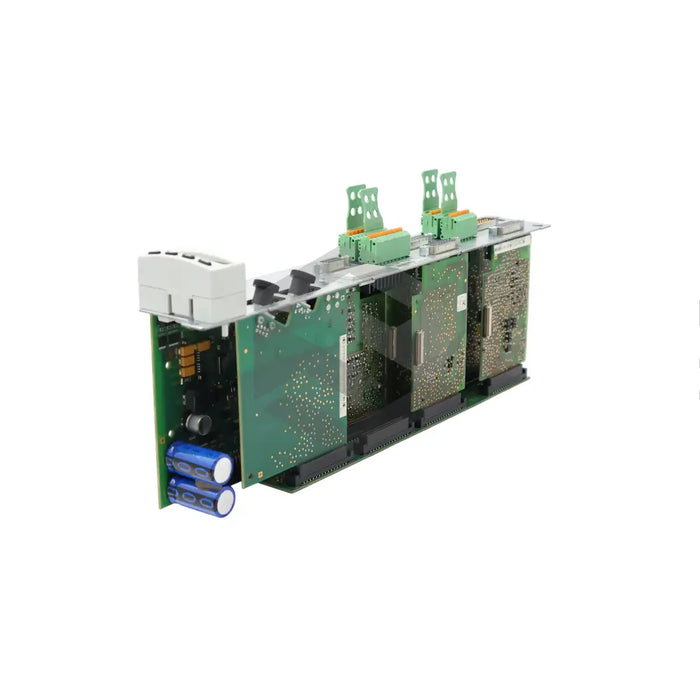

CDB01.1C-SE-ENS-ENS-EN1-EN1-L2-S-NN-FW

Request a quote
The Bosch Rexroth Indramat CDB01.1C-SE-ENS-ENS-EN1-EN1-L2-S-NN-FW is a double-axis control section with an analog input that complies with IEC 61131 specifications. Handling and installation should be performed by trained personnel due to potential risks of electrostatic charges and voltage misuse. Its operational safety is ensured when its equipment grounding conductor is permanently connected. Also, its features include a Normally Open relay contact and numerous switching frequencies. This control section, measuring 322.6 x 103 x 49.5 mm, has digital inputs at the X33 and X34 connection points. For user interaction, the control section has an H1 interface. It operates with a multimedia card to read and save operation data, drive parameters, and firmware. Furthermore, this control section's probe inputs support an input voltage range of -3V and 30V. Use and storage of the unit dictate compliance with safety protocols, including using conductive packaging.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: CDB01.1C-SE-ENS-ENS-EN1-EN1-L2-S-NN-FW
  • Analog Input Specification: IEC 61131
  • Installation Requirement: Trained and Qualified Personnel
  • Electrostatic Charge Impact: Potential Damage
  • Safety Precaution: No Operation in Damaged or Defective State
  • EMC compliance: Required
  • High Electric Voltage Risk: Present
  • Protective Gear Requirement: Guards and covers necessity
  • Axis: Double
  • Requirement Before Use: Permanent connection of equipment grounding conductor
  • Surface Condition Before Handling: Not Hot
  • Lifting Tools Necessity: Required
  • Firmware Identification: Separate Type Plate
  • Relay Contact: One Normally Open
  • Switching Frequency: More than One
  • Size: 322.6 x 103 x 49.5 mm
  • Digital Input Locations: X33 and/or X34
  • Control Panel Interface: H1
  • Control Panel Handling Guideline: No plugging or removing when power supply is active
  • Storage Requirement: Conductive packaging
  • Data Storage Method: Multimedia Card
  • Probe Input Voltage Range: -3V and 30V
