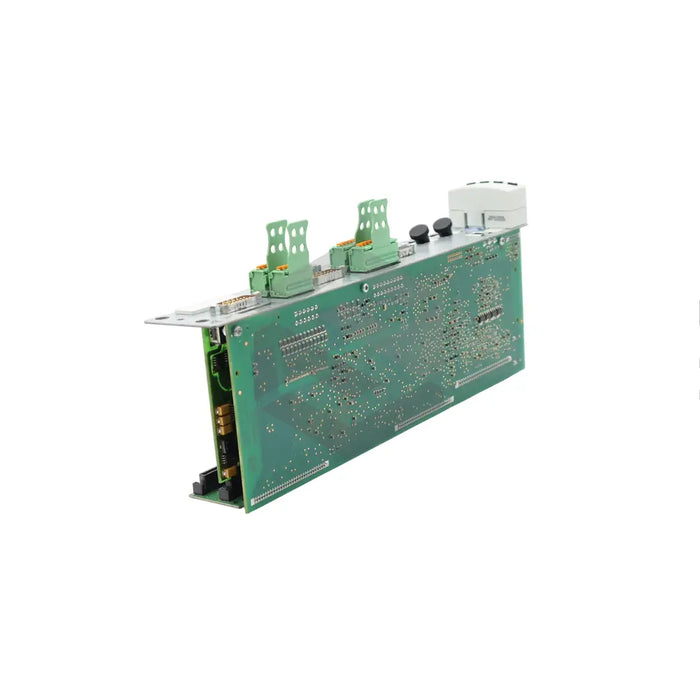

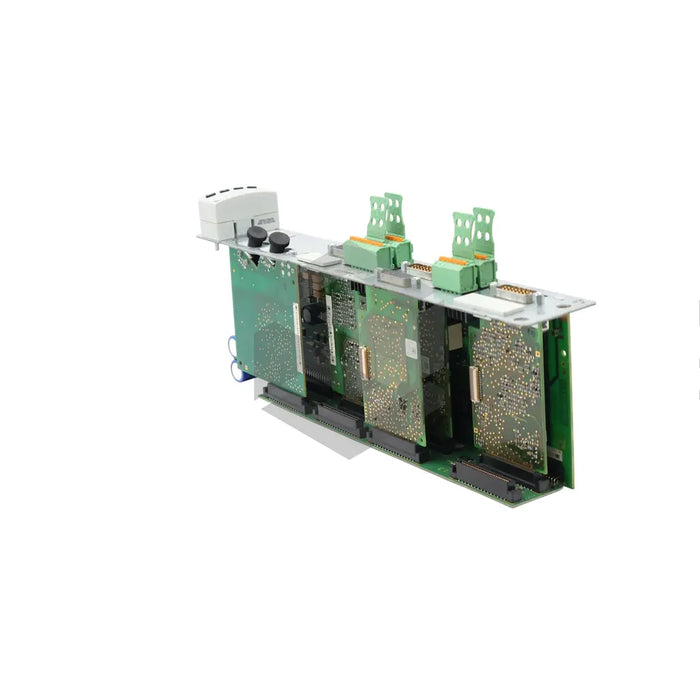

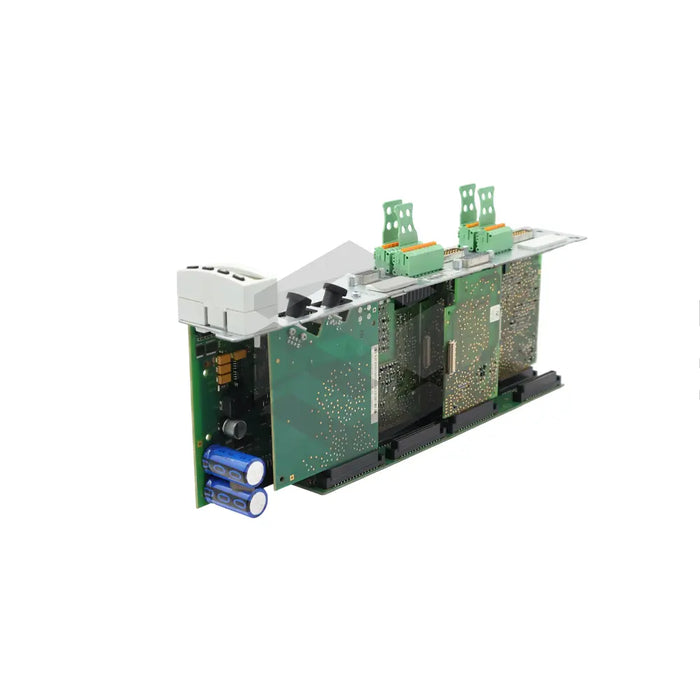

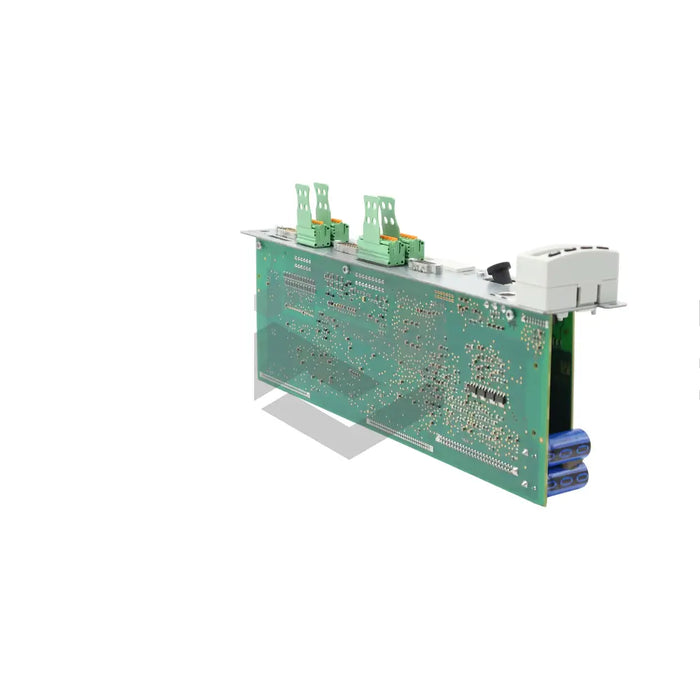

series image of CDB01.1C-SE-ENS-ENS-EN1-NNN-S1-S-NN-FW

CDB01.1C-SE-ENS-ENS-EN1-NNN-S1-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CDB01.1C-SE-ENS-ENS-EN1-NNN-S1-S-NN-FW, a double-axis control unit, is produced by Bosch Rexroth Indramat as part of the BASIC UNIVERSAL range. Primarily used in machine tools and robotics, this controller functions with two standard encoder evaluation interfaces, a Resolver and HSF encoder evaluation interface. It additionally features a SERCOS III control communication module with LED indicators, displaying the connection status. The controller's connectivity points include spring terminals and screw terminal blocks. It has a standard control panel displaying important information like operational state and error codes. It's important to note that this unit is not designed for hot plugging, implying it should only be connected or disconnected when machines are off. It can be operated via a user-focused IndraWorks PC software, with its IEC 61800-3 category C3 score making it ideal for industrial use.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: CDB Series
  • Application: Machine tools, Robotics
  • Control Section Type: Double-axis
  • Model: CDB01.1C-SE-ENS-ENS-EN1-NNN-S1-S-NN-FW
  • Control Section Range: BASIC UNIVERSAL
  • Interfaces: Two standard encoder interfaces, a Resolver and HSF encoder interface
  • Standard Encoder Interfaces: For encoders with a supply voltage of 12V
  • Resolver: Supports encoder systems with a supply voltage of DC 8 V or AC 18.2 V peak-peak
  • Control Communication Module: SERCOS III with LED indicators
  • Connection Points: Spring terminals and screw terminal blocks
  • Control Panel: Standard with single-line display
  • Operation: User-friendly IndraWorks software for PC or control panel
  • Hot Plug Suitability: Not suited
  • Usage Category: C3 according to IEC 61800‑3 (Best suited for industrial use)
