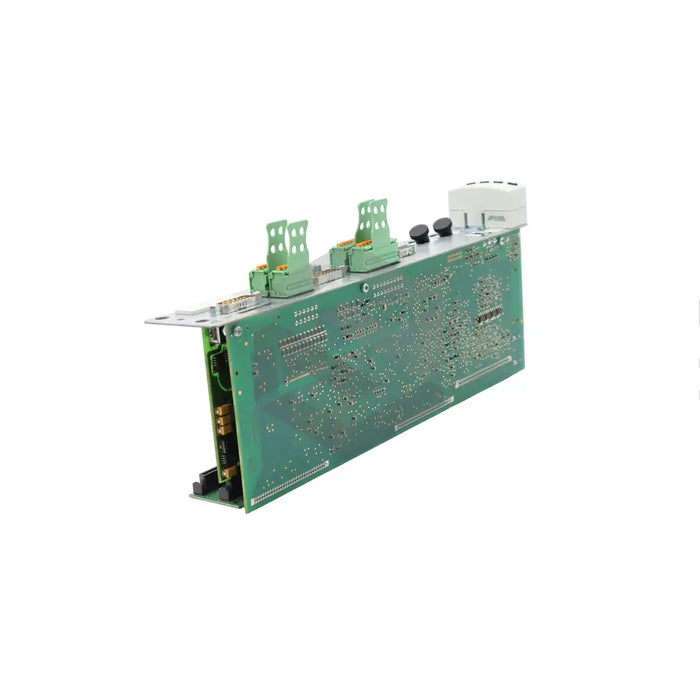

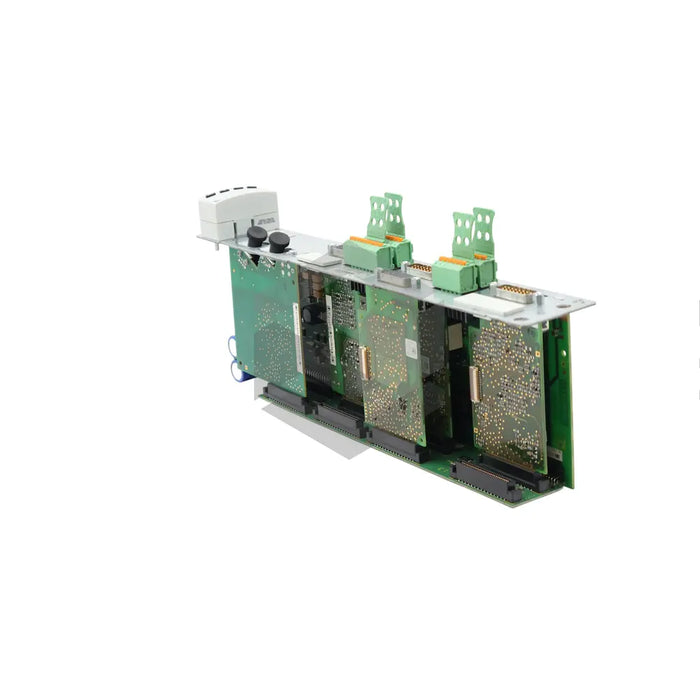

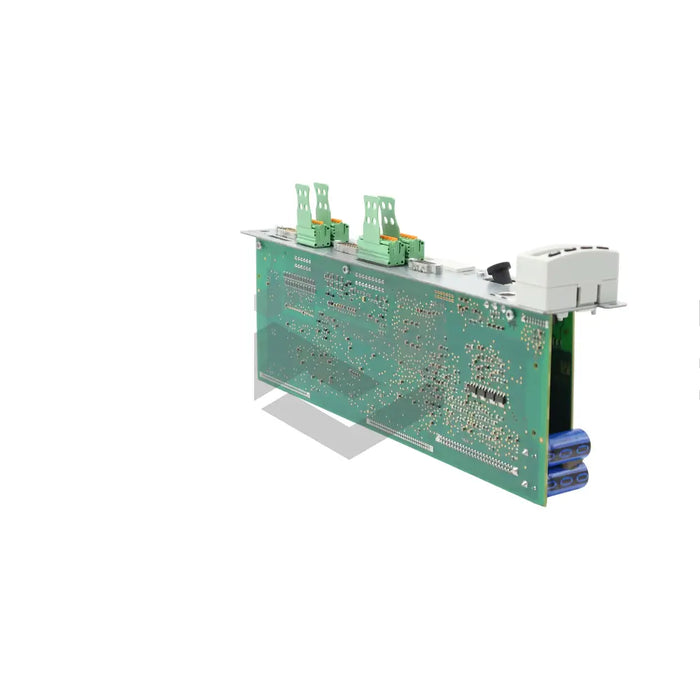

S image of CDB01.1C-SE-ENS-ENS-EN1-NNN-S2-S-NN-FW

CDB01.1C-SE-ENS-ENS-EN1-NNN-S2-S-NN-FW

by Bosch Rexroth Indramat
$2,356.19 - $2,356.19
$2,356.19
$2,356.19 - $2,356.19
$2,356.19

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat CDB01.1C-SE-ENS-ENS-EN1-NNN-S2-S-NN-FW is a configurable control section found within their wider IndraDrive drive system. This series is renowned for its amalgamation of dual digital axis attributes into a single unit. This control communication module, SERCOS III, is Ethernet-based and is perfect for applications requiring advanced precision in motion control, in line with IEE 802.3 standards. Two standard encoder interfaces, suitable for IndraDyn S MSK motor encoder systems, are also incorporated, running on a 12V supply voltage. The control panel, crucial for diagnostics, enables settings adjustments, error memory access, and displays operating states and potential warnings. The element has a standard inrush current of 6A and a maximum pulse width of 60ms, and its connection points include spring and screw terminals. It's compatible with firmware, which should be ordered separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Control Section

Series

CDB01

Model

CDB01.1C-SE-ENS-ENS-EN1-NNN-S2-S-NN-FW

Version

1

Control Communication Module

SERCOS III

Interface Standard

IEE 802.3

Encoder Interfaces

2 Standard

Supply Voltage Encoder Systems

12V

Supported Encoder Systems

IndraDyn S MSK motors, 5V-TTL square-wave encoder with reference track, Sin-cos encoder (1 Vpp) with Hiperface, Sin-cos encoder (1 Vpp) with reference track

Control Panel

Standard

Functions Control Panel

Setting transmission power and rate, Establishing position data reference, Accessing error memory

Display

Single-line

Inrush Current

6A

Maximum Pulse Width

60ms

Connection Points

Spring terminals and screw terminal blocks

Firmware Support

Yes

Firmware

Must be ordered separately
