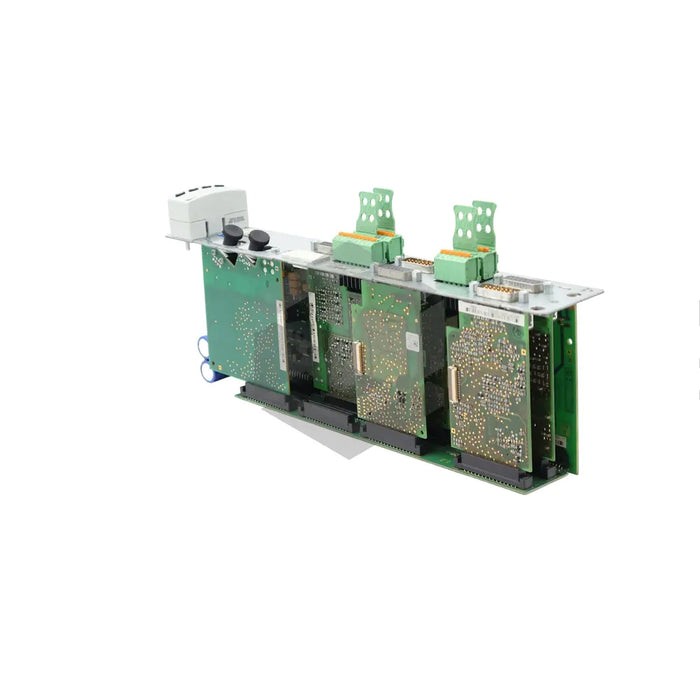

S image of CDB01.1C-SE-ENS-ENS-EN2-EN2-L1-S-NN-FW

CDB01.1C-SE-ENS-ENS-EN2-EN2-L1-S-NN-FW

by Bosch Rexroth Indramat
$2,356.19 - $2,356.19
$2,356.19
$2,356.19 - $2,356.19
$2,356.19

In Stock, Ships 1 - 3 Days

The CDB01.1C-SE-ENS-ENS-EN2-EN2-L1-S-NN-FW, a component of the Rexroth IndraDrive system, is a design type 1, double-axis control section manufactured by Bosch Rexroth Indramat. This control section supports a variety of applications including packaging machines, printing equipment, and more. It distinguishes itself with features such as customizable interfaces, varying cycle times, and multiple switching frequencies. It boasts four integrated I/O's, a SERCOS interface for high-level control unit connections, and accommodates encoders with 5V and 12V supply voltages. The CDB01.1C-SE-ENS-ENS-EN2-EN2-L1-S-NN-FW operates at switching frequencies of 2kHz, 4kHz, and 8kHz with a 125-microsecond current control cycle time. Safety measures include a starting lockout technology and a recommendation for limited mounting/dismounting to prevent damage. When not in use, conductive packaging is suggested for storage. Standard control panels regulate the control section, which also supports firmware compatibility.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

CDB01 control section series

Product Type

Configurable, double-axis control sections

Range

BASIC UNIVERSAL

Integrated I/Os

4

Design Type

1

SERCOS interface

Enabled

Standard Encoder Interface Supply Voltage

12V

Standard Encoder Interface Support

Sin-cos encoder(1Vpp) with reference track, Sin-cos encoder(1Vpp) with Hiperface interface

Encoder Evaluation Interface Supply Voltage

5V

Encoder Evaluation Interface Support

Sin-cos encoder(1Vpp); EnDat 2.1 with Sense lines, 5V-TTL square wave encoder with reference track

Switching Frequency

2kHz, 4 kHz and 8kHz

Current Control Cycle Time

125 microseconds

Starting Lockout Technology

Utilized

Mounting/Dismounting Limit

20 times

Packaging

Conductive

Control Panel

Standard

Firmware Compatibility

Yes
