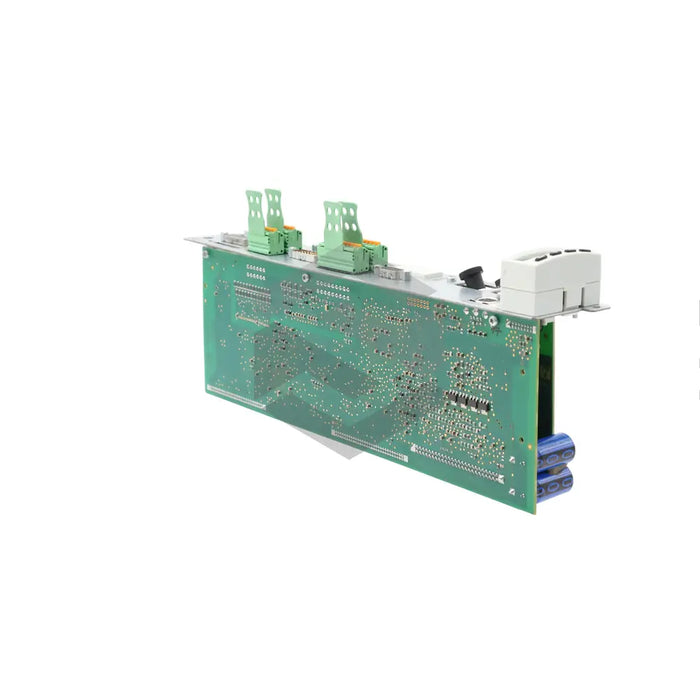

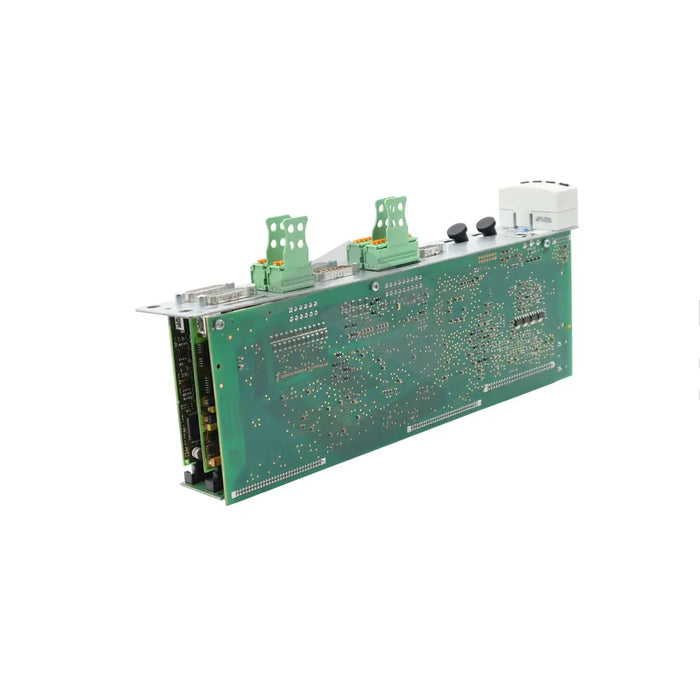

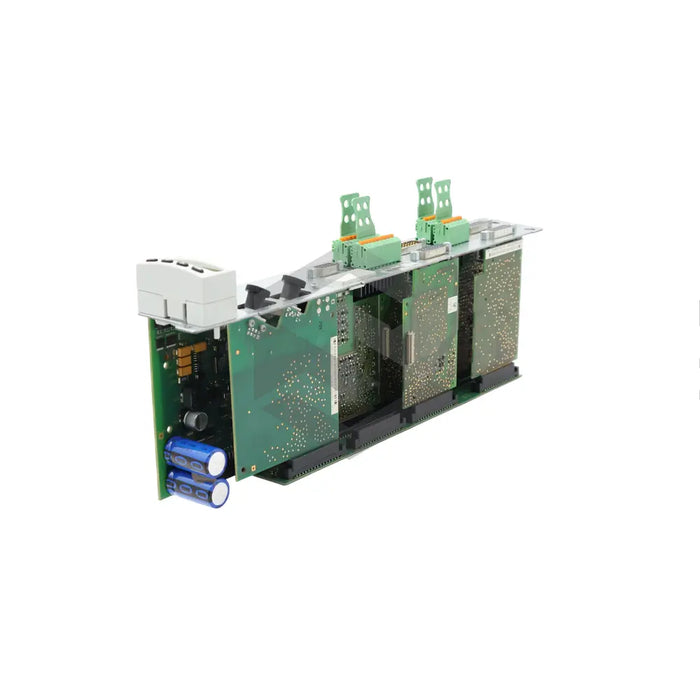

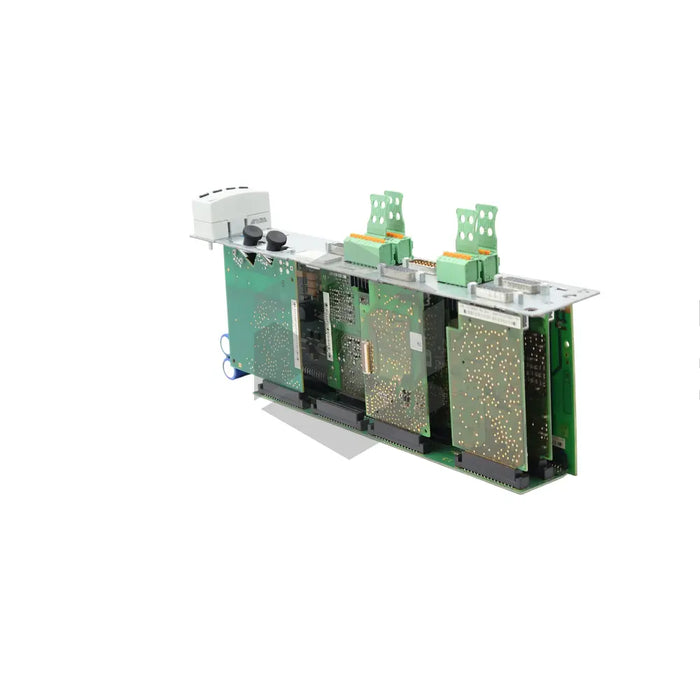

series image of CDB01.1C-SE-ENS-ENS-EN2-MA1-S1-S-NN-FW

CDB01.1C-SE-ENS-ENS-EN2-MA1-S1-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CDB01.1C-SE-ENS-ENS-EN2-MA1-S1-S-NN-FW is Bosch Rexroth Indramat's distinctive, double-axis control section from the CDB01 series. Utilized primarily in industries like packaging, food machinery, machine tools, handling and mounting systems, and printing and paper processing. Serving as an integral component of the IndraDrive drive system, it offers dual standard encoder evaluation interfaces compatible with 5V and 12V supply voltages, effective to multiple types of encoders. This control section creatively uses PROFIBUS for its control communication. The potential for the number of analog channels is expansible with the Analog I/O Extension, which also refines the resolution of the control section's analog channels. Safety features prevalent with the Safety Technology I/O module are a valuable addition. To further enhance user interaction, a standard control panel with a single-line display and key functions is included. Use in residential areas requires radio interference suppression filters due to its C3 category in accordance with IEC 61800‑3.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: CDB01
  • Product Type: Control section
  • Control Section Integration: Double-axis
  • Suitable For: Packaging and food machines, Machine tools, Handling and mounting systems, Printing and paper processing machines
  • Encoder Support: Encoders with supply voltage of 5V (2 interfaces) and 12V
  • Encoder Type: 5V-TTL square-wave encoder with reference track, Sin-cos encoder (1 Vpp) with reference track, Sin-cos encoder (1 Vpp) with EnDat 2.1
  • Control Communication: PROFIBUS
  • Analog Channels: Expandable with Analog I/O Extension
  • Safety Functions: Safety-related standstill, Safety-related drive interlock, Safety-related reduced speed with Safety Technology I/O module
  • Control Panel: Standard with four keys and single-line display
  • Product Category: C3 according to IEC 61800‑3
  • Operation Location: Industrial locations (Residential operation requires radio interference suppression filters)
