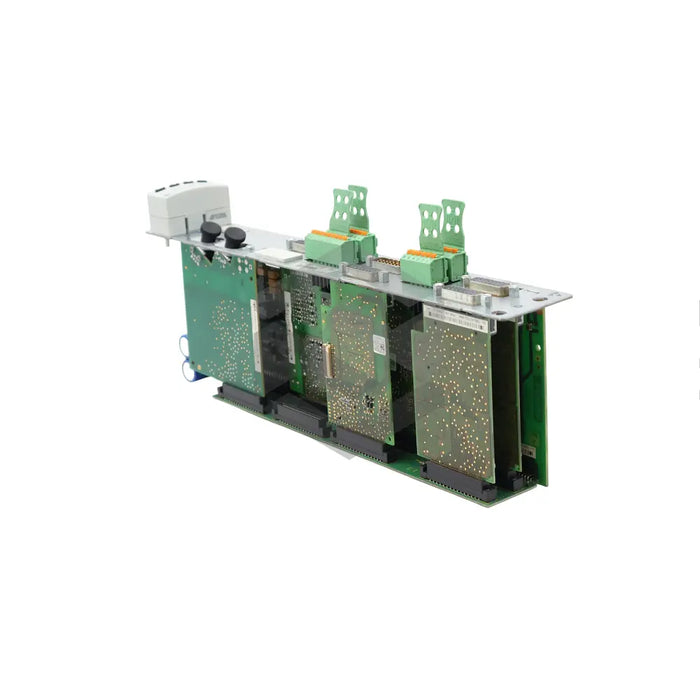

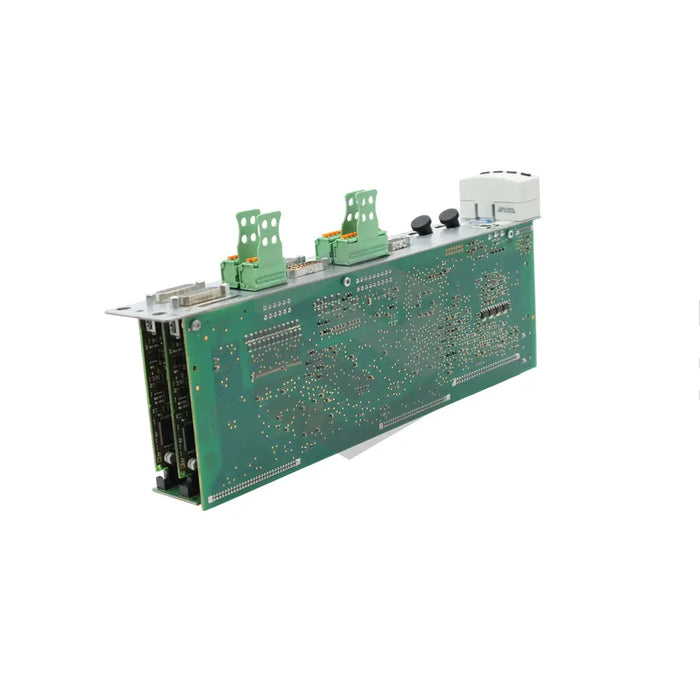

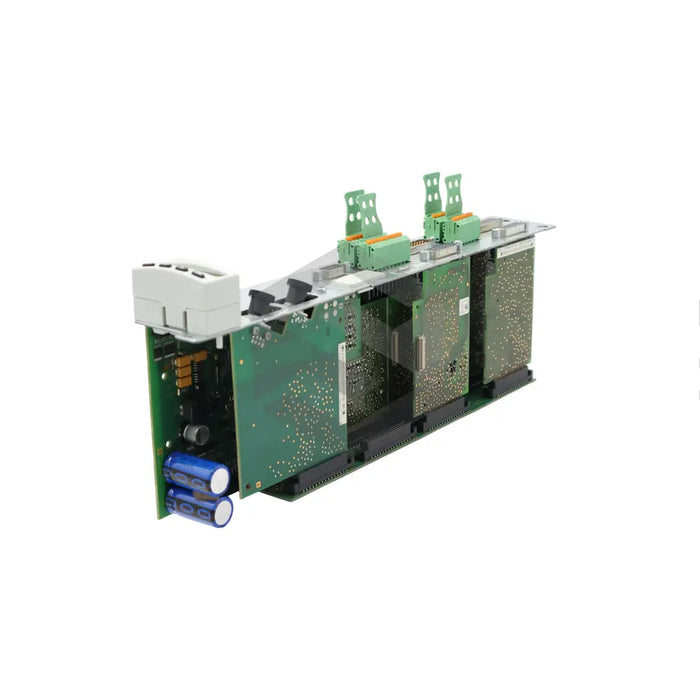

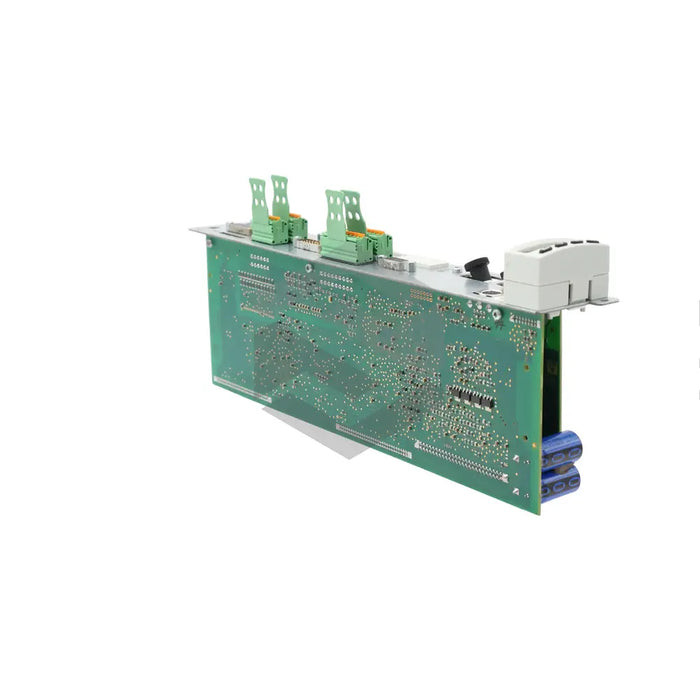

series image of CDB01.1C-SE-ENS-ENS-MEM-MA1-S2-S-NN-FW

CDB01.1C-SE-ENS-ENS-MEM-MA1-S2-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
Bosch Rexroth Indramat's product, CDB01.1C-SE-ENS-ENS-MEM-MA1-S2-S-NN-FW, is a two-axis control device from the highly versatile IndraDrive system. Equipped with a SERCOS interface, it enables seamless communication within the drive system and significant control over the module's voltage and the SERCOS transmission power through a standard control panel. The panel also aids in system troubleshooting by offering access to the device's error memory. Standard encoder interfaces in the controller allow linkage to multiple encoders, functioning on a 5V supply voltage. The control section has a built-in safety technology module - "Safe Motion," with safety capabilities certified to SIL2/cat. 3 PL d rating, enhancing safe, efficient operations. The firmware for the device is available separately. Its typical inrush current is 6A with a maximum pulse width of 60ms, suitable for applications like machine tools, paper processing, and mounting systems.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: CDB01
  • Model: CDB01.1C-SE-ENS-ENS-MEM-MA1-S2-S-NN-FW
  • System Type: Rexroth IndraDrive drive system
  • Component Type: Double-axis control section model
  • Communication Interface: SERCOS interface
  • Control Panel: Standard control panel
  • Encoder Interface: Two standard encoder interfaces
  • Connected Encoders: MSK motors encoder system,1Vpp sin-cos encoder with reference track, 5V-TTL square-wave encoder with reference track
  • Encoder Supply Voltage: 5V
  • Firmware: Must be ordered separately
  • Safety Technology Module: Safe Motion
  • Safety Rating: SIL2/cat.3 PL d
  • Safety Functions: Safe maximum speed, safe direction, safe door locking, safe diagnostic outputs etc.
  • Inrush Current: 6A
  • Maximum Pulse Width: 60ms
  • Applications: Handling and mounting systems, paper processing and printing machines, machine tools
