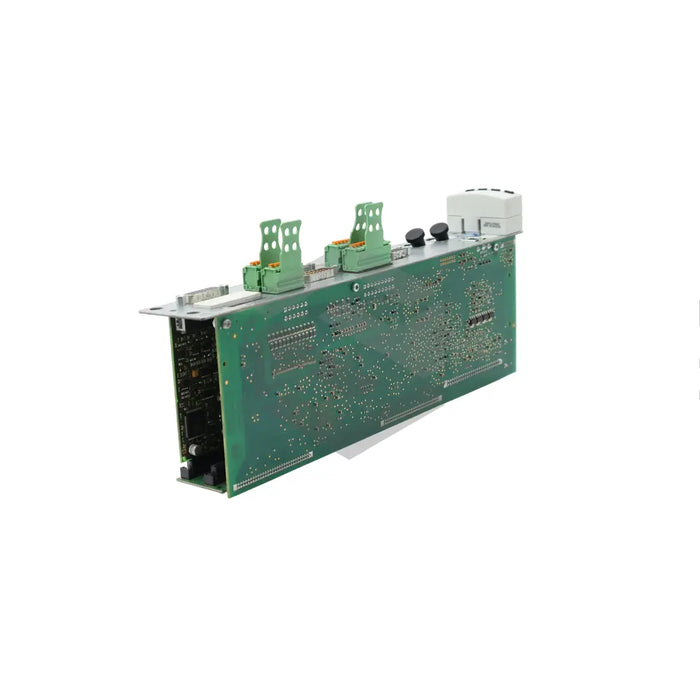

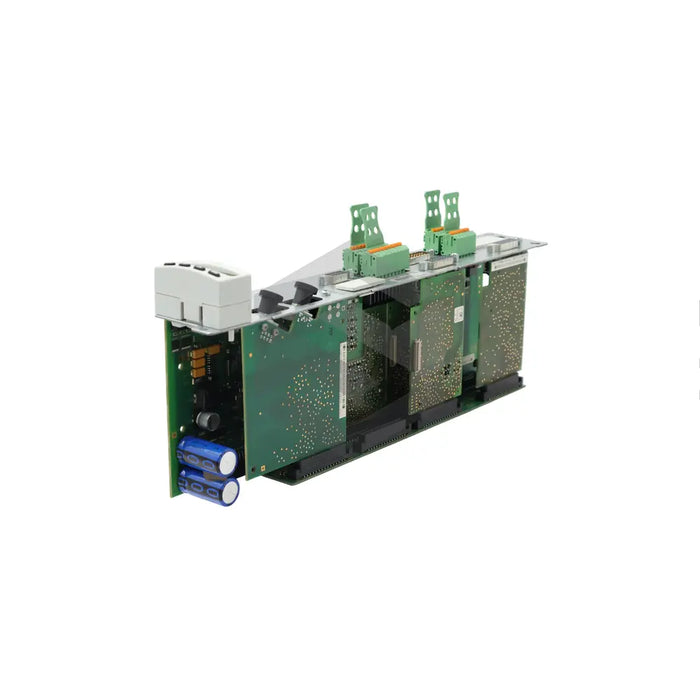

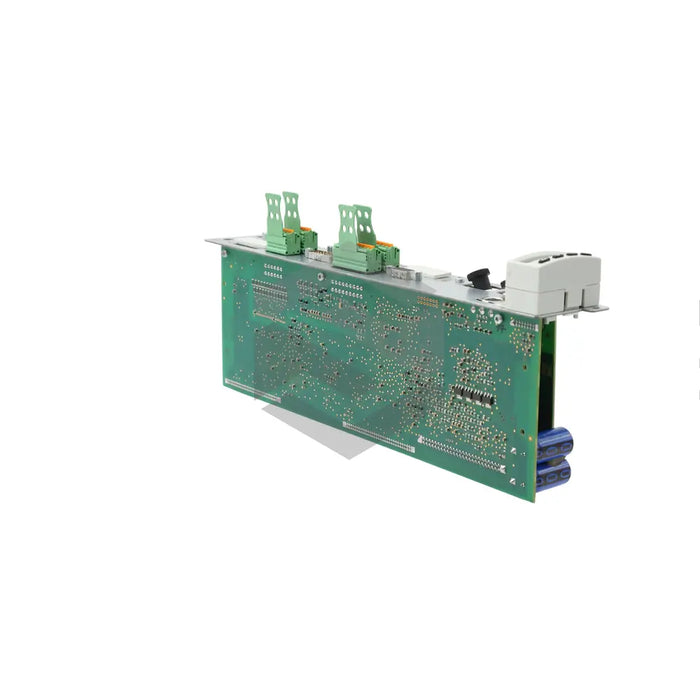

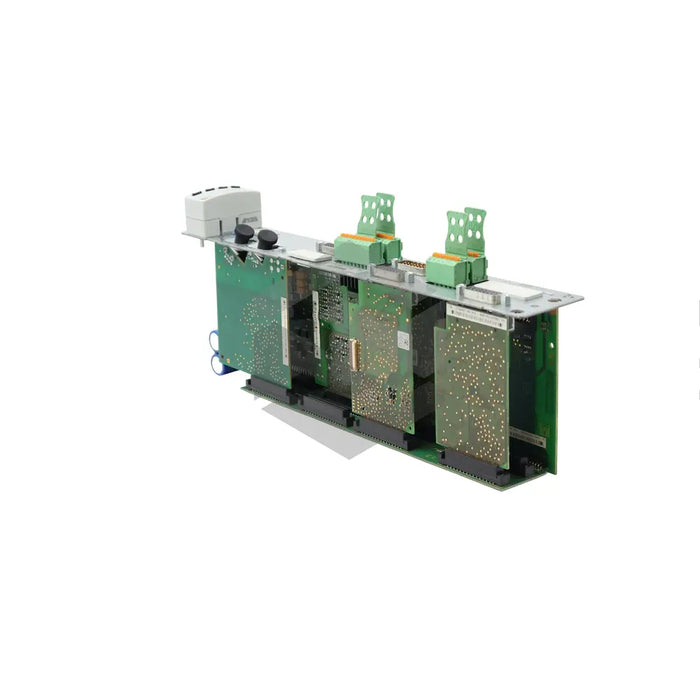

series image of CDB01.1C-SE-ENS-ENS-NNN-MA1-L2-S-NN-FW

CDB01.1C-SE-ENS-ENS-NNN-MA1-L2-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat CDB01.1C-SE-ENS-ENS-NNN-MA1-L2-S-NN-FW is a CDB control section, part of their IndraDrive range. This double-axis control unit is ideally paired with a power section, featuring circuit board interfaces and optional modules. It can store dual-axis drive parameters via an optional MMC. It employs certified safety technology, including a "Safe Torque Off” feature, adhering to EN 138491-1 / EN 62061 safety standards. The device uses SERCOS II control communication and its encoder interfaces are compatible with IndraDyn motors. Additionally, it includes an Analog Input/output extension and a standard operator panel. The CDB01.1C-SE-ENS-ENS-NNN-MA1-L2-S-NN-FW operates effectively between 0-40°C (up to 55°C with power reduction) and tolerates a storage temperature from -25 to 55°C. It holds an IP 20 protection degree and functions optimally at a mains frequency range of 50-60 Hz (±2), with a mains input voltage of 3 x AC 400 – 480. Moisture condensation and icing conditions are to be avoided.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Category: IndraDrive
  • Model: CDB01.1C-SE-ENS-ENS-NNN-MA1-L2-S-NN-FW
  • Type: CDB Control Section
  • Range: Basic
  • Connection: Power Section
  • Features: Circuit Board Interfaces, Optional Modules
  • Control: Universal Double-Axis Control Section
  • Optional Storage: Dual-Axis Drive Parameters
  • Safety Technology: EN 138491-1 / EN 62061 (Safe Torque Off)
  • Control Communication: SERCOS II
  • Encoder Interfaces: Option 1 & 2 Suited to IndraDyn Motors
  • Fourth Interface: Analog Input/Output Extension
  • Operator Panel: Standard
  • Allowable Moisture: No Condensation or Icing
  • Transportation Temperature Range: -25 to 70 degrees C
  • Storage Temperature Range: -25 to 55 degrees C
  • Protection Degree: IP 20
  • Ambient Operating Temperature: 0 – 40 degrees C (0 – 55 degrees C with power reduction)
  • Mains Frequency Range: 50 – 60 Hz (±2)
  • Mains Input Voltage: 3 x AC 400 – 480
  • Rotary Field Condition: None
