CDB01.1C-SE-ENS-ENS-NNN-MA1-S1-S-NN-FW

Request a quote

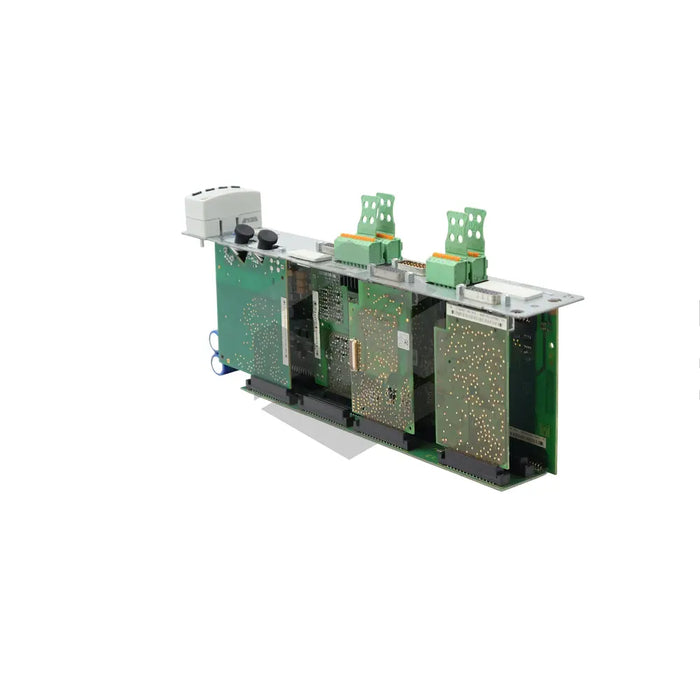

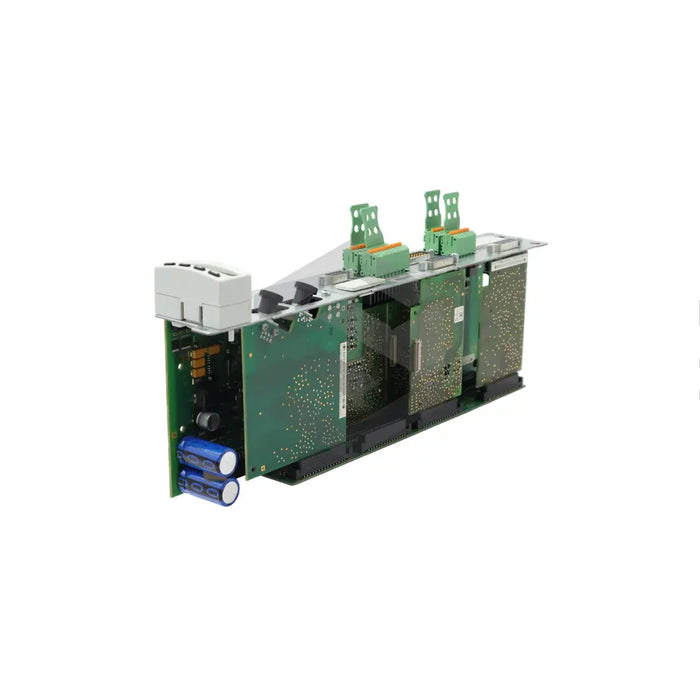

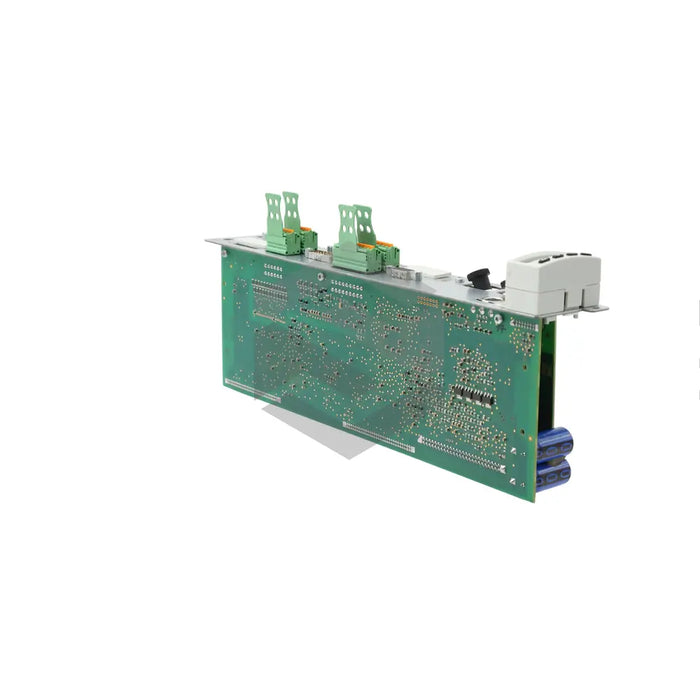

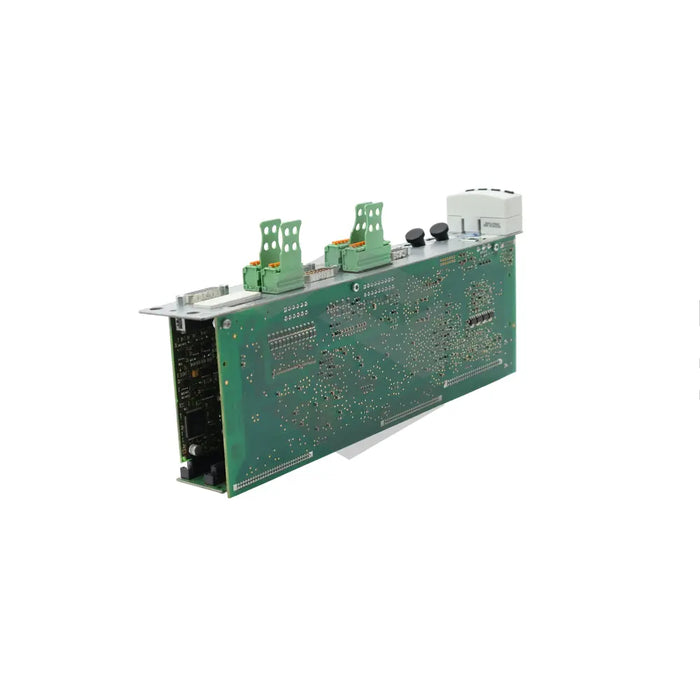

The CDB01.1C-SE-ENS-ENS-NNN-MA1-S1-S-NN-FW is an advanced, customizable control unit developed by Bosch Rexroth as part of the CDB01 series. This compact, dual-axis module has the capability to seamlessly integrate with power sections of drive controllers. It is equipped with a SERCOS communication module for high-level communication with control units via fiber optic cables, and also includes two standard encoder evaluation interfaces for optimal connectivity with various encoders. An additional feature is its Analog I/O extension, which enhances the number of analog channels and their resolution. The unit's Safety Technology I/O module allows for application-specific safety functionalities like safety-related speed reduction and direction control. A standard control panel is available to monitor system states, errors, and warnings, while allowing navigation of the device’s error memory, drive address and analog inputs settings, and position data reference establishment. This control unit is ideal for use in systems such as machine tools, food processing machines, and paper processing machines.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product: CDB01.1C-SE-ENS-ENS-NNN-MA1-S1-S-NN-FW
  • Product Family: CDB01 series
  • Product type: Control sections
  • Communication module: SERCOS
  • Number of standard encoder evaluation interfaces: Two
  • Type of encoders connected: MSK (IndraDyn S) servo motors, Sin-cos encoders with Hiperface and EnDat 2.1
  • Extensions: Analog I/O extension
  • Safety functions provided: Safety-related reduced speed, Safety-related direction of motion
  • Control panel display: Single-line display
  • Control panel functions: Error memory navigation, Drive address setup, Analog input setup, Motor’s position data reference establishment
  • Application: Handling and mounting systems, Food packaging and processing machines, Paper processing machines, Machine tools
