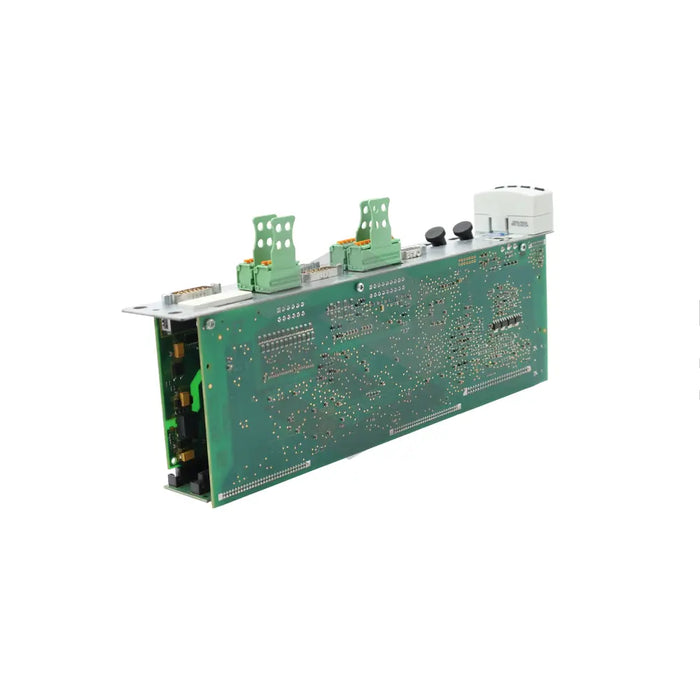

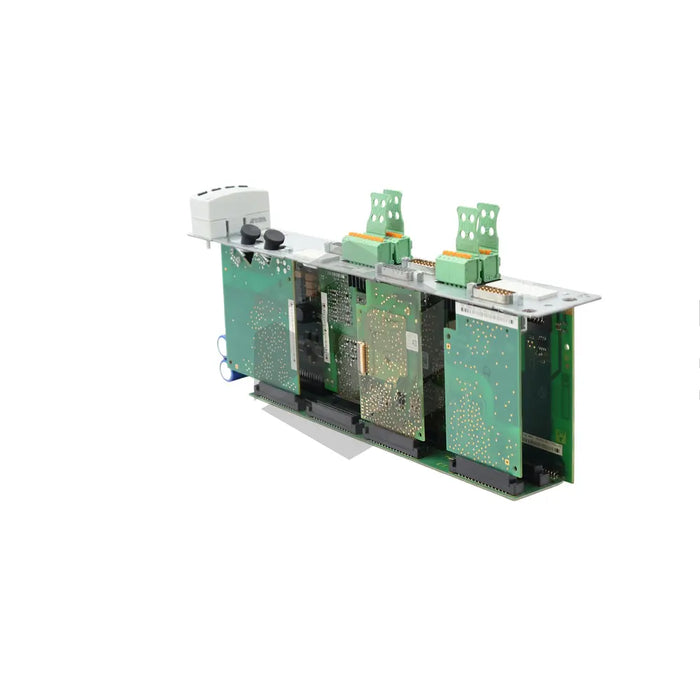

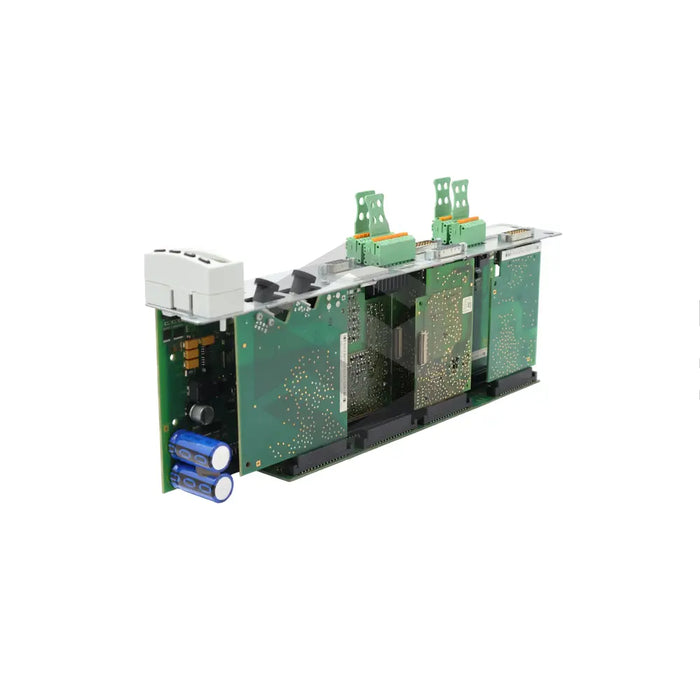

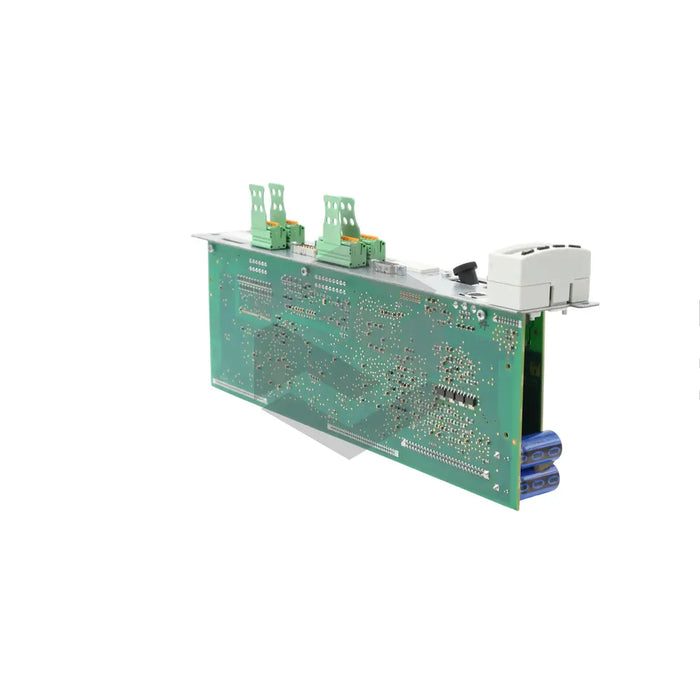

series image of CDB01.1C-SE-ENS-ENS-NNN-MEM-L1-S-NN-FW

CDB01.1C-SE-ENS-ENS-NNN-MEM-L1-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CDB01.1C-SE-ENS-ENS-NNN-MEM-L1-S-NN-FW basic universal control section is crafted by Bosch Rexroth Indramat for their drive controller. The device contains a type plate and utilizes a SERCOS interface, with a power consumption of 2W, for master communication through fiber optic cables. Dimensionally, it measures 322.6 x 103 x 49.5mm and includes a memory card slot in the X7 connector. The unit comes with digital and analog inputs/outputs and an H1 interface for control panel connectivity. A protective diode shields from polarity reversal and incorrect connection. The device also houses a "Normally Open" relay contact and requires separately purchased firmware. The control section has four combined configurable inputs/outputs, offering a minimum SERCOS cycle time of 1,000µs. It is designed for industrial use and can be damaged by contact with conductive parts or frequent mounting. Proper understanding of the documentation is required before use.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product line: CDB
  • Control Section Model: CDB01.1C-SE-ENS-ENS-NNN-MEM-L1-S-NN-FW
  • Interface type: SERCOS
  • Power consumption of SERCOS interface: 2W
  • Unit size (mm): 322.6 x 103 x 49.5
  • Connector with Memory Card slot: X7
  • Interface for control panel: H1
  • Relay contact: Normally Open
  • Number of combined inputs/outputs: 4
  • Configurable as either: Digital input or digital output
  • Minimum SERCOS cycle time: 1000µs
  • Usage: Industrial environments
