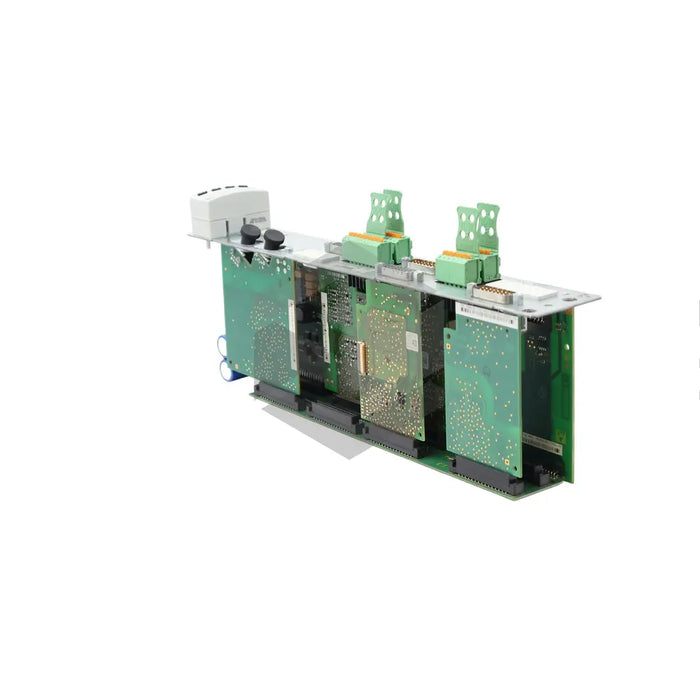

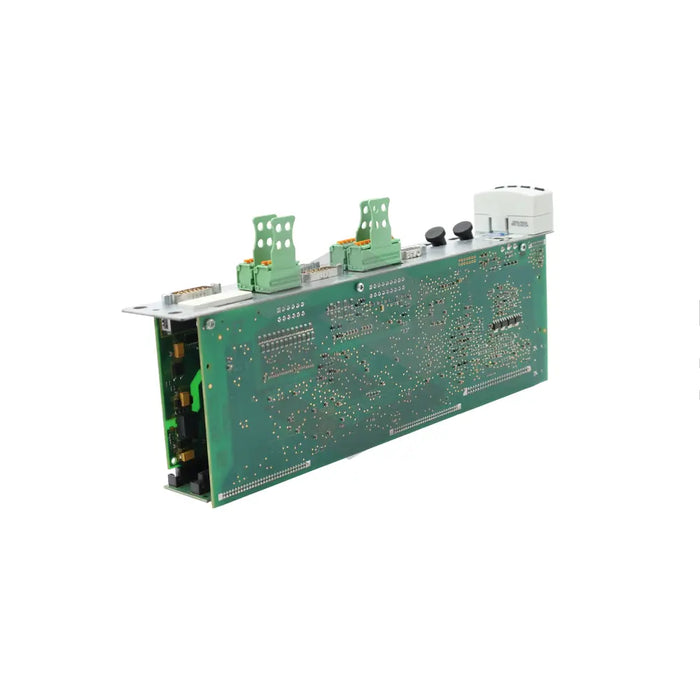

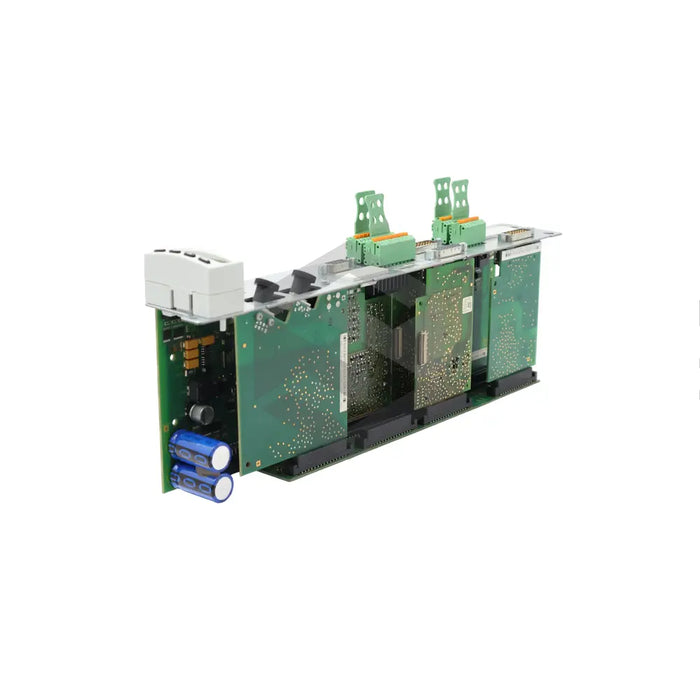

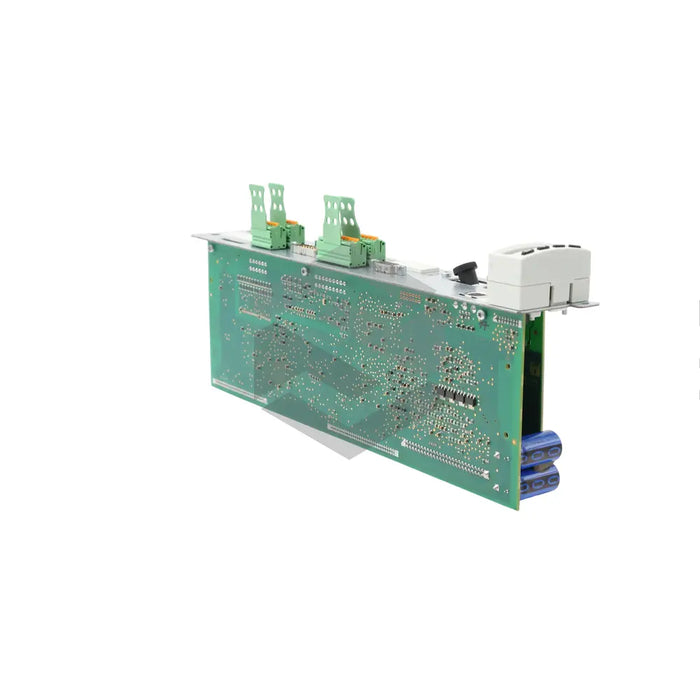

series image of CDB01.1C-SE-ENS-ENS-NNN-MEM-S2-S-NN-FW

CDB01.1C-SE-ENS-ENS-NNN-MEM-S2-S-NN-FW

by Bosch Rexroth Indramat
$3,562.61 - $3,562.61
$3,562.61
$3,562.61 - $3,562.61
$3,562.61
Available, Shipping Varies
The Bosch Rexroth Indramat's CDB01.1C-SE-ENS-ENS-NNN-MEM-S2-S-NN-FW is a universal control section capable of supporting either a memory card with loaded firmware or a preformatted card for easy parameter transmission. The control section features digital inputs and outputs that align with IEC 61131 Type 1 standards and cannot operate at low-resistance sources. It also contains probe-configurable inputs to prevent incorrect evaluations. Notably, the control section should not be subjected to extreme temperature fluctuations. The product includes three switching frequencies and an 8-pole circular RS 232 interface for versatile parameterization, programming, and servicing. It consumes 9W power at 24VDC and uses a MEM optional module for signal emulation. With galvanically isolated signals, the MEM module ensures protection against overload. The section can detect less sophisticated measuring marks through its digital inputs and boasts a current control cycle time of 125µs.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: CDB01.1C-SE-ENS-ENS-NNN-MEM-S2-S-NN-FW
  • Product Type: Basic Universal Control Section
  • Support: Memory card with loaded firmware or a preformatted memory card
  • Digital Inputs and Outputs: Conform to IEC 61131, Type 1 specifications
  • Probe Inputs: Two each of Type 2 and Type 3, Minimum pulse width 4μs
  • Switching Frequencies: 2kHz, 4kHz, and 8kHz
  • Interface: 8-pole circular RS 232 serial interface for parameterization, programming, and diagnosis
  • Power Consumption: 9W at 24VDC
  • MEM Optional Module: Emulates incremental encoder and absolute value signals
  • Protection: Protection against overload with MEM module
  • Axes: Two
  • Current Control Cycle Time: 125µs
