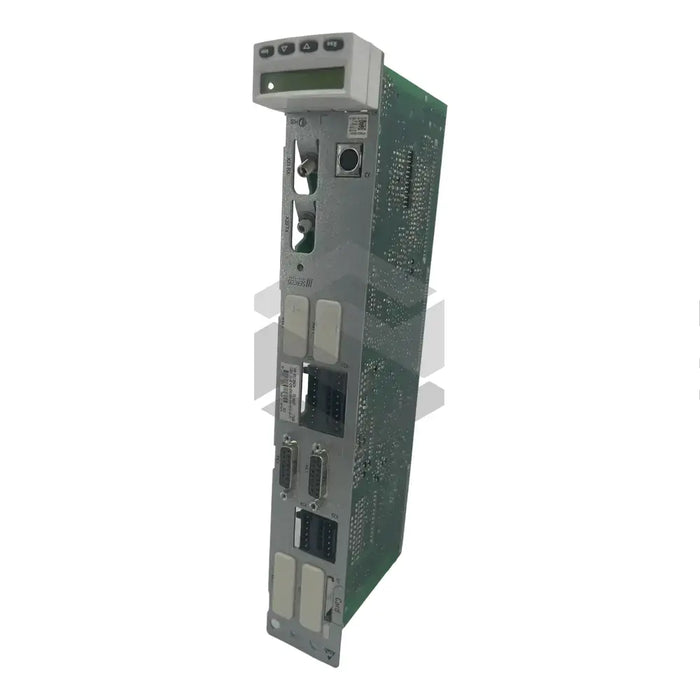

product Main (Front Left) image of CDB01.1C-SE-ENS-ENS-NNN-NNN-NN-S-NN-FW

CDB01.1C-SE-ENS-ENS-NNN-NNN-NN-S-NN-FW

by Bosch Rexroth Indramat
$2,562.03 - $2,562.03
$2,562.03
$2,562.03 - $2,562.03
$2,562.03
In Stock, Ships Today
The Bosch Rexroth Indramat-produced CDB01.1C-SE-ENS-ENS-NNN-NNN-NN-S-NN-FW is a control section module, devoid of harmful substances like asbestos and mercury. Enclosed within the drive controller's power section, it features a circuit board with 9W power consumption at 24VDC, two terminal connectors rated 0V and 24V, a standard control panel, and Hiperface/1Vpp encoder with 6W power consumption, 11.6V voltage, and 500mA output current. In compliance with IEC 61131 standards, it accommodates analog inputs and digital outputs and includes an X2 connection point supporting RS232 serial interface connection. It promotes reduced input resistance through parallel mounting of analog input and digital inputs. Not usually sold separately, this section fits into the Option MC slot with a SERCOS interface that has distortion LED. Ideal for machine tools and mounting systems, it operates best in specific ambient conditions.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: CDB01.1C-SE-ENS-ENS-NNN-NNN-NN-S-NN-FW
  • Harmful Materials: None
  • Connection Points type: Screw terminal blocks and spring terminals
  • Power Consumption: 9W at 24VDC
  • Terminal Voltage Ratings: 0V and 24V
  • Control Panel: Standard
  • Global Shipping: Yes
  • Digital Output Operation: Not near low-resistance sources
  • Control Panel Functionality: Setting analog outputs and drive address
  • Hiperface/1Vpp encoder Power Consumption: 6W
  • Hiperface/1Vpp encoder Voltage: Typical 11.6V
  • Hiperface/1Vpp encoder Output Current: Max 500mA
  • Analog Inputs and Digital Outputs Standard: IEC 61131
  • SERCOS Interface: Fitted with a distortion LED
  • Parallel Mounting: Analog input and digital inputs
  • SERCOS Interface Mounting: Option MC slot
  • X2 connection point: Supports RS232 serial interface
  • Use Cases: Machine tools, mounting and handling systems
  • Ambient Conditions: Use in specified position only.
