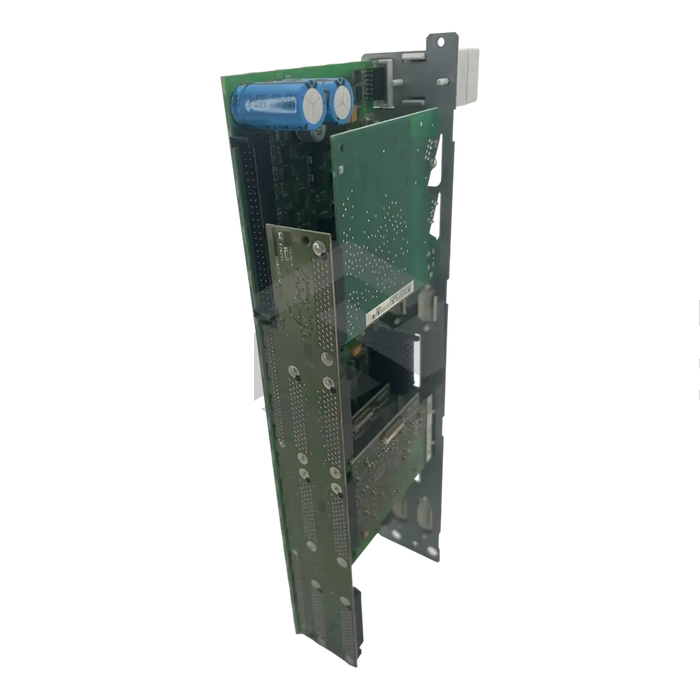

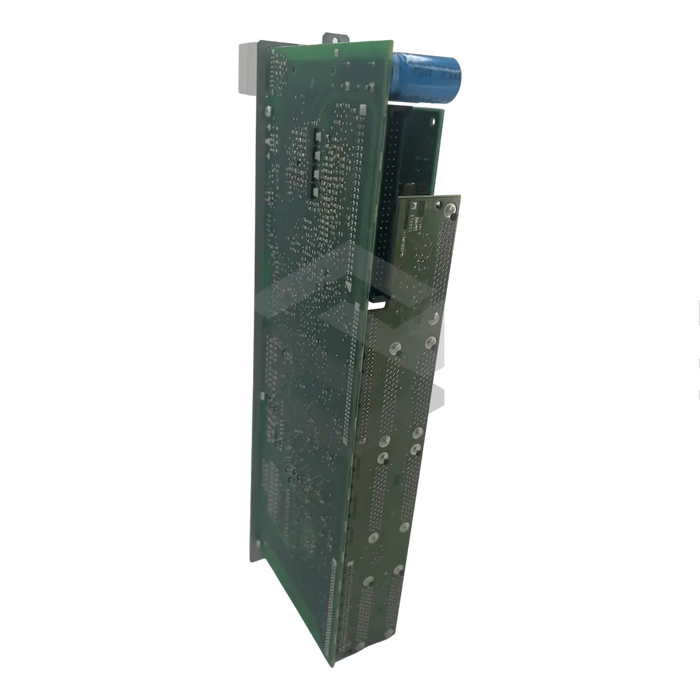

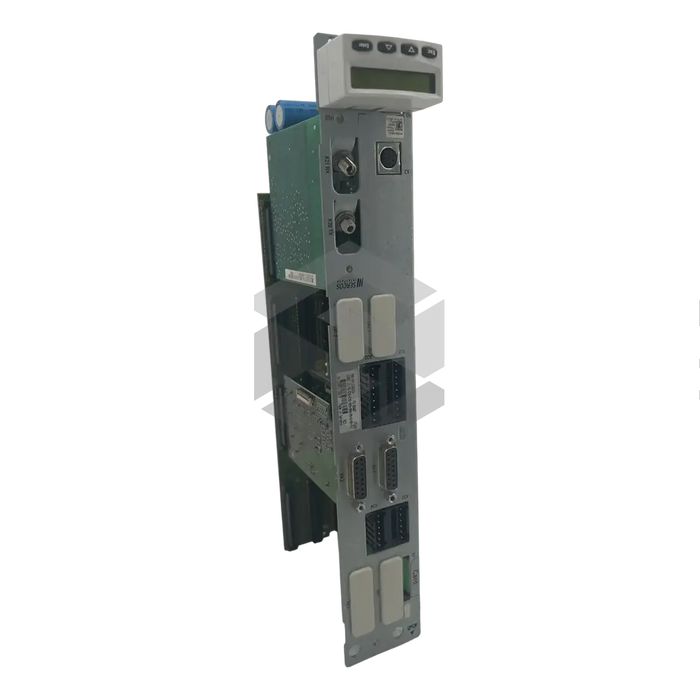

C image of CDB01.1C-SE-ENS-ENS-NNN-NNN-NN-S-NN-FW | Main (Front Left)

CDB01.1C-SE-ENS-ENS-NNN-NNN-NN-S-NN-FW

by Bosch Rexroth Indramat
$2,003.30 - $5,150.85
$5,150.85
$2,003.30 - $5,150.85
$5,150.85

Available, Shipping Varies

The Bosch Rexroth Indramat-produced CDB01.1C-SE-ENS-ENS-NNN-NNN-NN-S-NN-FW is a control section module, devoid of harmful substances like asbestos and mercury. Enclosed within the drive controller's power section, it features a circuit board with 9W power consumption at 24VDC, two terminal connectors rated 0V and 24V, a standard control panel, and Hiperface/1Vpp encoder with 6W power consumption, 11.6V voltage, and 500mA output current. In compliance with IEC 61131 standards, it accommodates analog inputs and digital outputs and includes an X2 connection point supporting RS232 serial interface connection. It promotes reduced input resistance through parallel mounting of analog input and digital inputs. Not usually sold separately, this section fits into the Option MC slot with a SERCOS interface that has distortion LED. Ideal for machine tools and mounting systems, it operates best in specific ambient conditions.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CDB01.1C-SE-ENS-ENS-NNN-NNN-NN-S-NN-FW

Harmful Materials

None

Connection Points type

Screw terminal blocks and spring terminals

Power Consumption

9W at 24VDC

Terminal Voltage Ratings

0V and 24V

Control Panel

Standard

Global Shipping

Yes

Digital Output Operation

Not near low-resistance sources

Control Panel Functionality

Setting analog outputs and drive address

Hiperface/1Vpp encoder Power Consumption

6W

Hiperface/1Vpp encoder Voltage

Typical 11.6V

Hiperface/1Vpp encoder Output Current

Max 500mA

Analog Inputs and Digital Outputs Standard

IEC 61131

SERCOS Interface

Fitted with a distortion LED

Parallel Mounting

Analog input and digital inputs

SERCOS Interface Mounting

Option MC slot

X2 connection point

Supports RS232 serial interface

Use Cases

Machine tools, mounting and handling systems

Ambient Conditions

Use in specified position only.
