CE03250

Original price $4,401.00 - Original price $4,401.00
Original price
$4,401.00
$4,401.00 - $4,401.00
Current price $4,401.00
In Stock, Shipping Varies
Request a quote

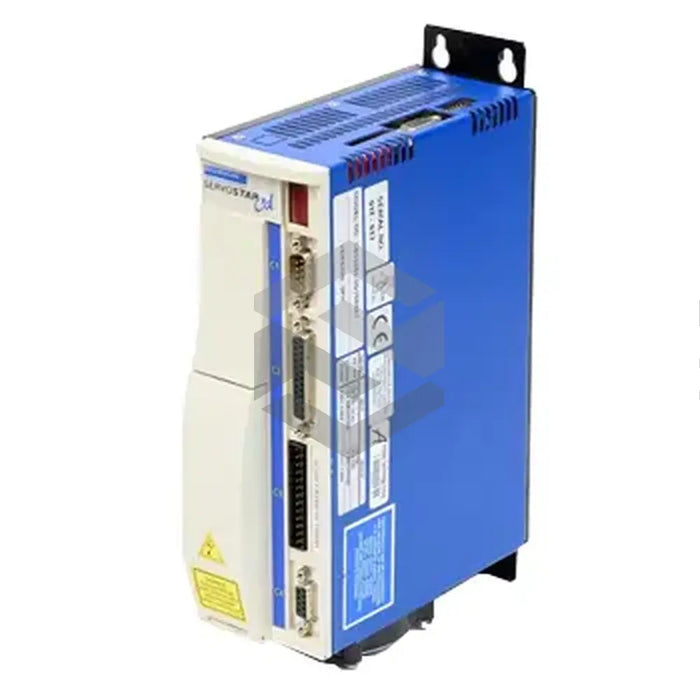

The CE03250 is an AC drive from Kollmorgen's Servostar CD Series 2, often used in electronic assembly and packaging. Weighing 3.51 pounds, it is designed for vertical mounting with minimal clearances of 2.5 inches on top and bottom, and 0.5 inches on both sides. Operating temperature lies between 5 to 45 degrees Celsius, with automatic shutoff at 80 degrees to prevent overheating. The internal heat dissipation is 60 Watts. Ideal operating conditions also include a relative humidity between 10 and 90%, and an altitude up to 1000 meters. The unit, which has a 0.5g vibration rating, measures 9.61 x 2.65 x 6.42 inches. It can operate with both single and three-phase AC input within the range of 110 to 230 Volts and offers a continuous rated output current of 3 Amps. The built-in incremental encoder offers feedback. The Windows-operated Motionlink software manages the configuration and programming of the CE03250 drive unit.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product Line: CD Series 2
  • Product Type: AC Drive
  • Typical Applications: Electronic Assembly, Packaging
  • Weight: 3.51 lbs
  • Mounting Style: Vertical
  • Top and Bottom Clearance: 2.5 inches
  • Left and Right Clearance: 0.5 inches
  • Ambient Temperature: 5 to 45 degrees Celsius
  • Overheat Shut Down: 80 degrees Celsius
  • Internal Heat Dissipation: 60 Watts
  • Relative Humidity: 10% - 90%
  • Installation Altitude: Below or Equal to 1000 meters
  • Vibration Rating: 0.5 g
  • Dimension: 9.61 x 2.65 x 6.42 inches
  • Input Voltage: 110 to 230 Volts AC
  • Current Output: 3 Amps
  • Encoder: Built-in incremental encoder
  • Logic Input: Standard 230 Volts
  • Configuration Tool: Motionlink software
  • Display: Seven-Segment Status Display
