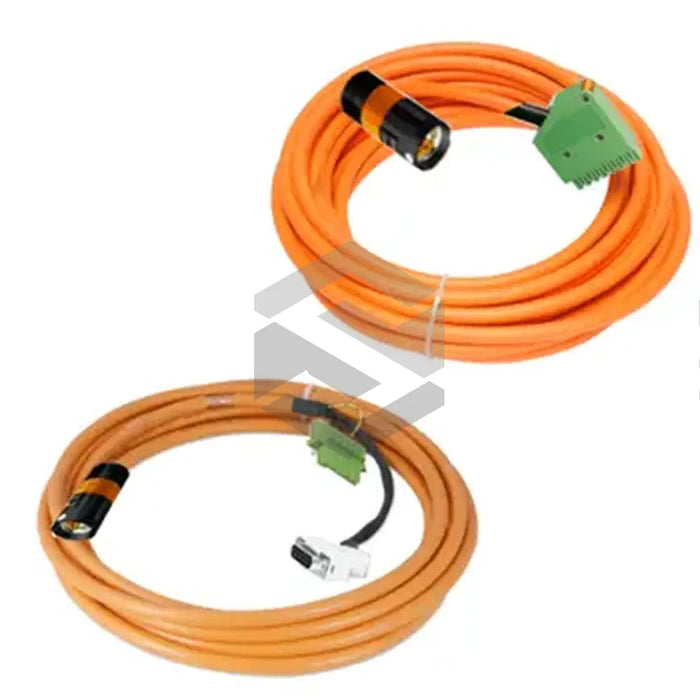

S image of CF-SS-CHGE-03

CF-SS-CHGE-03

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The CF-SS-CHGE-03 is a 3-meter long commutating encoder feedback cable produced by Kollmorgen, designed for use with the S300 series drives. These drives are adaptable and support both 230 and 460 Volt AC systems, with continuous current ratings between 1.5 to 10 Amps rms. Control methods include positional, simple registration, pulse follower, electronic gearing, velocity-analog, and torque-analog. Notable features constitute an integrated design, internal regeneration, and overall versatility. These drives are compatible with multiple network interfaces such as CANopen, EtherCAT, SERCOS, DeviceNet, and Profibus DP, and can be configured through a PC-linked Intuitive software via an RS-232 serial connection. The S300 drives come with CE, UL, and cUL certifications and include filters for CE cables less than 25 meters. CF-SS-CHGE-03 installation and S300 drive maintenance should solely be performed by trained personnel to prevent equipment damage and personal injury.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Name

CF-SS-CHGE-03

Manufacturer

Kollmorgen

Product Type

Feedback Cable

Cable Type

Commutating encoder feedback cable

Cable Length

3 meters

Connectors

Euro IP 65 connector to 15 pin sub-D connector

Drive Compatibility

S300 drive (X1)

Voltage Support

230 Volts AC and 460 Volts AC

Continuous Current

3 to 10 Amps rms (115/230 Volt AC) 1.5 to 6 Amps rms (230/400/460 Volts AC)

Control Modes

Positional, simple registration, pulse follower, electronic gearing, velocity-analog, torque-analog

S300 Drive Features

Integrated design, internal regeneration, flexibility

Network Interfaces

CANopen, EtherCAT, SERCOS, DeviceNet, Profibus DP

Feedback Options

Resolver, camcorder, sine-encoder

Configuration

Via RS-232 serial connection

Certifications

CE, UL and cUL

Included Filters

For CE cables less than 25 meters

DC Bus Feature

Can be connected in parallel for regenerative advantages

Analog I/O

2 inputs via X3 screw-terminal

Digital I/O

4 inputs (PLC compatible) and 2 outputs (open collector)

Installation and Maintenance

By trained personnel only
