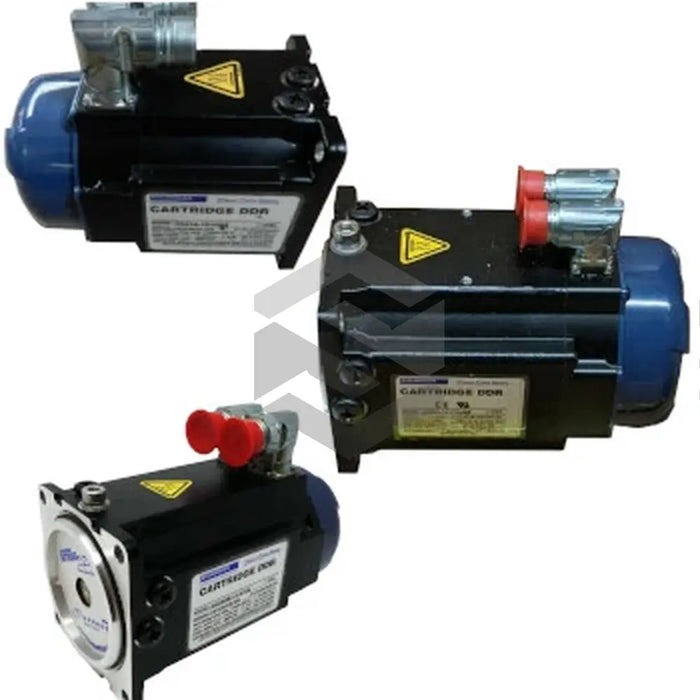

CH061A-13-3305
by Kollmorgen
The Kollmorgen CH061A-13-3305 is a Direct Drive Servo Motor produced under their DDR Series. This compact cartridge motor is crafted to deliver high performance in a small space and can be mounted and operated much like a standard full-frame motor. Despite its smaller size, it generates approximately 50% more power than similar-sized servo motors. The motor is virtually maintenance-free with no need for bearing replacement and is powered by a high-resolution integrated sine encoder. It's compatible with 400V/480V systems, works seamlessly with the AKD Servo Drive model AKD-x00607 by Kollmorgen, and it can deliver a maximum speed of 1600 RPM in 400V systems and 1900 RPM in 480V systems. Housed in a sealed 7.40-inch square casing, the CH061A-13-3305 comes with a solid shaft for slope-ring coupling, but without an extension. It is versatile in its mounting options and can be simply installed with no alignment or other mechanical adjustments necessary.
