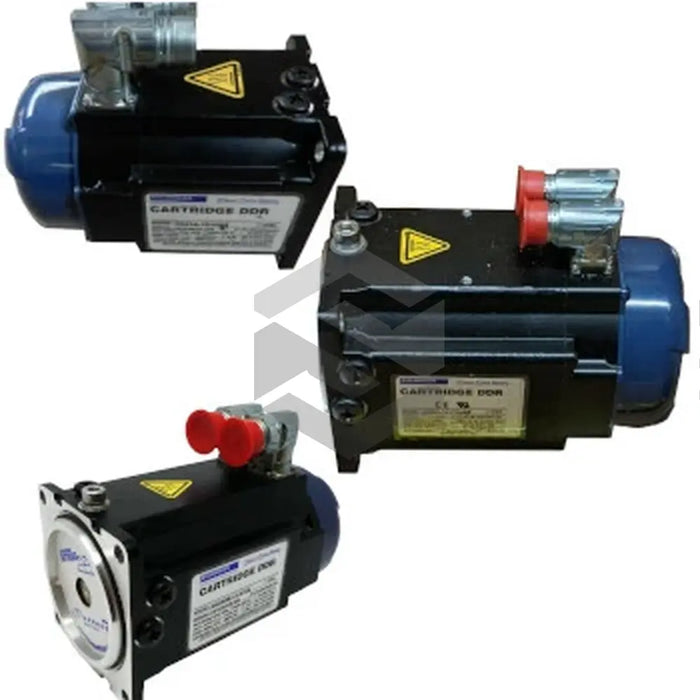

CH062C-13-3305
by Kollmorgen
The CH062C-13-3305, manufactured by Kollmorgen, is a frameless servo motor that belongs to the Cartridge DDR Motors product line. This drive type motor is directly attachable to the host machine, eliminating the need for intermediate gears, belts and other components. Equipped with an integrated, high-resolution sine encoder, this model is perfect for motion applications requiring precise control. Functioning in the 400/480 Volt range, it can attain maximum speeds of 1250 to 1550 RPM respectively. Typically used with KOLLMORGEN’s AKD-x0060X SERVO-DRIVE, it permits seamless integration of the motion system within an existing PLC or DCS setup. The CH062C-13-3305 motor runs at a consistent current of 11.8 amperes, producing a torque of 48.4 N-m, with a peak torque of 117 N-m at around 30 amperes. The motor is mid-stack with standard winding, supports multiple mounting configurations through its 90-degree rotatable power connector and uses a solid metal shaft for coupling with the host machine.
