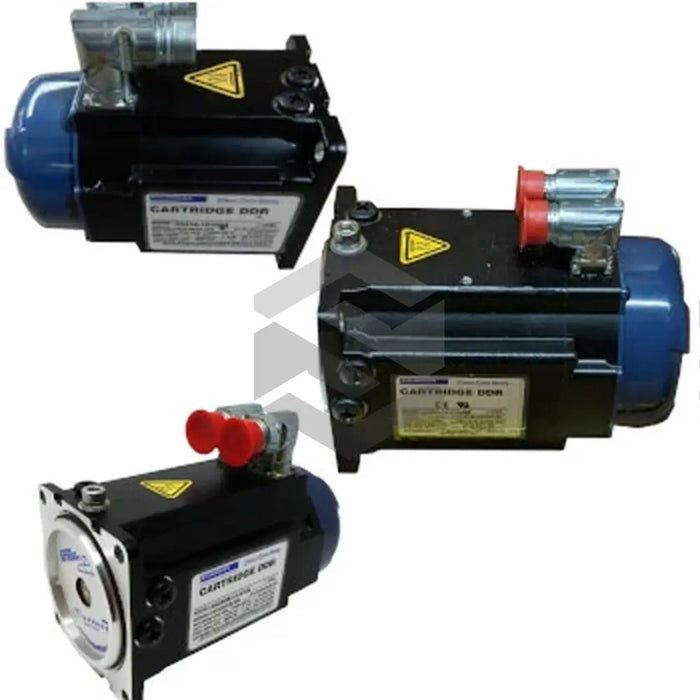

series image of CH091A-11-2105S

CH091A-11-2105S

by Kollmorgen
$0
$2,921.13 - $2,921.13
$2,921.13
$2,921.13 - $2,921.13
$2,921.13
Available, Shipping Varies
The CH091A-11-2105S is a frameless motor manufactured by Kollmorgen, belonging to the CARTRIDGE DDR MOTORS family. Specifically crafted as a direct drive, it operates to a maximum of 480 Volts, delivering a maximum torque rating of 50.2 N-m in continuous mode at a steady line current of 12.8 amperes. The motor offers a maximum rotational speed of 1500 rpm at 480 Volts and 1200 RPM at 400V. This model is compact and gearless, its rotor being the only mobile component housed in a 9.68” frame. The motor comes with a sine encoder and a short stack format suitable for limited space applications. It's standard flanged mounting face enables easy installation with 4 bolts. Provided with a solid shaft and a keyed compression coupling for interface, the coupling can be accessed and tightened using a torque wrench. The unit offers enhanced position detection, transmitting speed and position information via an exclusive encoder.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Family: CARTRIDGE DDR MOTORS
  • Maximum Voltage: 480 Volts
  • Design: Frameless Motor/Direct Drive
  • Maximum Torque: 50.2 N-m
  • Continuous Line Current: 12.8 amperes
  • Maximum Speed: 1500 rpm
  • Speed at 400V: 1200 RPM
  • Rotor Size: 9.68” frame
  • Stack Length: Short
  • Encoder: Built-in sine encoder
  • Mounting: Standard flanged face, 4 mounting bolts
  • Shaft: Solid
  • Interfacing: Keyed compression coupling
