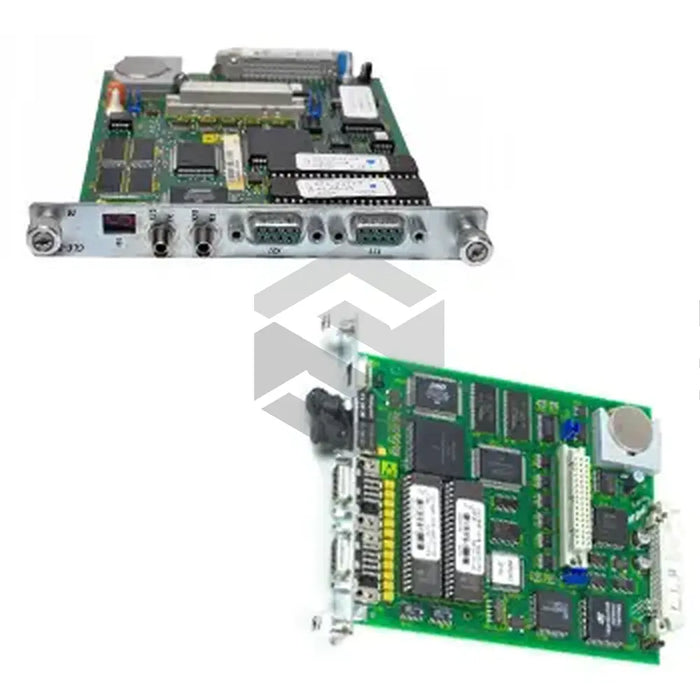

series image of CLC-D02.2M-FW

CLC-D02.2M-FW

by Bosch Rexroth Indramat
Request a quote
The CLC-D02.2M-FW, produced by Bosch Rexroth Indramat, is a top-tier product in the field of Multi-Axis Coordinated Motion Control. As part of the CLC range, it supports up to three axes of coordinated motion, with ability to handle four jobs simultaneously, equating to control of up to 40 axes for both coordinated and non-coordinated regulation. Crucially, the system is DDS-installable with a CPU clock frequency of 25.0 MHz and possesses a generous 512kB of battery-packed SRAM, supplemented by a maximum capacity of 1MB. The controller functions through serial communication protocols with two configurable ports. For enhanced user experience, Visual Motion, a multi-tasking graphical user interface, is included. The LED display provides straightforward troubleshooting with pre-defined signaling for each possible error or operating status. The installation of the CLC-D02.2M-FW promises improved industrial productivity and optimization.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: CLC
  • Product Model: CLC-D02.2M-FW
  • Type: Multi-Axis Coordinated Motion Control
  • Support: Supports 4 jobs, up to 40 axes at a time
  • Memory: 512 kB battery-packed SRAM
  • Maximum Capacity: 1MB
  • CPU Clock Frequency: 25.0 MHz
  • Communication: Serial communication, 2 ports, Port A supports ASCII Host Protocol, Port B user configurable
  • Software: Visual Motion user interface
  • Indicator: Seven segment single digit LED display for troubleshooting
  • Error Diagnosis: Pre-defined signal for each error and operating status
