CLM 01.3-M-E-2-0

Request a quote

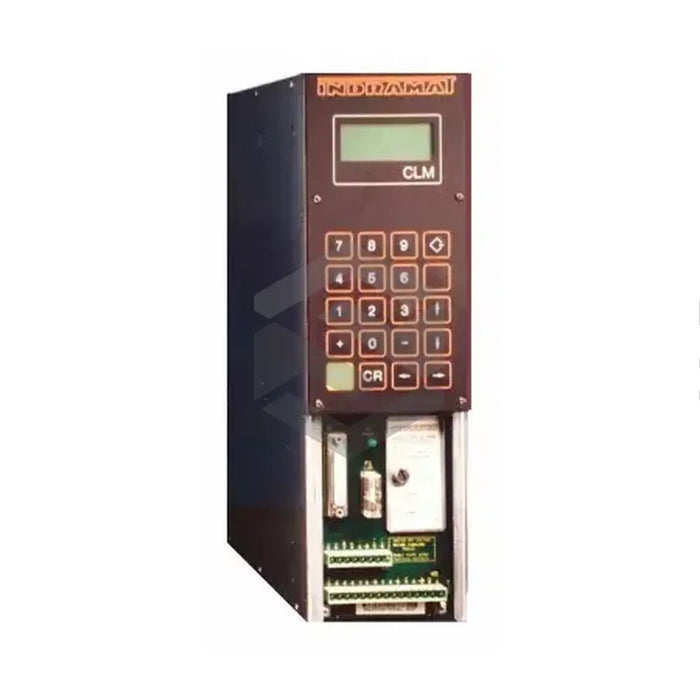

The Bosch Rexroth Indramat's CLM 01.3-M-E-2-0 is a microprocessor-based positioning control designed for precision motion applications, like cross-cut sawing and pipe cutting. The compact device boasts of an intuitive design with 16 system and auxiliary inputs and outputs, two encoder ports, and a serial communication port. Integral to its design are two-axis operation support with an expansion I/O board. Its operational status is displayed in either English, German, or French as per user preference. For direct installation, the unit can be side-mounted to a panel of an electrical enclosure alongside a TVM series servo power supply and a TDM servo amplifier. The keypad facilitates parameter and program data entry, cursor movement, and clearing of fault/error messages. Additional features include an RS-232/422/485 port, a 1.6A F1 fuse for surge protection, and an intermediate stop input for auto mode operation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product ID: CLM 01.3-M-E-2-0
  • Function: Microprocessor-based positioning control
  • Application: Precision motion control
  • Closed-loop synchronization: Yes
  • Suitable for: Cross-cut sawing and pipe cutting
  • System inputs and outputs: 16
  • Auxiliary inputs and outputs: 16
  • Communication ports: Serial communication port, two encoder ports
  • Multi-language display: English, German, French
  • Modular design: Yes
  • Two-axis operation: Supported with expansion I/O board
  • Mounting: Panel mount, side-by-side with TVM series servo power supply and TDM servo amplifier
  • Dimensions: 390 x 105 x 325 mm (H x W x D)
  • Weight: 6kg
  • Keypad features: Entering parameter and program data, cursor movement, clearing fault/error messages, data entry
  • Parameter mode: Entering, editing, and viewing of data
  • Communications port: RS-232/422/485 at X6 connector
  • Fuse protection: 1.6A F1 fuse
  • Power supply: 24V at X5 connector
  • Intermediate stop input: Available for Automatic mode
  • Auxiliary outputs: Turn OFF when error occurs.
