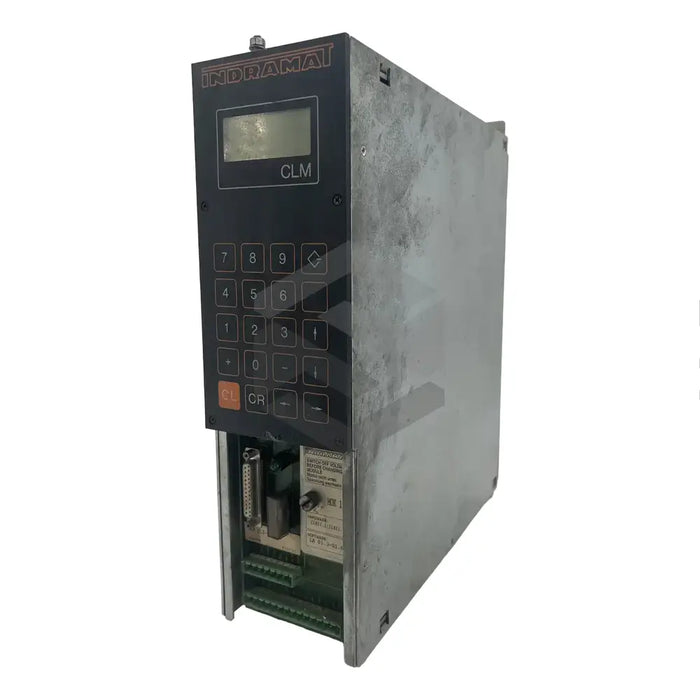

C image of CLM 01.3-X-0-2-0 | Main (Front Left)

CLM 01.3-X-0-2-0

by Bosch Rexroth Indramat
$3,322.35 - $3,322.35
$3,322.35
$3,322.35 - $3,322.35
$3,322.35

Available, Shipping Varies

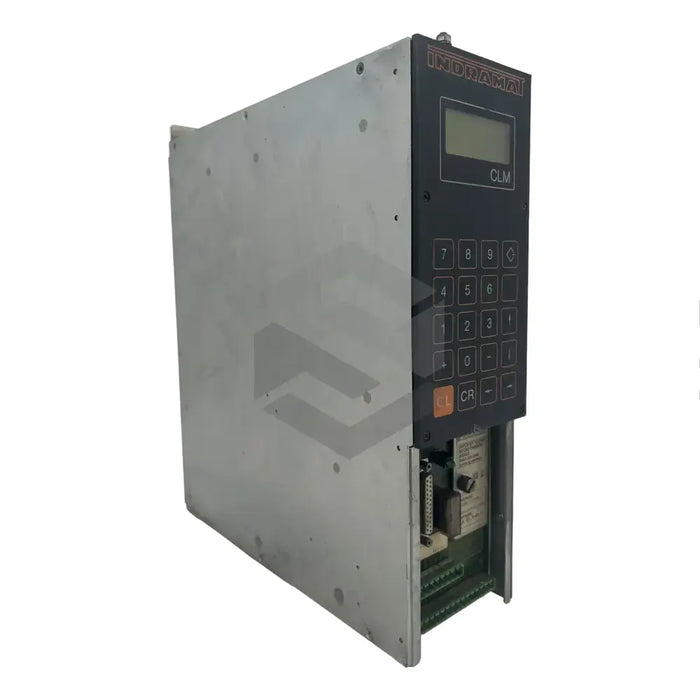

The Bosch Rexroth Indramat CLM 01.3-X-0-2-0 is a positioning control device designed to operate as a maintenance-free feed-to-length positioning system. It includes a detachable firmware/program module situated under the keypad on the right and runs on battery power, with operations managed by a microprocessor. The device offers precision control through its closed-loop feedback system and provides two software modules for conducting intermittent incremental movements. The CLM 01.3-X-0-2-0 boasts self-diagnostics and a modular design that allows it to fit into any electrical enclosure. The device comes standard with 32 inputs and 32 outputs and includes a 32-bit microprocessor, 128K RAM, and 256K EPROM. It uses convection cooling and can be stored and transported at temperatures ranging from -30°C to 85°C. The control device operates in several modes such as Parameter, Manual, Automatic, or Setup mode, and includes a multi-format port for two-way communication.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CLM 01.3-X-0-2-0

Product Type

Feed-to-length positioning control

Firmware

Detachable Firmware/Program module

Battery

Used for operation

Microprocessor

Used for execution

Servo System

Maintenance-Free AC Servo System

Feedback System

Closed-loop feedback system

Software Variants

2

Self-Diagnosis

Does have self-diagnosis capability

Structural feature

Modular structure

Predefined Inputs

32

Predefined Outputs

32

Microprocessor Bits

32

RAM

128K

EPROM

256K

Cooling Mode

Convection

Storage and Transportation Temperature

-30°C to 85°C

Keypad

20 pressure-sensitive membrane style keys

Display

Liquid crystal display

Auxiliary Drive Connector

X7

Operation Modes

Parameter, Manual, Automatic, Setup

Multi-format port

Available

Position correction methods

3 using measuring wheel

Parameter Verification

Each time power is turned ON
