CLM01.2-X

Original price $8,134.00 - Original price $8,134.00
Original price
$8,134.00
$8,134.00 - $8,134.00
Current price $8,134.00
Available, Shipping Varies
Request a quote

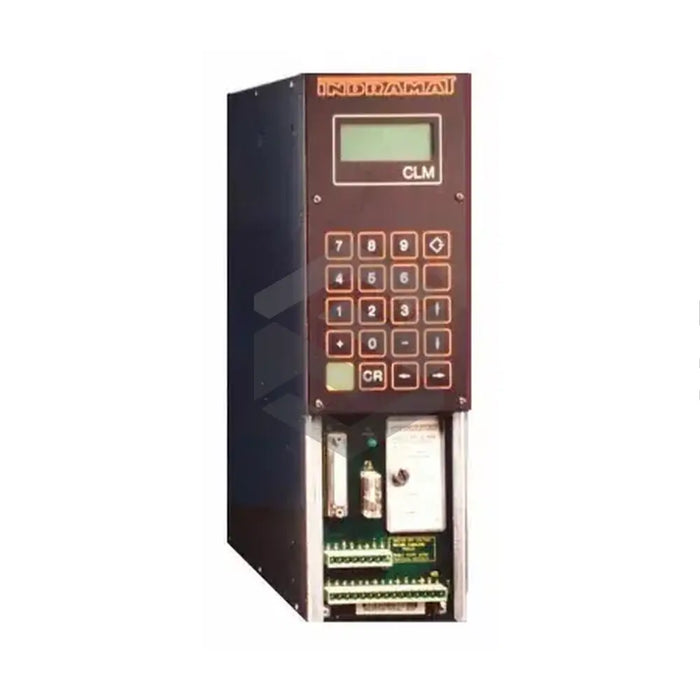

The Bosch Rexroth Indramat CLM01.2-X is an AK11 memory module version of a four-axis positioning controller. Noted for its exceptional performance and reliability, it measures 390mm in height, 105mm in width, and 325mm in depth, weighing approximately 6 kg. Operating optimally in temperatures between 5˚ C to 45˚ C, it is equipped to function at a maximum altitude of 1000 meters. Significantly, it features a keypad/display panel that includes 20 pressure-sensitive membrane type keys and an LCD capable of displaying up to 16 alphanumeric characters. Key safety features include an emergency stop function, motor over-temperature indication, a fault indicator, and diagnostic monitoring. Ensuring ease of installation and functional design, the CLM01.2-X can be conveniently mounted side by side with the servo amplifiers and the servo power supply within a control cabinet.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: CLM
  • Product Model: CLM01.2-X
  • Memory Module Version: AK11
  • Manufacturer Assigned Firmware: Yes
  • Height: 390 mm
  • Width: 105 mm
  • Depth: 325 mm
  • Weight: 6 kg
  • Axes: 4
  • Ambient Temperature Range: 5˚  C to 45 ˚  C
  • Maximum Operating Altitude: 1000 meters
  • Keypad/Display Panel: Yes
  • Keypad Type: Pressure-sensitive Membrane
  • LCD Display: 16 Character Alphanumeric
  • Keypad Functionality: Cursor Movement, Data Entry, Fault Clearing, Error Messaging, Program/Parameter Data Entry
  • Max Distance Between Keypad/Display and CLM Module: 30 meters
  • Safety Feature: Emergency Stop Button: Yes
  • Safety Feature: Motor Over-Temperature Indication: Yes
  • Safety Feature: Dedicated Fault Indicator: Yes
  • Safety Feature: Diagnostic Monitoring: Yes
  • Mounting Style: Control Cabinet Panel
  • Mounting Requirement: Two Screws
  • Mounting Compatibility: Servo Amplifiers and Servo Power Supply.
