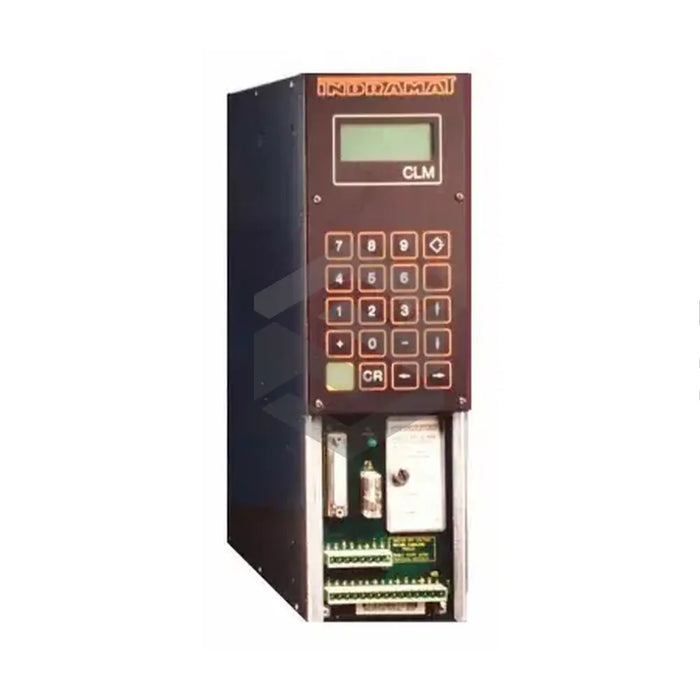

S image of CLM01.3-A-E-2-B

CLM01.3-A-E-2-B

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The CLM01.3-A-E-2-B is a microprocessor-based positioning control by Bosch Rexroth Indramat, designed for controlling AC servo systems like ball screws. Constructed with a modular design, this unit from CLM series features a crisp, four-line display, and comprises of 19 predefined outputs and 24 inputs, expandable as per requirement. The device can be easily interfaced with any AC servo controller or amplifier from the company's MAC series AC servomotor. The unit comes bundled with LA01.3-02.x software, providing high precision motion control. Equipped to address potential issues through its fault indicator, it is engineered for swift and hassle-free troubleshooting. Weighing 6kg and measuring 15.35 x 4.13 x 12.80 inches, the device can be firmly secured inside a cabinet with just two screws. It supports an expansion I/O board and can operate efficiently between a temperature range of 5°C and 45°C. The control panel features a detachable LCD display and a 20-key pressure-sensitive membrane keypad for easy data input and editing.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CLM01.3-A-E-2-B

Product Type

Positioning Control

Design

Modular

Use

Control AC Servo Systems

Display

Four-Line Display

Standard Outputs

19

Standard Inputs

24

Connection

AC servo controller or amplifier

Software Compatibility

LA01.3-02.x software

Motion Control

High Precision

Panel mounting

Yes (two screws)

Axis

Two

Expansion I/O board

Supported

Protection Rating

IP 10

Feed Length Resolution

0.001 inches

Input Current Draw

10mA at 24VDC

Operating Temperature

5°C to 45°C

Keypad

Liquid Crystal display with 20 pressure-sensitive Membrane keys

Parameter Mode

Supports entering, editing and viewing of data

Dimensions

15.35 x 4.13 x 12.80 inches

Weight

6kg.
