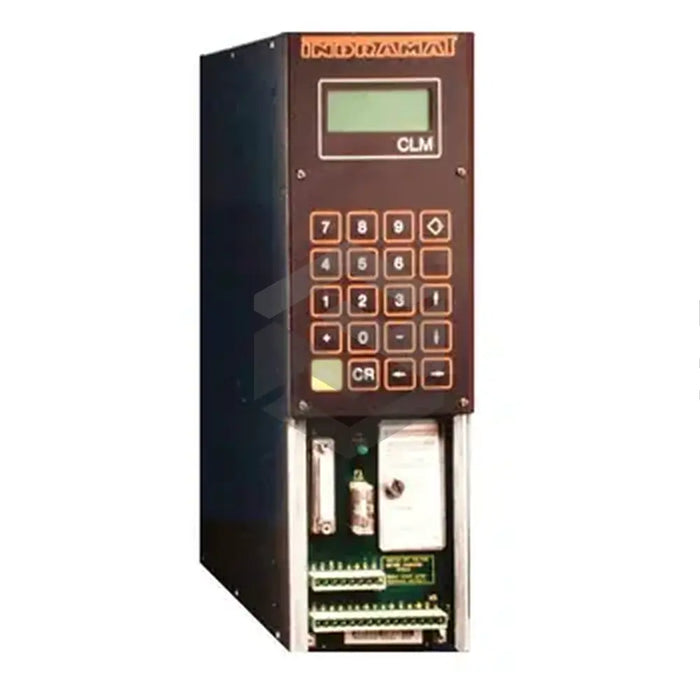

P image of CLM01.3-X-0-1-0-FW

CLM01.3-X-0-1-0-FW

by Bosch Rexroth Indramat
$4,979.19 - $4,979.19
$4,979.19
$4,979.19 - $4,979.19
$4,979.19

In Stock, Ships Fast

Product CLM01.3-X-0-1-0-FW from the Rexroth Indramat CLM series is an advanced axis positioning control unit. This line-1, design type-3 product, equipped with factory-set firmware, scrutinizes and matches servo drive motion profiles against real responses to detect abnormalities such as position delay or drive escape. Designed for single-axis use with type M software, the device features a standard, non-backlit display, mountable up to 2 meters away from the CLM. The unit is designed to be installed in a cabinet, with a display panel affixed on the cabinet's surface. The product operates in a temperature range of 41-113 degrees F (around 5-45 degrees C) and withstands -22 to 185 degrees F during transit and storage. Designed for operation up to 3,280 ft above sea level, the CLM01.3-X-0-1-0-FW features a 20-button, function-specific keypad and a 4-line display with 16 character spaces per line. The self-diagnosing device monitors operator errors, machine faults, etc. and displays status and fault messages in the chosen language. It offers 24 auxiliary inputs and 19 auxiliary outputs, albeit without options for hardware expansion.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Line

CLM series

Manufacturer

Rexroth Indramat

Product Model

CLM01.3-X-0-1-0-FW

Design

Line-1, Type-3

Firmware

Factory-assigned

Functions

Motion profile prediction, irregularity detection

Axis

1

Software compatibility

Type M

Display Design

Standard, no backlight

Mounting Distance

Up to 2 meters from CLM

Installation

Cabinet mountable

Ambient Temperature range

41 to 113 degrees F

Transportation and Storage Temperature range

-22 to 185 degrees F

Operating Altitude

Up to 1000 meters

Keypad

20-button

Display

4-line and 16-character spaces per line

Hardware Expansion

Not Available

Diagnostic Capabilities

Self-diagnostic, detects operator errors, control errors, machine faults and normal operating status

Auxiliary Outputs

19

Auxiliary Inputs

24
