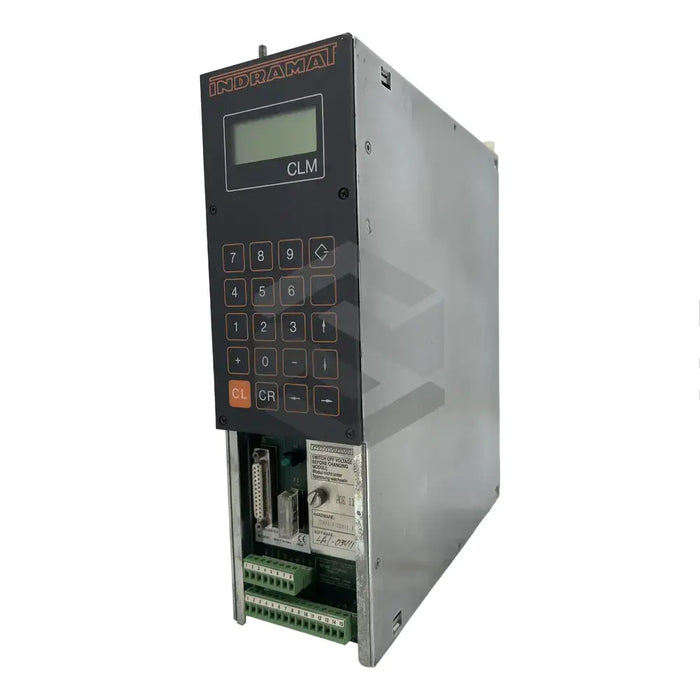

product Main (Front Left) image of CLM01.3-X-0-2-0-FW

CLM01.3-X-0-2-0-FW

by Bosch Rexroth Indramat
$3,324.94 - $3,324.94
$3,324.94
$3,324.94 - $3,324.94
$3,324.94
Available, Shipping Varies

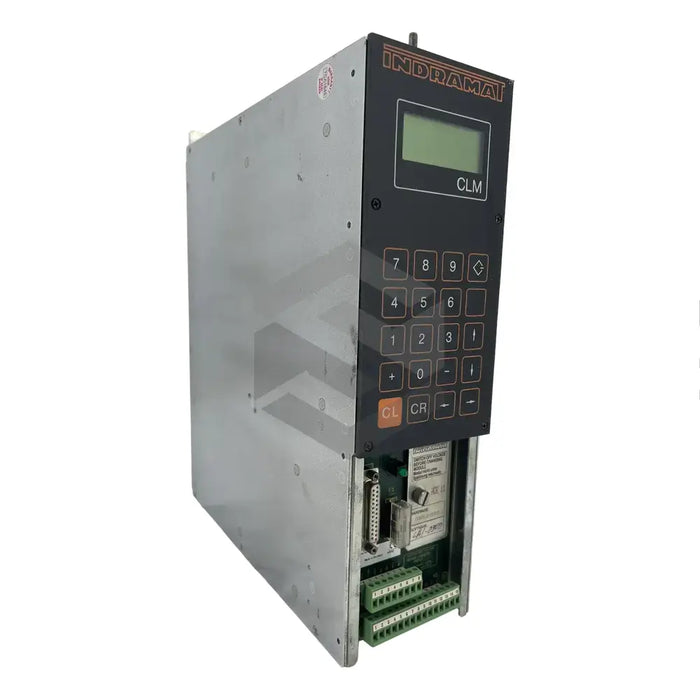

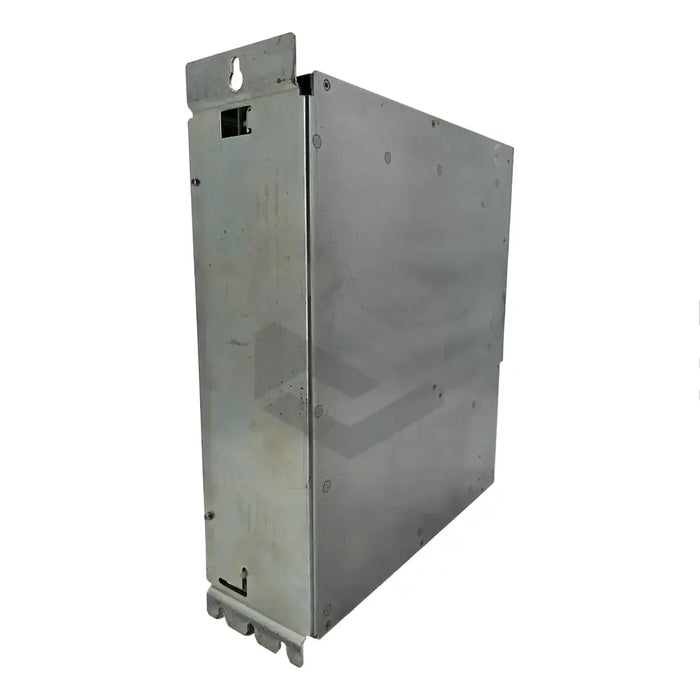

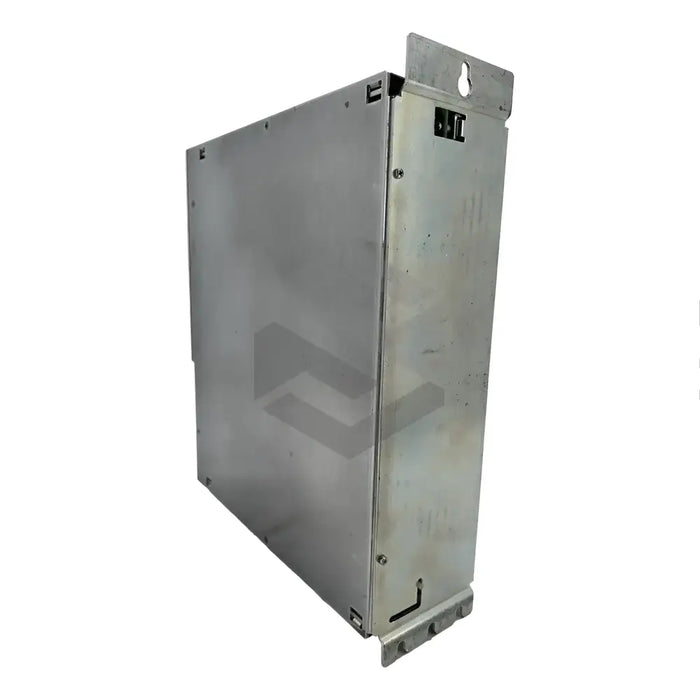

The CLM01.3-X-0-2-0-FW by Rexroth Indramat is a proficient control unit designed for precise management of servo systems in various industrial applications. Renowned for its durability, it utilizes specific sensors and actuators for self-diagnosis, alerting operators via its LCD screen about any potential malfunctions. Excelling in multi-axis position control, this controller is invaluable for machinery such as roll feeds, packaging machines, and linear gantry robots. The unit is designed to be compact with dimensions of 390 mm in height, 105 mm in width, and a depth of 325 mm. Weighing around 6 kg, it can manage up to four axis controls. It operates with a resolution of 0.0254 mm, ensuring precise tracking of the servo motor. Conforming to the IP10 protection category, the unit offers basic intrusion protection, and works most efficiently between 5 to 45 degrees Celsius, and up to heights of 1000 meters above sea level.
30 Day Warranty
Technical Specifications
  • Product Type: CLM01.3-X-0-2-0-FW Control Unit
  • Manufacturer: Rexroth Indramat
  • Function: Servo Systems Control
  • Error Handling: LCD Error Messages Display
  • Applications: Roll feeds, handling equipment, linear robots, packaging machines
  • Dimensions (HxWxD): 390x105x325 mm
  • Weight: 6 kg
  • Control: Up to four-axis control
  • Feed Length Resolution: 0.0254 mm
  • Protection Category: IP10
  • Optimal Ambient Temperature: 5-45 degree Celsius
  • Operating Height: Up to 1000 meters above sea level
