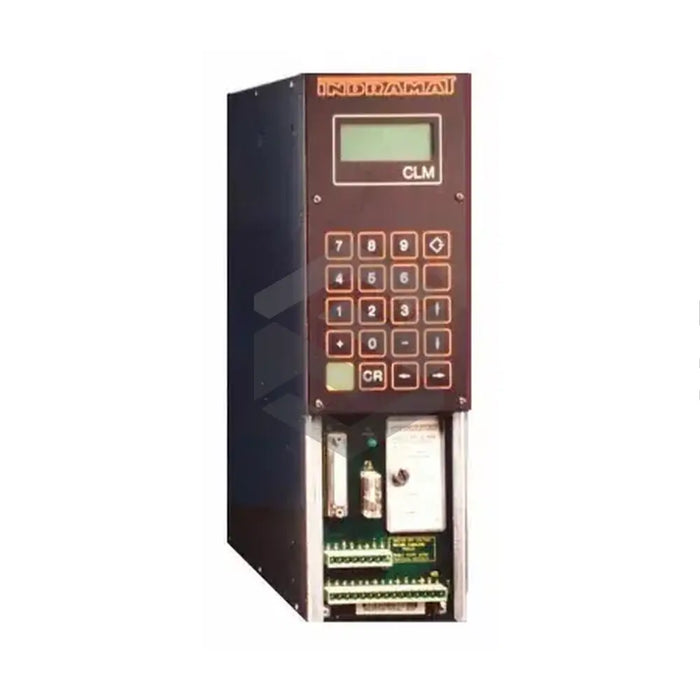

S image of CLM01.4-N-N-4-B-FW

CLM01.4-N-N-4-B-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The product at hand is the Bosch Rexroth Indramat's CLM01.4-N-N-4-B-FW, a modular control part of the CLM1.4 series suitable for use with Bosch Rexroth AC servo drives. This control measures 373 x 105 x 325 mm and features an illuminated LCD display on its front panel, situated above a 20-button keypad. Although not including additional interface or expansion, it does support 4-axis control and has operating modes of parameter input, manual, and automatic. Its program data allows for 1000 instructions, 3 NC tasks, and numerous subprograms. Parallel interfaces contain 16 permanent inputs and outputs. It provides ±10V analog input and output interfaces and comes with RS-232 / RS-485 serial interface for smooth communication with a programming PC or operator panels. This product has a 24V input rating with a minimum current requirement of 450mA, depending on the type of encoder and accessories installed. Installation and maintenance should be conducted only by trained personnel using Bosch recommended accessories.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CLM01.4-N-N-4-B-FW

Product Type

Modular control

Product Line

CLM1.4

Compatible With

Bosch Rexroth AC Servo Drives

Dimensions

373 x 105 x 325 millimeters

Display

LCD with Background Illumination

KeyPad

20-Button Data Entry and Display Setup

Firmware

Ordered Separately

Interface or Expansion

None

Axis Control

4-axis

Operating Modes

Parameter Input, Manual, Automatic

Program Data

1000 instructions, 3 NC tasks, Any number of subprograms

Parallel Interfaces

16 Permanent Inputs, 16 Permanent Outputs

Control Interfaces

±10 Volt Analog Inputs with 12-bit resolution, Two ±10 Volt Analog Outputs with 14-bit resolution

Communication Interface

RS-232 / RS-485 compatible serial interface - selectable baud rate and transmission format

Input Rating

24 Volts

Current Requirements

Minimum 450 milliamps, varies depending on encoder and accessories

Installation and Maintenance

Trained and experienced personnel required

Recommended Accessories

Only those recommended by Bosch.
