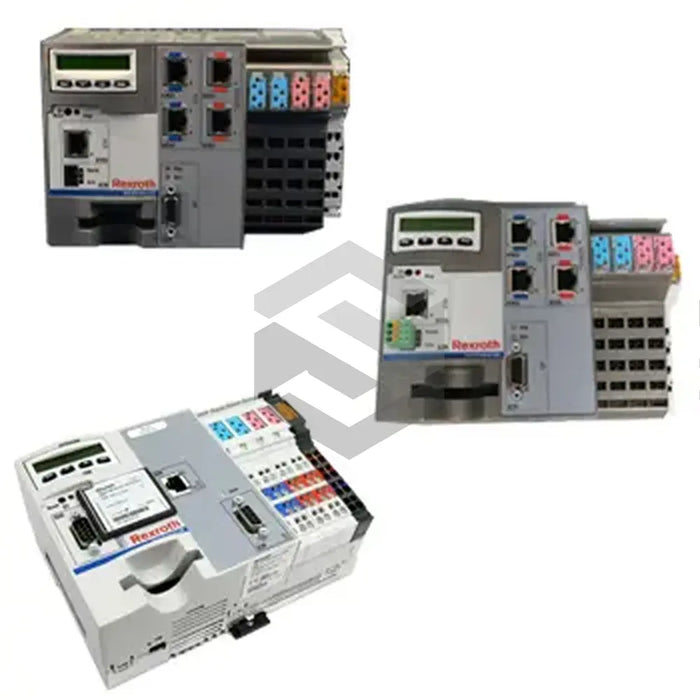

S image of CML40.2-NP-220-NA-NNNN-NW

CML40.2-NP-220-NA-NNNN-NW

by Bosch Rexroth Indramat
$1,245.17 - $1,245.17
$1,245.17
$1,245.17 - $1,245.17
$1,245.17

In Stock, Ships Fast

The CML40.2-NP-220-NA-NNNN-NW, produced by Bosch Rexroth Indramat, is a control unit designed for specific combinations of components typically found in machine tools, and handling and assembly systems. This unit operates on a 24 VDC supply voltage, tolerating a -15%/+20% fluctuation and featuring a residual ripple of +/-5%. With both inline and Ethernet interfaces, as well as a serial RS 232 interface, the device boasts a power consumption of 9W in basic states without the connected I/Os and additional modules. This control unit enters a Standby mode when its internal temperature reaches 75°C to prevent overheating damage. The product is CSA, UL Listed, and CE certified, and houses an IP 54 protection class-certified housing. To maximize potential, the unit interfaces with a flash card for program storage, operates in a humidity level between 5% to 95%, and necessitates a contaminant-free environment.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CML40.2-NP-220-NA-NNNN-NW

Use Environment

Residential Areas (may cause interference)

Operating Conditions

Not under water or extreme temperature fluctuations

Interfaces

Inline, Ethernet connection, Serial RS 232

Power Supply

24 VDC with -15%/+20% tolerance and +/-5% residual ripple

Condensation

Must be condensation free

Operational Industries

Machine tools and handling and assembly systems

Equipments

Single-pin ready contact, 8 digital inputs and outputs with electrical isolation

Power Consumption

9 W without the connected I/Os and additional modules

Overheating

Prone to destruction due to overheating. Goes into Standby mode at internal temperature of 75 °C

Certifications

CSA Certified, UL Listed, CE Certified

Front Panel Design

Four keys and a 5 x 10 dot matrix eight-digit display

Reset

Requires a tool to actuate

Storage

Interface for flash card

Operating Humidity

5% to 95% as per DIN EN 61131-2

Environmental Protection

Free of acids, alkaline solutions, salts, metal vapors, and electrically conductive contaminants

Protection Class

Minimum IP 54 as per DIN VDE 0470-1.
