CML45.1-3P-504-NA-NNNN-NW

Original price $4,643.63 - Original price $4,643.63
Original price
$4,643.63
$4,643.63 - $4,643.63
Current price $4,643.63
In Stock, Ships 3 - 5 Days
Request a quote

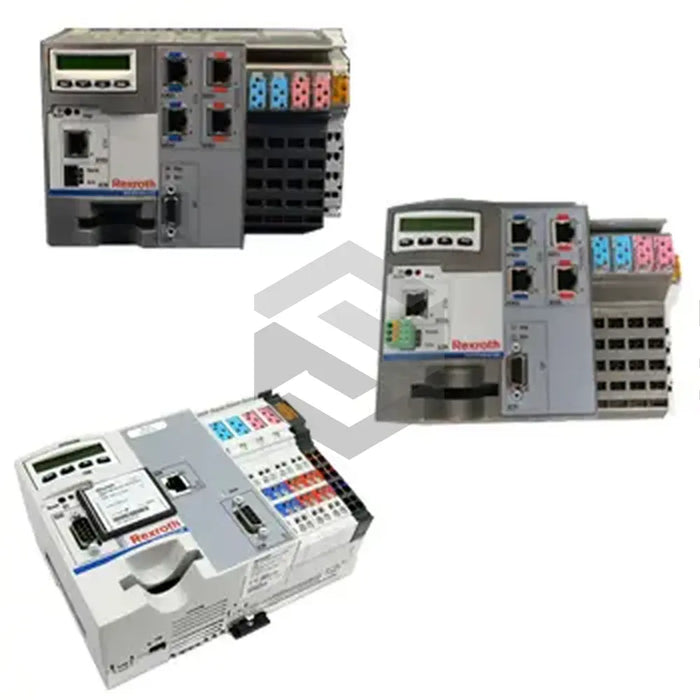

The Bosch Rexroth Indramat CML45.1-3P-504-NA-NNNN-NW, from the IndraControl L45 product line, is a versatile, scalable, and modular control for various machinery such as machine tools, printing, and food processing systems. This control utilizes a standard I/O system with an embedded PC architecture. It features an AMD LX800 processor clocking at 500 MHz, complemented by 256 MB of DRAM and 8 MB of battery-backed SRAM. The system does not include non-volatile memory. The controller has various integrated communication interfaces- a 10/100 Mbps Ethernet, a SERCOC, and a ProfiBus interface. The CML45.1-3P-504-NA-NNNN-NW, weighing approximately 1.8 kg, has an IP20-rated casing and is powered by a 24 Volts DC supply. It operates optimally between temperatures of 5-55 degrees Celsius and automatically powers-off at an internal temperature of 80 degrees Celsius. Note that firmware must be ordered separately.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: IndraControl L45
  • Use Case: PLC and motion-logic applications
  • Processor: AMD LX800 at 500 MHz clock speed
  • DRAM: 256 MB
  • Battery-backed SRAM: 8 MB
  • Non-volatile memory: Not available
  • Integrated Interfaces: 10 / 100 Mbps Ethernet, SERCOC, ProfiBus
  • Interface to Function Modules: Bosch Rexroth PC104
  • Interface to I/O terminals: Rexroth line interface
  • Firmware: Needs to be ordered separately
  • Digital I/O: 8 input and 8 outputs
  • Weight: Approximately 1.8 kilograms
  • Environmental Protection Rating: IP20
  • Power Supply: 24 Volts DC ±5% residual ripple
  • Power Supply Voltage: 19.2 Volts DC to 30 volts DC
  • Input Voltage Tolerance: -15% to 20%
  • Operational Ambient Temperature: 5 to 55 degrees Celsius
  • Storage Ambient Temperature: -25 to 70 degrees Celsius
  • Internal Switch-off Temperature: 80 degrees Celsius
  • Cooling System: No fan included.
