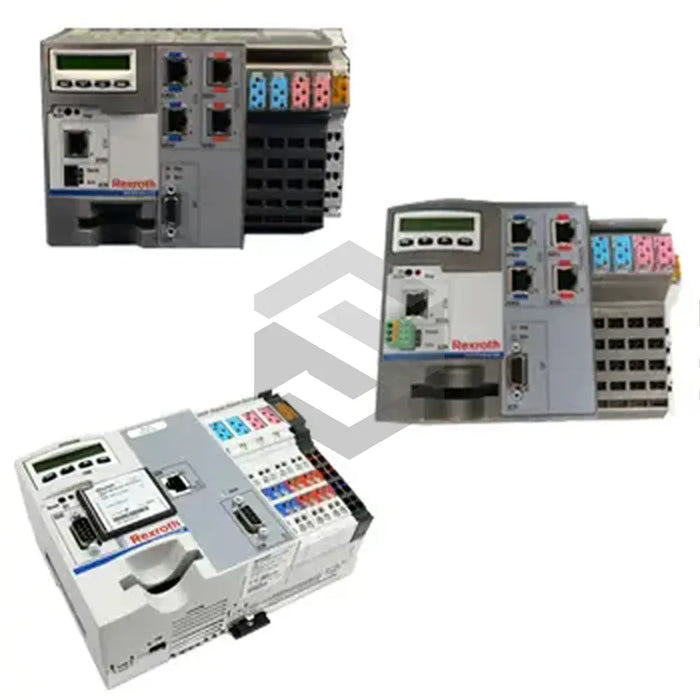

manufacturer image of CML45.1-NP-500-NA-NNNN-NW

CML45.1-NP-500-NA-NNNN-NW

by Bosch Rexroth Indramat
$2,258.90 - $2,258.90
$2,258.90
$2,258.90 - $2,258.90
$2,258.90
Available, Shipping Varies
The CML45.1-NP-500-NA-NNNN-NW, is an industrial control system developed by Bosch Rexroth Indramat. This piece of technology falls under the IndraControl L45 series, which are specifically designed to perform in environments like handling, assembly, packaging, and printing systems. The control system operates on an AMD LX 800 microprocessor running at 500 MHz, backed by 256 MB DRAM. For communication, the system has an integrated ProfiBus master-slave interface and an Ethernet interface with an RJ 45 jack. Moreover, the unit displays an eight-character display on its left along with four operating keys, an LED, a rest button, an Ethernet interface, and a slot for a Compact Flash card. The system is designed with an IP20 rating to withstand mild, dust-like particles. When installing, an appropriate clearance of at least 100 mm above and below, and at least 30 mm on each side, should be provided to maintain the proper air circulation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: CML45.1-NP-500-NA-NNNN-NW
  • Product Type: Industrial Control System
  • Series: IndraControl L45
  • Microprocessor: AMD LX 800
  • Clock Speed: 500 MHz
  • DRAM: 256 MB
  • NVRAM: Not Available
  • SRAM: Not Available
  • Firmware: Not Preloaded
  • Communication Interface: ProfiBus Master-Slave, Ethernet Interface with RJ 45 jack
  • Optional Interfaces: SERCOS, Additional Ethernet interfaces
  • Digital Inputs: 8
  • Digital Outputs: 8
  • Display: 8-Character Display
  • Operating Keys: 4
  • LED: 1
  • Rest Button: 1
  • Ethernet Interface: 1
  • Compact Flash Card Slot: 1
  • Housing Design: Inline
  • IP Protection Rating: IP20
  • Dimensions(HxLxW): 107.5 mm x 175.9 mm x 120 mm
  • Cooling Fan: Not Included
  • Installation requirements: Avoid Direct Sunlight, Provide 100 mm air flow gap above and below, 30 mm on sides and front.
