CP2218-0010

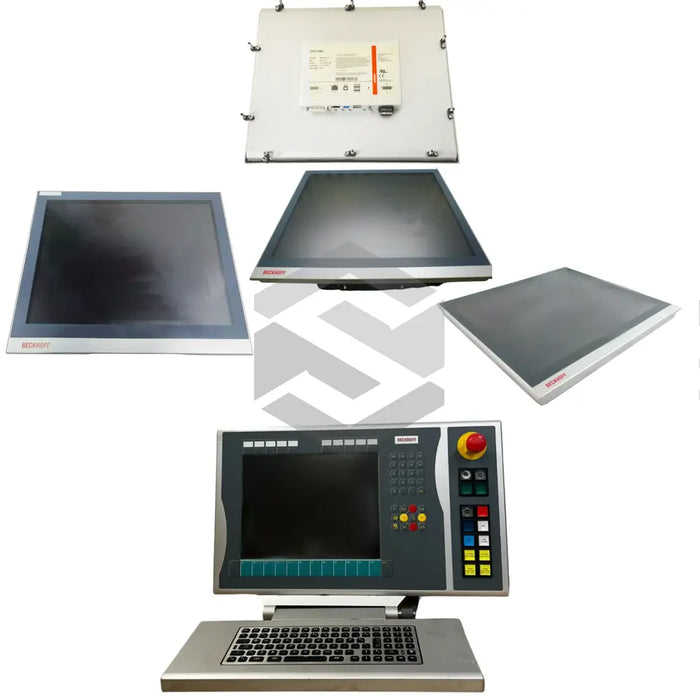

The Beckhoff CP2218-0010 Panel PC is a robust human–machine interface module in the CP Panel PC Systems series by Beckhoff, designed for seamless integration into industrial automation environments. This unit features an 18.5-inch display with a native 1366 x 768 resolution to ensure clear visualization of control processes. Built around a compact 3½-inch motherboard, the system delivers responsive interaction while maintaining a slim installation profile. The onboard memory comprises 2 GB DDR3L, providing adequate buffering for real-time data handling and graphical rendering. Operating on a 24 V DC supply voltage (-15%/+20%) and meeting IP20 protection class requirements, the CP2218-0010 is engineered for demanding factory-floor conditions.

Performance is driven by dual independent network interfaces: two RJ45 Ethernet ports (EtherCAT In/Out) ensure deterministic communication over the EtherCAT fieldbus, while pluggable screw terminals handle power distribution. With a current consumption of approx. 400 mA from the E-bus and 100 mA from the field supply (without load), the module balances low power draw with high throughput. The design supports up to 64 connectable bus terminals, allowing extensive I/O expansion and modular flexibility. The system’s dimensions (52 mm × 100 mm × 68 mm) facilitate mounting in control cabinets with limited space, and the unit weighs just approx. 160 g, minimizing structural load. Engineered for ambient operations from 0…55 °C (storage/transport: –25…85 °C), the unit sustains stable performance across temperature fluctuations.

Reliability is reinforced through international approvals—CE, UL, ATEX—ensuring compliance with safety and explosion-protected applications. The pull-out clamping lever mechanism enables tool-free mounting and swift maintenance or replacement, optimizing uptime. With a compact form factor and Protection Class IP20, the CP2218-0010 can be seamlessly integrated into distributed control architectures alongside other Beckhoff modules. Typical applications include machine control in packaging, material handling, and process automation, where precise operator feedback and robust fieldbus communication are critical. Backed by Beckhoff’s industry-leading support, the CP2218-0010 Panel PC provides a reliable, scalable platform for modern industrial automation deployments.
