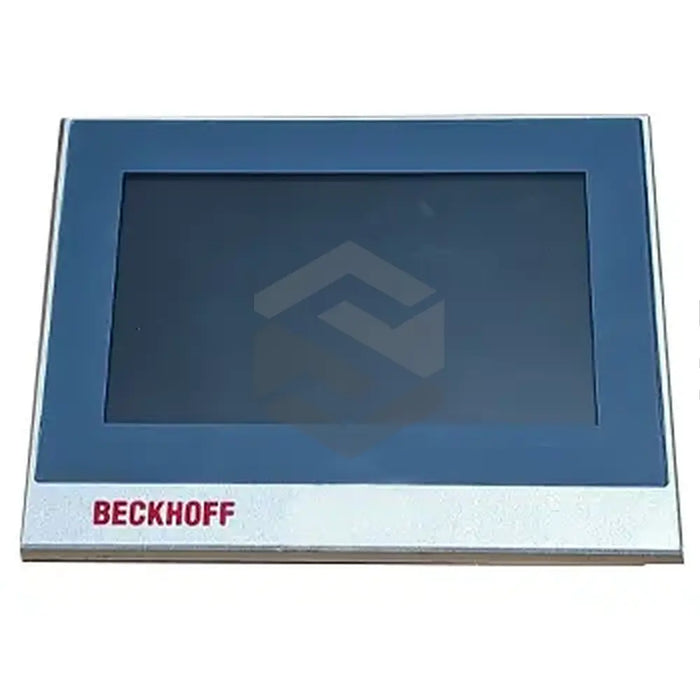

product image of a CP2607-0000

CP2607-0000

by Beckhoff
Request a quote
The Beckhoff CP2607-0000 is a Panel PC developed for machine and plant engineering uses. It weighs 1.6kg, has a supply voltage of 24V DC, and uses roughly 12W of power with a 7" display. It is equipped with multiple interfaces including a serial interface, an Ethernet port with RJ-45 connection, two USB 2.0 ports, and an EtherCAT adapter. It operates at 0 to 55 degrees Celsius and can be stored at -25 to 65 degrees Celsius. Finished with an IP 65 rating on the front and an IP 20 rating on the back for protection, it also features an easily accessible Lithium battery, aluminum housing with glass front, and TFT display. To ensure best performance, it should be installed in a shaded, well-ventilated area with 5cm free space above and below the housing. Proper grounding should be observed for optimal functionality of the touch screen.
30 Day Warranty
Technical Specifications
  • Manufacturer: Beckhoff
  • Product Code: CP2607-0000
  • Product Type: Panel PC
  • Weight: 1.6kg
  • Supply Voltage: 24V DC (20.4 – 28.8V DC)
  • Power Consumption: 12W with 7” display
  • Interfaces: Serial interface, Ethernet adapter with RJ-45 connection, two USB 2.0 interfaces, EtherCAT adapter
  • Certificate: CE certified
  • EMC Compatibility: Yes
  • Temperature Range (Storage): -25 to 65 degrees Celsius
  • Temperature Range (Operation): 0 to 55 degrees Celsius
  • Protection Class (Front): IP 65
  • Protection Class (Rear): IP 20
  • Battery Type: Lithium (Accessible from outside)
  • Housing Material: Aluminum with glass front
  • Display Type: TFT display
  • Installation Requirement: At least 5cm space above and below the housing for ventilation
  • Environmental Requirement: Dust, Moisture, and Heat-free air
  • Exposure to Sunlight: Not Recommended
  • Grounding Requirement: Required for optimal touch screen functionality
