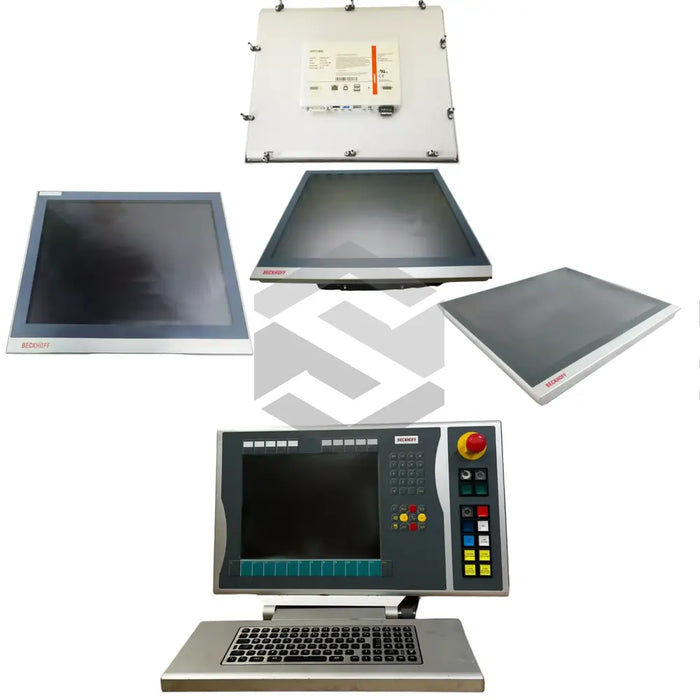

CP6201-0001-0040

The CP6201-0001-0040 is a robust built-in panel PC from Beckhoff within the CP Panel PC Systems lineup, engineered for demanding industrial environments. Featuring up to 8 cores and support for Intel® Celeron®, Core™ i3, i5, and i7 processors, this unit offers scalable performance to suit a variety of automation tasks. It provides flexible storage options including CFast card, 2½-inch hard disk, or SSD configurations, while data integrity is safeguarded by the integrated NOVRAM for fail-safe data storage. The panel PC is housed in a hardened steel-plate housing with an aluminum front and houses a TFT display with resistive single-touch technology. Designed for seamless installation into a control cabinet front, it maintains a compact footprint with only 2 cm ventilation space required.

Technical specifications highlight the CP6201-0001-0040’s comprehensive capabilities. It accommodates two independent Ethernet interfaces for reliable network communication via dedicated RJ-45 connectors supporting 10/100 Base-T LAN. Expansion is enabled through PCI and PCIe plug-in cards with two optional PCIe expansion slots for additional I/O or specialized modules. The cooling system employs speed-controlled fans with dual ball bearing, optimizing airflow and extending service life under continuous operation. Power delivery is via a 24 VDC power supply with optional UPS support, enabling an uninterruptible supply to pins 1 and 2 of the 8-pole connector.

Operational features are designed for maximum uptime and ease of use. Status LEDs provide clear feedback across seven indicators, including power status and user-defined signals, enhancing diagnostics and maintenance. The panel PC runs on Windows 10 IoT Enterprise, ensuring compatibility with modern industrial automation software and enabling secure remote management. Installation is streamlined by screwless clamping levers actuated with a No. 2.5 Allen key, while the enclosure meets fieldbus and serial COM interface requirements. Robust NOVRAM protects configuration data in the event of power loss, and the integrated uninterruptible power supply option further secures critical applications.

Integration into automated systems is facilitated by the CP6201-0001-0040’s flexible mounting and connectivity. Designed for control cabinet fronts, it can be easily retrofitted into existing production lines or new installations alongside Beckhoff I/O and drive components. With comprehensive network and expansion interfaces, it supports a wide range of modules for motion control, data acquisition, and machine vision tasks. Ideal for industries such as packaging, material handling, and machine building, this panel PC delivers reliable performance where precision and continuous operation are paramount.
