CP6901-1001-0010
by Beckhoff

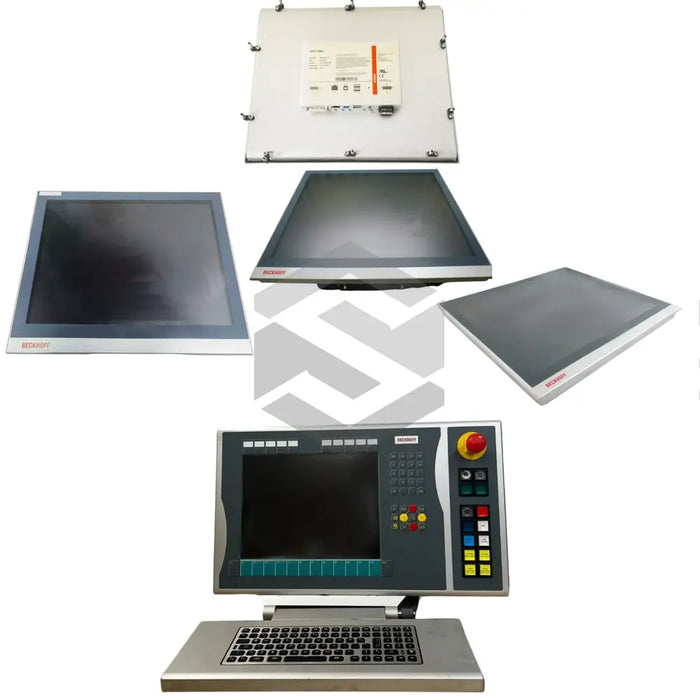

The Beckhoff CP6901-1001-0010 is a rugged built-in control panel from the CP Panel PC Systems series, designed by Beckhoff for demanding industrial automation applications. This unit features a 12-inch display in a 4:3 format offering an 800 x 600 resolution to ensure clear visualization of control interfaces. Its robust aluminum housing and front-side IP65 protection rating guarantee resistance against dust and water ingress, making it ideal for integration into machine control cabinets.
Equipped with versatile connection technology, the CP6901-1001-0010 supports DVI-E video output and USB-E 2.0 interfaces, delivering a data transmission rate of 480 Mbit/s for seamless peripheral integration. The panel offers two USB 2.0 ports and an RJ45 interface for network connectivity. It can be installed using pull-out clamping levers, simplifying assembly and maintenance. The maximum cable length to the PC is 50 meters, ensuring flexibility in distributed control systems. An optional touch screen enhances user interaction, allowing operators to navigate complex HMI applications with precision.
The CP6901-1001-0010 operates reliably within a temperature range of 0 to 55°C and requires a standard 24 V DC power supply, enabling compatibility with most automation power architectures. Rear-side IP20 protection complements the front seal, safeguarding internal electronics from large solid objects. The aluminum construction contributes to efficient heat dissipation, improving long-term reliability. By combining high ingress protection, extended cable reach, and industrial-grade components, this Beckhoff panel PC delivers enhanced uptime, simplified installation, and precise control—key benefits for plant-wide efficiency and productivity in industrial environments.
