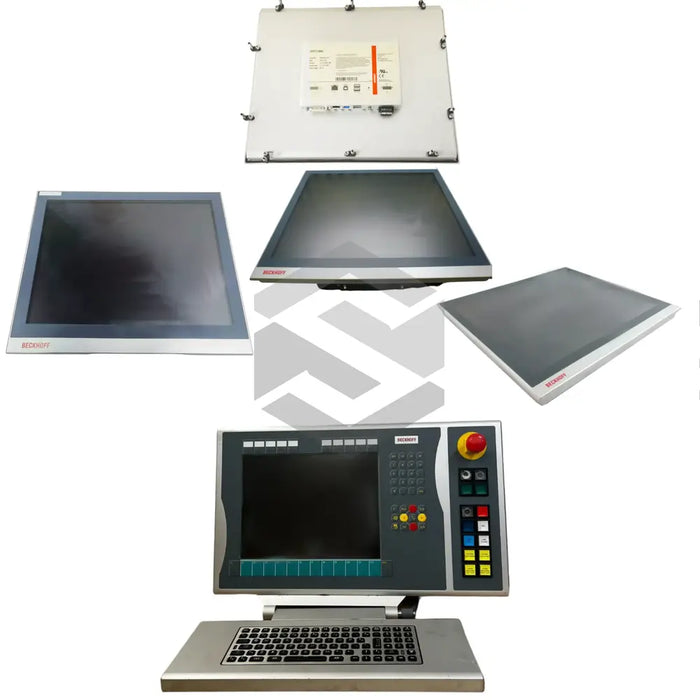

CP7031-1003-0010
by Beckhoff
The Beckhoff CP7031-1003-0010 is a robust humanmachine interface (HMI) solution from the CP Panel PC Systems series by Beckhoff. Featuring a bright 12 in TFT display with replaceable fluorescent backlight, the unit ensures clear operator interaction in industrial automation environments. With a compliance of IP65 protection on the control panel front, it guards against dust and water ingress. Designed for integration into standard cabinet openings, the panel’s slim housing profile (406 mm × 370.2 mm × 27.5 mm) streamlines retrofits and new installations.
This panel PC offers a generous active display area of 379.8 mm × 342.6 mm to maximize visible content, reducing operator navigation steps. Operating reliably across a temperature range of 0 to 55 °C, and storing safely from –20 to +65 °C, it thrives in typical plant conditions and during transport. The interface combines a BNC connector with CP-Link for both data and power, eliminating the need for separate power adapters. Vibration resistance spans 10–58 Hz at 0.035 mm and 58–500 Hz at 0.5 G, while impact tolerance of 5 G for 30 ms ensures mechanical robustness.
Built to withstand challenging EMI environments, the CP7031-1003-0010 meets EN 61000-6-2 immunity and EN 61000-6-4 emission standards, with additional approvals of FCC Class A and Canadian Radio Interference Regulations. Operating humidity up to 95% (non-condensing) further enhances reliability in high-moisture areas. The SVGA resolution of 800 × 600 pixels at 350 cd/m² delivers crisp visuals for critical monitoring tasks. In industrial automation applications, this panel PC brings durability, simplified wiring, and compliance confidence, ensuring seamless operation and minimal downtime in demanding production environments.
