CP7032-0002

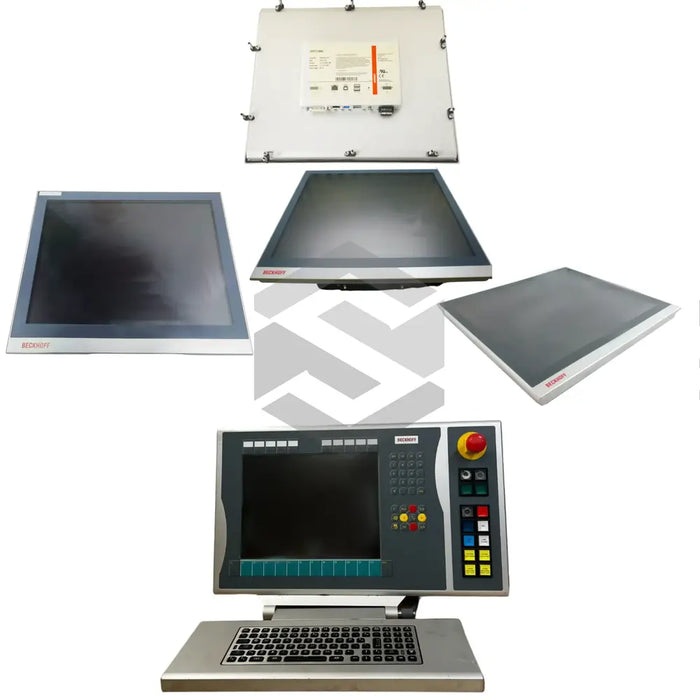

The Beckhoff CP7032-0002 is an industrial control panel in the CP Panel PC Systems series, designed to deliver reliable human-machine interaction in demanding automation environments. Manufactured by Beckhoff, this model features a large 15 inch TFT display, an alphanumeric keypad and integrated mouse pad for intuitive operation. Its robust aluminum housing and secure four-hole mounting design ensure stable installation on plant floors and in machine enclosures. The CP7032-0002 provides operators with real-time process visualization and control capabilities, making it suitable for applications in plant and machine engineering. It is certified by CE, comes with pre-loaded firmware, and is not intended for use in explosive atmospheres.

The CP7032-0002 presents a comprehensive set of technical specifications: Type: Control panel, Display Size: 15 inch TFT, Interface: CP-link with two male BNC ports, Keyboard: Alphanumeric, Mouse Pad: Yes, Protection Rating (Panel): IP65, Protection Rating (Connector Plug): IP54, Operating Temperature: 0 to 55 °C, Transport/Storage Temperature: –20 to 65 °C, Maximum Relative Humidity: ≤ 95%, Dimensions: 483 × 410 × 28.5 mm, and Maximum Cable Length: 100 m. CP-link port A handles data transmission, while port B supplies power to the device. A protective earth connection point on the rear panel ensures proper grounding and safety compliance.

Operational features of the Beckhoff CP7032-0002 emphasize durability and maintainability. The display may exhibit pixel errors without constituting a defect, reducing unnecessary service calls. Fluorescent display lamps are user-replaceable by qualified technicians, extending the service life of the unit. The human-factor–optimized alphanumeric keypad must only be actuated with fingertip pressure to prevent key mechanism damage. With its IP65-rated front, the panel resists dust ingress and water jets, while the plug’s IP54 rating safeguards against splashes during operation.

System integration for the CP7032-0002 is streamlined through its native CP-link interface, enabling daisy-chain connection of multiple Beckhoff devices. The unit communicates seamlessly with Beckhoff Control Technologies and other standard automation controllers, supporting real-time process data exchange. Its CE certification and integrated grounding point facilitate compliance with industrial safety standards. Ideal target applications include factory automation, material handling systems, packaging machinery, and process control installations where reliable operator interfaces are critical.
