CP7202-0001-0030
by Beckhoff

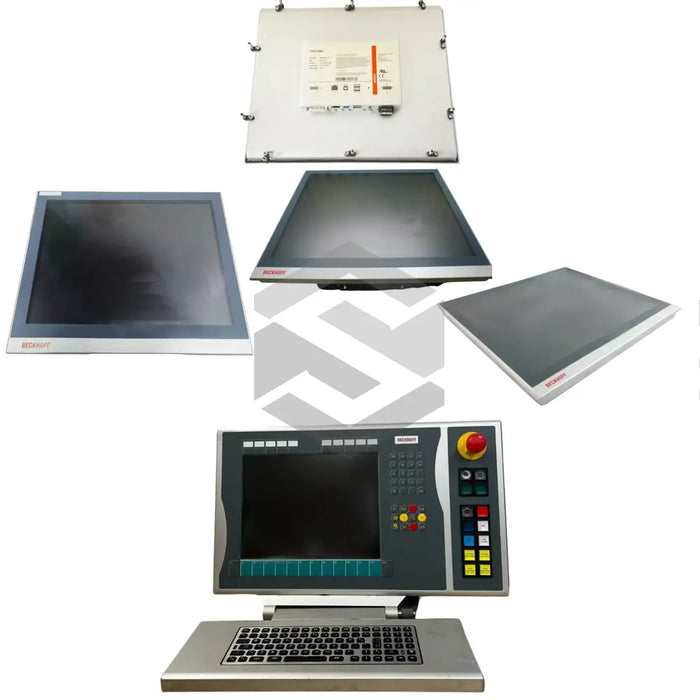

The CP7202-0001-0030 from Beckhoff is a robust industrial panel PC within the CP Panel PC Systems family, featuring 12-, 15-, or 19-inch LC display options to suit varied visualization requirements. Powered by an Intel Core i3/i5/i7 processor, this compact unit delivers reliable computing performance in harsh environments. Encased in a compact aluminum housing and weighing only 3.3kg, it fits seamlessly into space-constrained control cabinets or operator stations. The device operates with a standard 24 V power supply, ensuring compatibility with common industrial power networks.
Equipped with a 3½-inch Beckhoff Motherboard, the CP7202-0001-0030 supports flexible Storage Options—including one or two CFast cards or up to two HDDs/SSDs—backed by an on-board SATA RAID 1 controller for continuous data availability. Connectivity is comprehensive, featuring 6 IP65 connectors plus Ethernet and optional USB interfaces for secure signal and power distribution. The integrated Control System leverages EtherCAT technology with two independent Ethernet interfaces, enabling real-time deterministic communication. Standard Battery Option for the system clock ensures uninterrupted timekeeping, while the unit’s Power Supply can be supplemented with an optional UPS to maintain uptime during voltage fluctuations.
Operational reliability is guaranteed by a Cooling Method of cooling ribs assisted by two internal fans, preventing thermal overload in demanding applications. The Housing Material choice of rugged aluminum offers superior mechanical protection and electromagnetic shielding. User interaction is enhanced through selectable Touch Options—from capacitive touch screen to touch pad—and various Keyboard Options for non-touch operation. Maintenance is simplified by the included Mounting arm with rotatable and tiltable adapter, allowing ergonomic positioning without additional brackets. The panel’s weight of 3.3kg minimizes load on mounting structures and facilitates easy installation or relocation.
Seamless integration into industrial automation networks is facilitated by the unit’s native EtherCAT support and multiple Ethernet ports, allowing direct connection to distributed I/O and motion control systems. The panel PC’s IP65-rated connectors ensure dust and water resistance at the interface level, making it suitable for machine tool, packaging, and process control environments. With its standardized form factor, rich I/O palette, and high-performance computing platform, the CP7202-0001-0030 excels in HMI applications, SCADA front-ends, and edge computing tasks across diverse sectors.
